Core:

Expedition

Site

Hole

Core

Gear

Type

Top Depth (m)

Drilled Length

Bottom Depth

MCD Offset

Recovery

Recovery(%)

Oriented

Sections

Core Catcher

Curator

IGSN

Comments

BCDP

7

A

20

RIG

R

389,63

3,05

392,68

0

2,93

96,07

7

no

RE

BGRB5023RCY1001

Sections:

Section	Section Length	Curated Length	Top Depth (m)	Bottom Depth (m)	Curator	CC	MCD Top	Box	Slot	Position	IGSN	Comments
1	0,11	0,11	389,63	389,74		no	389,63	18	1	M	BGRB5023RSY3001
2	0,56	0,56	389,74	390,3		no	389,74	18	2	M	BGRB5023RSZ3001
3	0,54	0,54	390,3	390,84		no	390,3	18	3	M	BGRB5023RS04001
4	0,38	0,38	390,74	391,12		no	390,74	18	4	M	BGRB5023RS14001
5	0,56	0,56	391,36	391,92		no	391,36	18	5	B	BGRB5023RS24001
6	0,46	0,46	391,92	392,38		no	391,92	19	1	T	BGRB5023RS34001
7	0,09	0,09	392,52	392,61		no	392,52	19	2	M	BGRB5023RS44001

Measurements, descriptions and images:

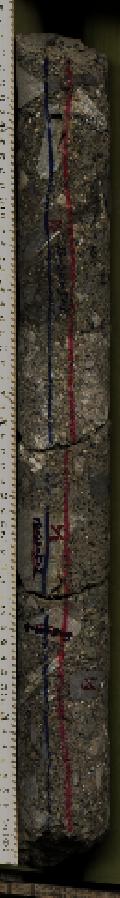

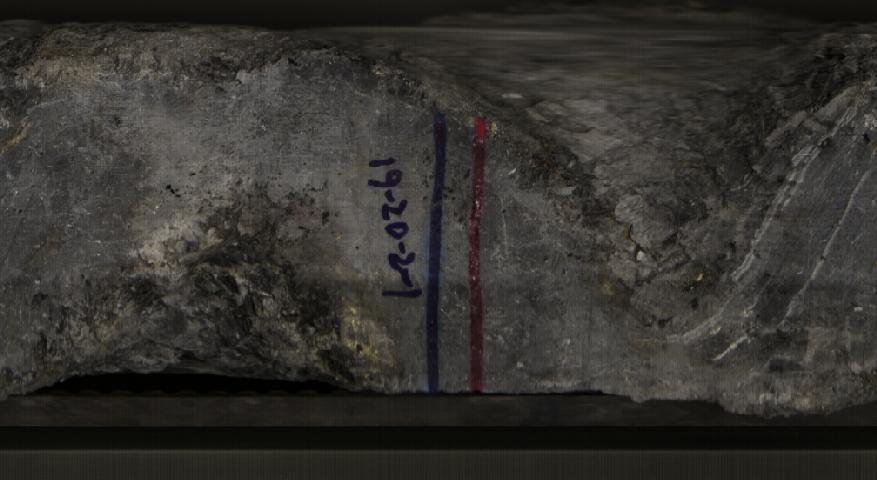

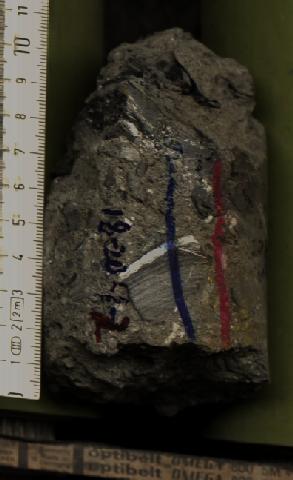

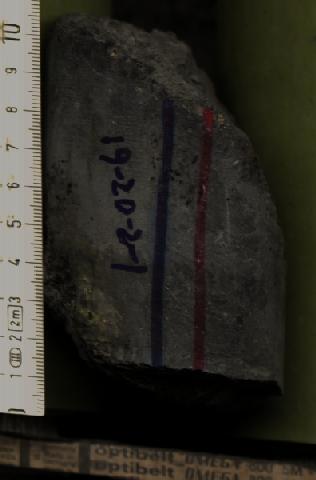

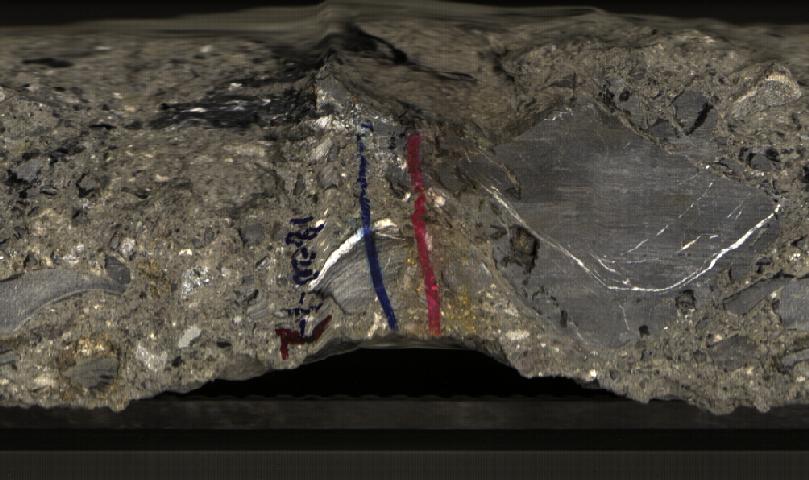

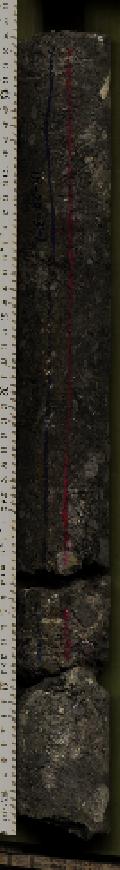

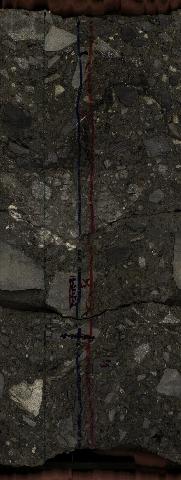

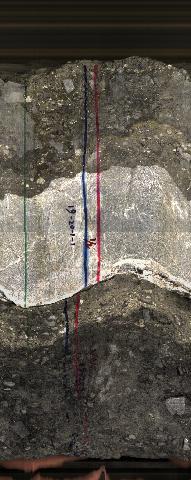

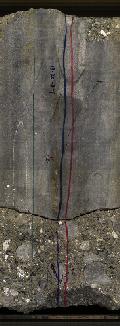

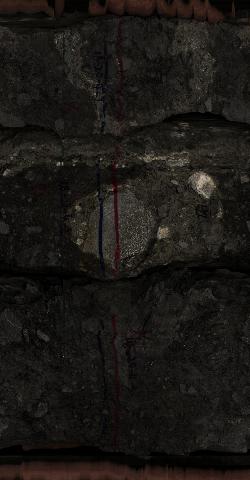

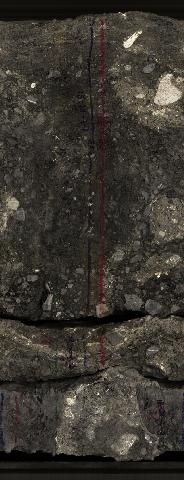

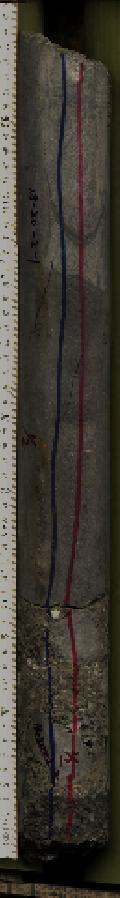

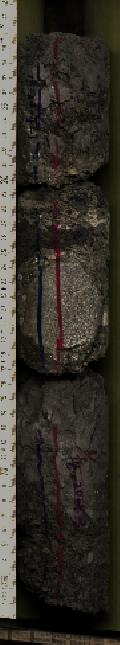

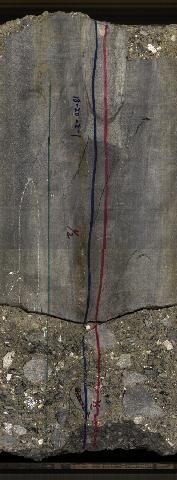

Section	MSCL-Meas.	Spectro-Meas.	XRF-Light	XRF-Medium	XRF-Heavy	Section Desc.	VCD-File	Thin Sections	360° Scan	Slabbed Scan
1									X
1									X
2									X
2									X
3									X
3									X
4									X
4									X
5									X
5									X
6									X
7									X
7									X

Samples:

Section	Half	Type	Top (cm)	Bottom (cm)	Top Depth (m)	Top MCD (m)	Volume (cc)	Request	IGSN	Sample	Comments
2	W	----	15	32	389,89	389,89	0	BER9999	BGRB5023RXR4001	171	magnetic studies, hydrothermal alteration
2	W	----	27	35	390,01	390,01	0	BER9999	BGRB5023RX45001	184	natural remanent magnetisation, desitiy, P-wave velocity
2	W	----	45	53	390,19	390,19	0	BER9999	BGRB5023RXT4001	173	petrophysical investigations (electrical conductivity, ultrasonic, porosity, permeability)
2	W	----	50	55	390,24	390,24	0	BER9999	BGRB5023RXU4001	174
2	W	----	50	60	390,24	390,24	0	BER9999	BGRB5023RXV4001	175	magnetic studies, hydrothermal alteration
2	W	----	62	65	390,36	390,36	0	BER9999	BGRB5023RXS4001	172	geophysical measurements
2	W	----	90	97	390,64	390,64	0	BER9999	BGRB5023RXW4001	176	XRF, INAA, thin sections (Louise Coney)
3	W	----	110	115	391,4	391,4	0	BER9999	BGRB5023RXX4001	177	light element geochemistry
4	W	----	93	71	391,67	391,67	0	BER9999	BGRB5023RXY4001	178	thin sections (Sabine Lütke)
5	W	----	7	3	391,43	391,43	0	BER9999	BGRB5023RX05001	180	impact cratering processes, projectile identification, deformation studies
5	W	----	52	46	391,88	391,88	0	BER9999	BGRB5023RXZ4001	179	DS,SEM,TIMS,XRD
6	W	----	8	19	392	392	0	BER9999	BGRB5023RX15001	181	impact cratering processes, projectile identification, deformation studies
6	W	----	20	25	392,12	392,12	0	BER9999	BGRB5023RX25001	182
6	W	----	51	44	392,43	392,43	0	BER9999	BGRB5023RX35001	183	thin sections (Sabine Lütke)
