Core:

ExpeditionSiteHoleCoreGearTypeTop Depth (m)Drilled LengthBottom DepthMCD OffsetRecoveryRecovery(%)OrientedSectionsCore CatcherCuratorIGSNComments
BCDP 7 A 17 RIG R 380,49 3,05 383,54 0 3,05 100 8 no RE BGRB5023RCV1001

Sections:

SectionSection LengthCurated LengthTop Depth (m)Bottom Depth (m)CuratorCCMCD TopBoxSlotPositionIGSNComments

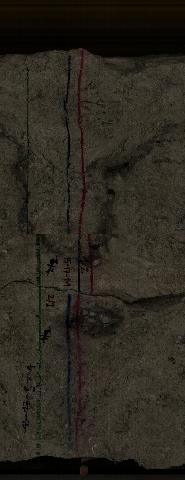

1 0,58 0,58 380,49 381,07 no 380,49 14 5 B BGRB5023RSD3001

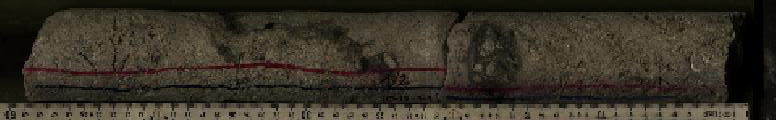

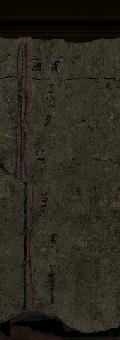

2 0,48 0,48 381,19 381,67 no 381,19 15 1 T BGRB5023RSE3001

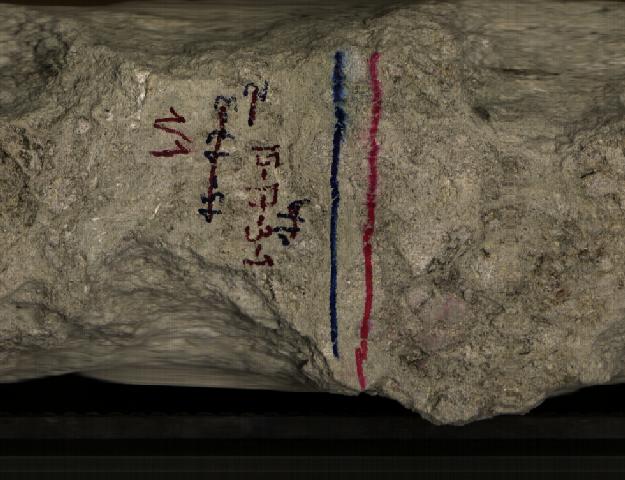

3 0,53 0,53 381,69 382,22 no 381,69 15 2 M BGRB5023RSF3001
4 0,14 0,14 382,29 382,43 no 382,29 15 3 M BGRB5023RSG3001

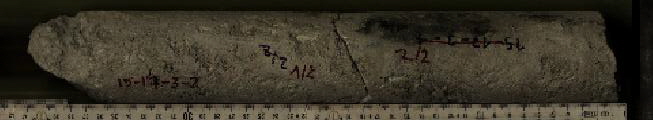

5 0,41 0,41 382,5 382,91 no 382,5 15 3 M BGRB5023RSH3001

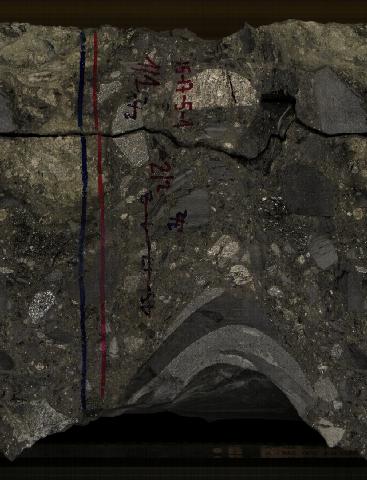

6 0,32 0,32 382,64 382,96 no 382,64 15 4 M BGRB5023RSI3001

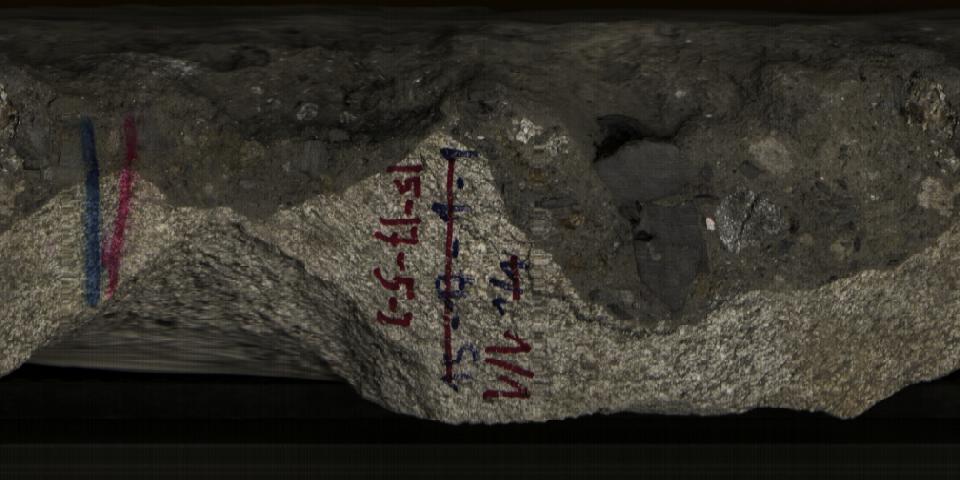

7 0,25 0,25 382,94 383,19 no 382,94 15 5 M BGRB5023RSJ3001

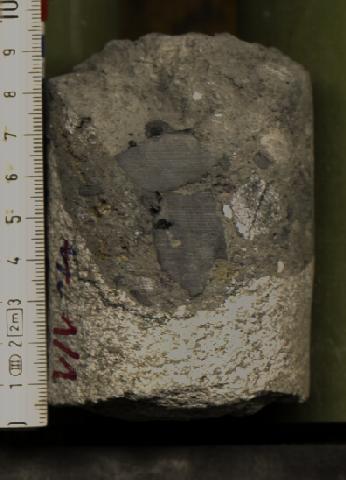

8 0,1 0,1 383,4 383,5 no 383,4 15 5 B BGRB5023RSK3001

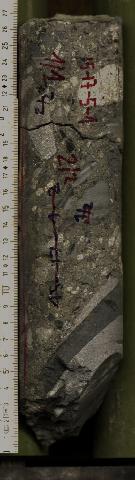

Measurements, descriptions and images:

SectionMSCL-Meas.Spectro-Meas.XRF-LightXRF-MediumXRF-HeavySection Desc.VCD-FileThin Sections360° ScanSlabbed Scan
1 X
2 X X
3 X X
4 X X
5 X X
6 X X
7 X X
8 X X

Samples:

SectionHalfTypeTop (cm)Bottom (cm)Top Depth (m)Top MCD (m)Volume (cc)RequestIGSNSampleComments
1 W ---- 3 14 380,52 380,52 0 BER9999 BGRB5023RXV3001 139 magnetic studies, hydrothermal alteration
1 W ---- 15 36 380,64 380,64 0 BER9999 BGRB5023RXU3001 138 magnetic studies, hydrothermal alteration
2 W ---- 15 31 381,34 381,34 0 BER9999 BGRB5023RXW3001 140 thin sections (Sabine Lütke)
3 W ---- 62 65 382,31 382,31 0 BER9999 BGRB5023RXX3001 141 geophysical measurements
6 W ---- 60 55 383,24 383,24 0 BER9999 BGRB5023RXY3001 142 XRF, INAA, thin sections (Louise Coney)
7 W ---- 40 30 383,34 383,34 0 BER9999 BGRB5023RXZ3001 143 impact cratering processes, projectile identification, deformation studies
8 W ---- 5 0 383,45 383,45 0 BER9999 BGRB5023RX34001 147
