Core:

ExpeditionSiteHoleCoreGearTypeTop Depth (m)Drilled LengthBottom DepthMCD OffsetRecoveryRecovery(%)OrientedSectionsCore CatcherCuratorIGSNComments
ELGYGY 1 C 178 RIG Q 512,16 2,14 514,3 0 2,19 102,336448598131 no 1 no NN BGRB5011RCZ4001 2.14m reamed, 2.19m recovery in the splits, greenish-gray volcanites, box 40

Sections:

SectionSection LengthCurated LengthTop Depth (m)Bottom Depth (m)CuratorCCMCD TopBoxSlotPositionIGSNComments

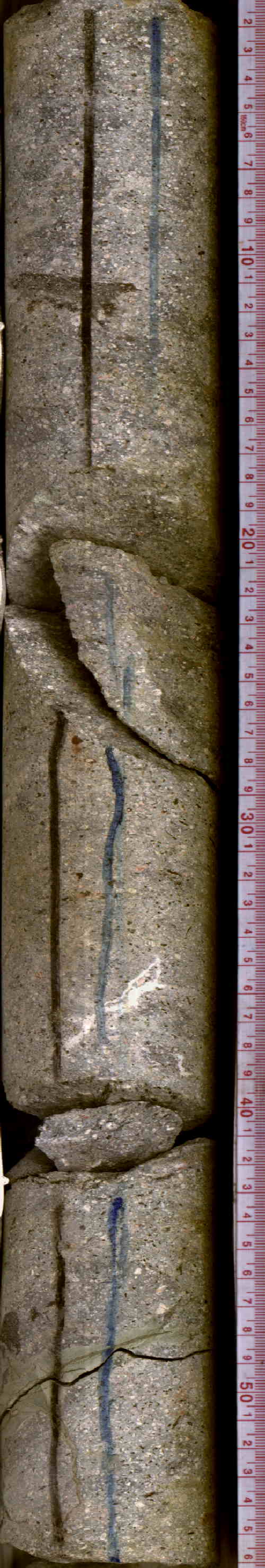

1 0,53 0,53 512,16 512,69 NN no 512,16 40 1 T BGRB5011RSGM001

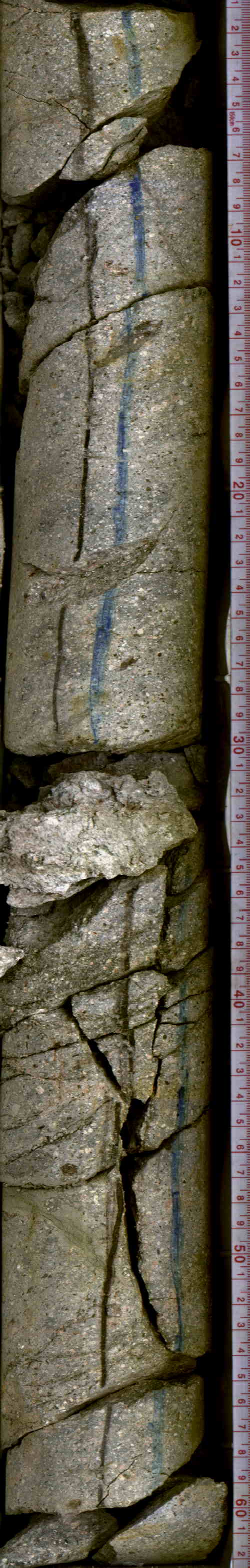

2 0,57 0,57 512,69 513,26 NN no 512,69 40 2 M BGRB5011RSHM001

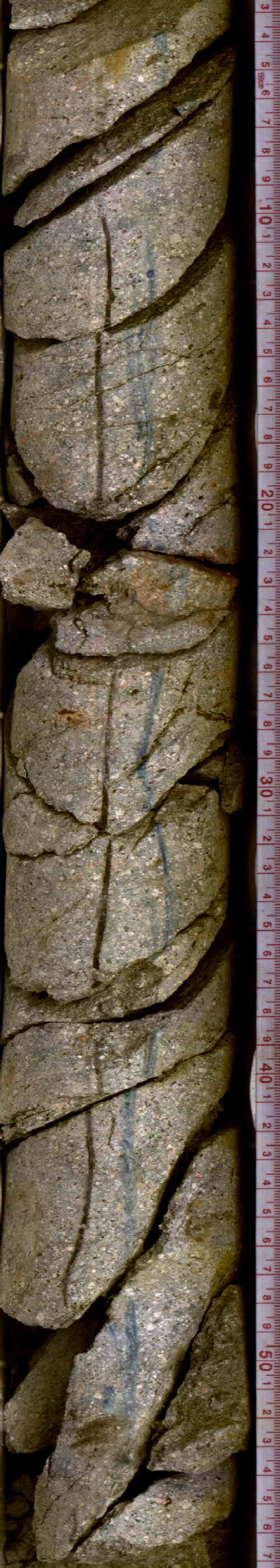

3 0,53 0,53 513,26 513,79 NN no 513,26 40 3 M BGRB5011RSIM001

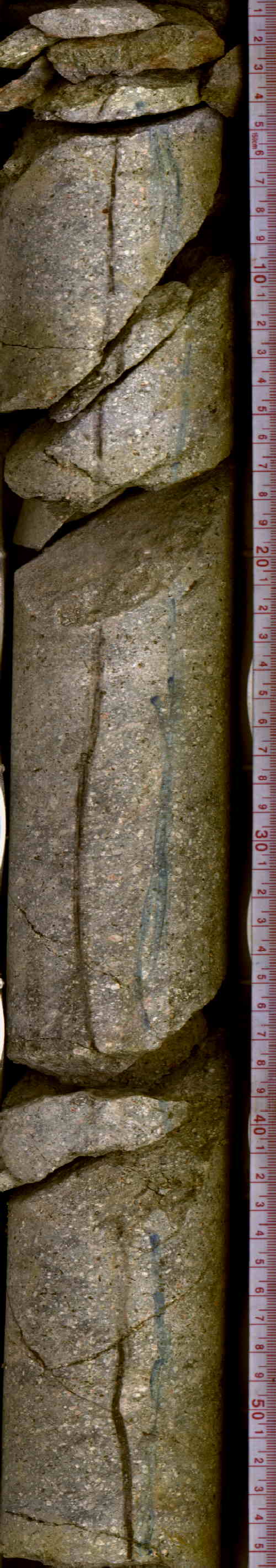

4 0,53 0,53 513,79 514,32 NN no 513,79 40 4 M BGRB5011RSJM001

Measurements, descriptions and images:

SectionMSCL-Meas.Spectro-Meas.XRF-LightXRF-MediumXRF-HeavySection Desc.VCD-FileThin Sections360° ScanSlabbed Scan
1 X X X
2 X X X
3 X X X
4 X X X

Samples:

SectionHalfTypeTop (cm)Bottom (cm)Top Depth (m)Top MCD (m)Volume (cc)RequestIGSNSampleComments
1 W --- 0 20 512,16 512,16 65 MSP0001 BGRB5011RXC8001 1095 thin section /chemical analysis, destructive
1 W --- 32 35 512,48 512,48 65 MSP0004 BGRB5011RXI3001 921 half core for physical properties, sample will be drilled, but not destroyed
1 W --- 49 51 512,65 512,65 65 MSP0001 BGRB5011RXD8001 1096 thin section /chemical analysis, destructive, remains in storage (BGR)
1 W --- 50 52 512,66 512,66 65 MSP0002 BGRB5011RXUD001 1293 green layered layers
4 W --- 51 53 514,3 514,3 65 MSP0002 BGRB5011RXVD001 1294 melt rich breccia
