Core:

ExpeditionSiteHoleCoreGearTypeTop Depth (m)Drilled LengthBottom DepthMCD OffsetRecoveryRecovery(%)OrientedSectionsCore CatcherCuratorIGSNComments
ELGYGY 1 C 174 RIG Q 502,31 2,4 504,71 0 2,33 97,0833333333333 no 2 no NN BGRB5011RCV4001 Greenish-gray volcanites, box 36-37

Sections:

SectionSection LengthCurated LengthTop Depth (m)Bottom Depth (m)CuratorCCMCD TopBoxSlotPositionIGSNComments

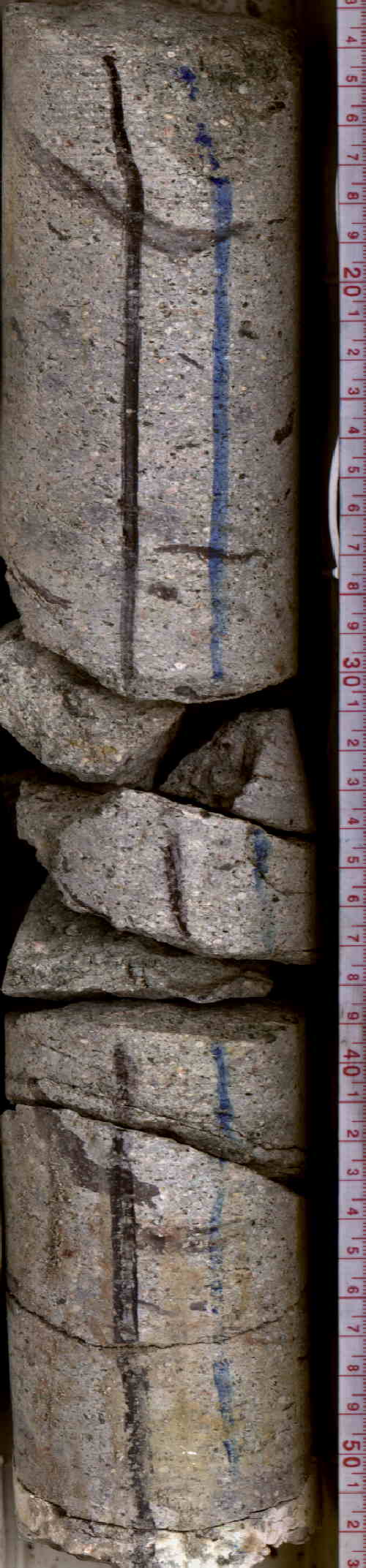

1 0,35 0,35 502,31 502,66 NN no 502,31 36 3 M BGRB5011RSUL001

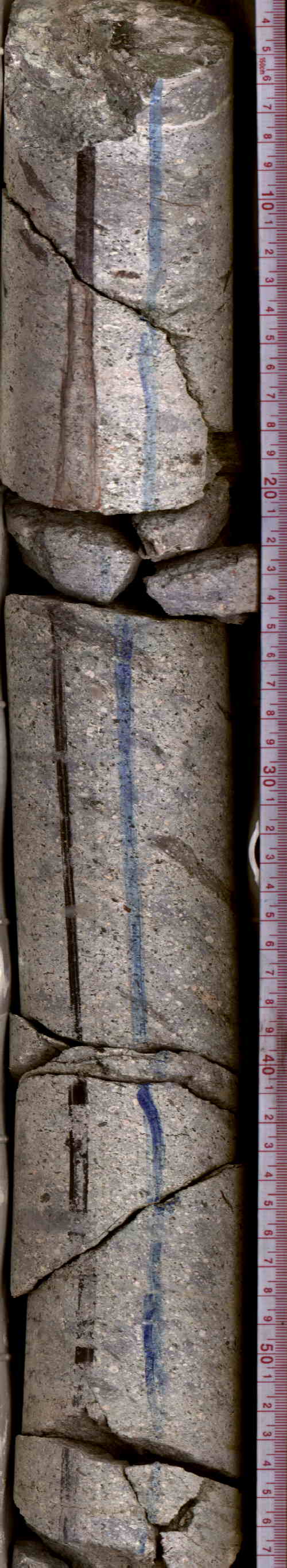

2 0,5 0,5 502,66 503,16 NN no 502,66 36 4 M BGRB5011RSVL001

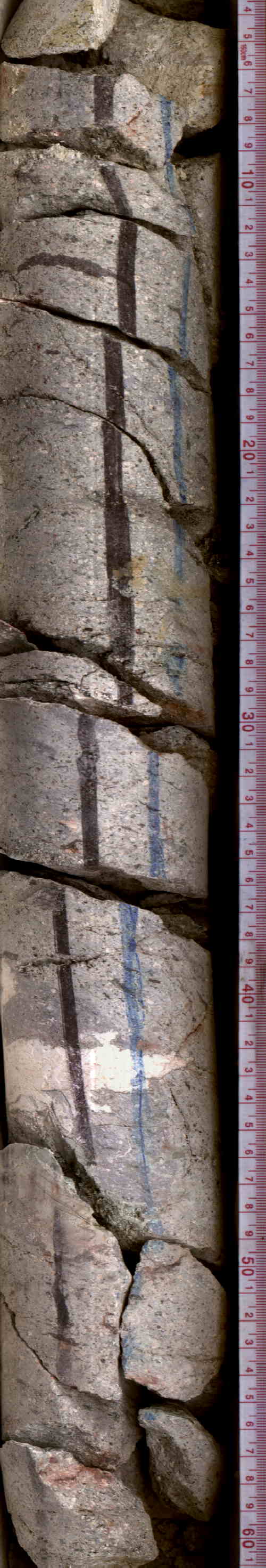

3 0,56 0,56 503,16 503,72 NN no 503,16 36 5 B BGRB5011RSWL001
4 0,52 0,52 503,72 504,24 NN no 503,72 37 1 T BGRB5011RSXL001

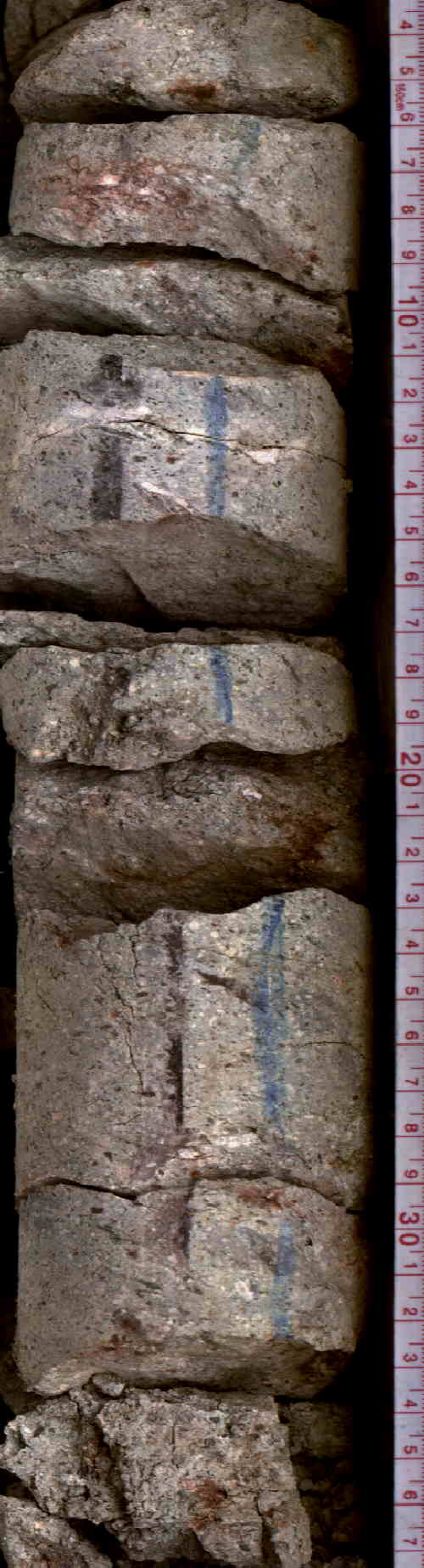

5 0,39 0,39 504,24 504,63 NN no 504,24 37 2 M BGRB5011RSYL001

Measurements, descriptions and images:

SectionMSCL-Meas.Spectro-Meas.XRF-LightXRF-MediumXRF-HeavySection Desc.VCD-FileThin Sections360° ScanSlabbed Scan
1 X X X
2 X X X
3 X X X
4 X X X
5 X X X X

Samples:

SectionHalfTypeTop (cm)Bottom (cm)Top Depth (m)Top MCD (m)Volume (cc)RequestIGSNSampleComments
1 W --- 0 17 502,31 502,31 65 MSP0001 BGRB5011RX18001 1084 thin section /chemical analysis, destructive
1 W --- 21 35 502,52 502,52 65 MSP0001 BGRB5011RX38001 1086 thin section /chemical analysis, destructive, remains in storage (BGR)
1 W --- 33 35 502,64 502,64 65 MSP0001 BGRB5011RX28001 1085 thin section /chemical analysis, destructive, remains in storage (BGR)
3 W --- 40 43 503,56 503,56 65 MSP0002 BGRB5011RXLD001 1284 large white vein + melt at the boundaries
3 W --- 44 47 503,6 503,6 65 MSP0001 BGRB5011RX48001 1087 thin section /chemical analysis, destructive
4 W --- 19 23 503,91 503,91 65 MSP0001 BGRB5011RX58001 1088 thin section /chemical analysis, destructive, remains in storage (BGR)
4 W --- 26 28 503,98 503,98 65 MSP0002 BGRB5011RXMD001 1285 white vein + melt
