Core:

ExpeditionSiteHoleCoreGearTypeTop Depth (m)Drilled LengthBottom DepthMCD OffsetRecoveryRecovery(%)OrientedSectionsCore CatcherCuratorIGSNComments
ELGYGY 1 C 170 RIG Q 491,15 3 494,15 0 2,97 99 yes 3 yes NN BGRB5011RCR4001 Around 1.3 torque dropped likely a void, mostly greenish-gray volcanites a softer green clay?? interval 154 cm from the top ss made box 32 and 33

Sections:

SectionSection LengthCurated LengthTop Depth (m)Bottom Depth (m)CuratorCCMCD TopBoxSlotPositionIGSNComments

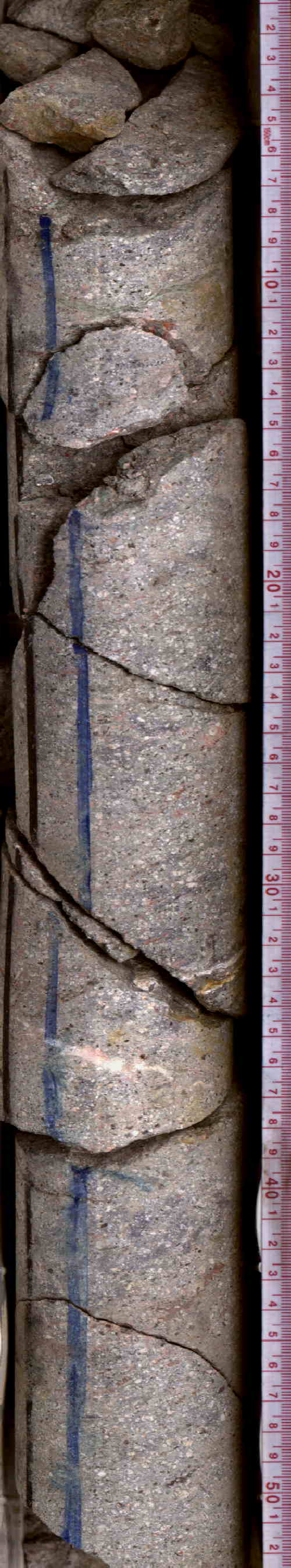

1 0,45 0,45 491,15 491,6 NN no 491,15 32 3 M BGRB5011RS4L001

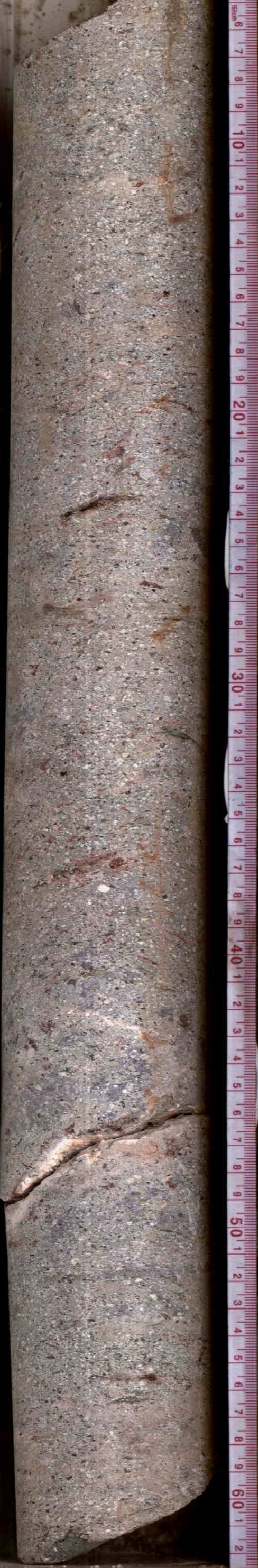

2 0,53 0,53 491,6 492,13 NN no 491,6 32 4 M BGRB5011RS5L001

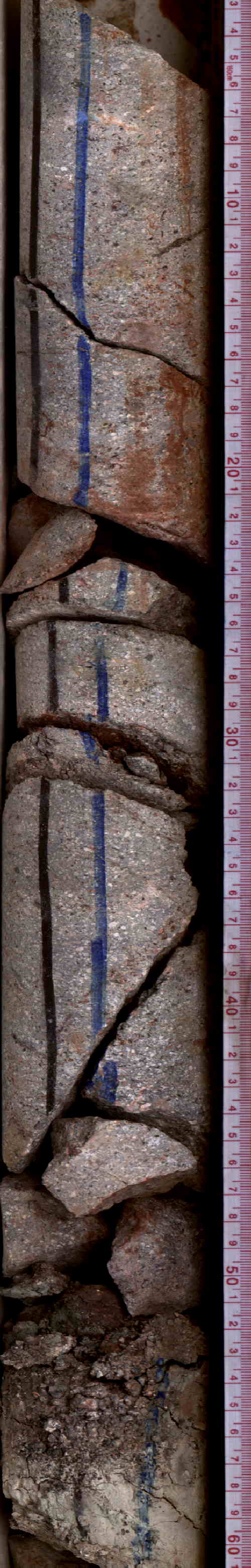

3 0,55 0,55 492,13 492,68 NN no 492,13 32 5 B BGRB5011RS6L001

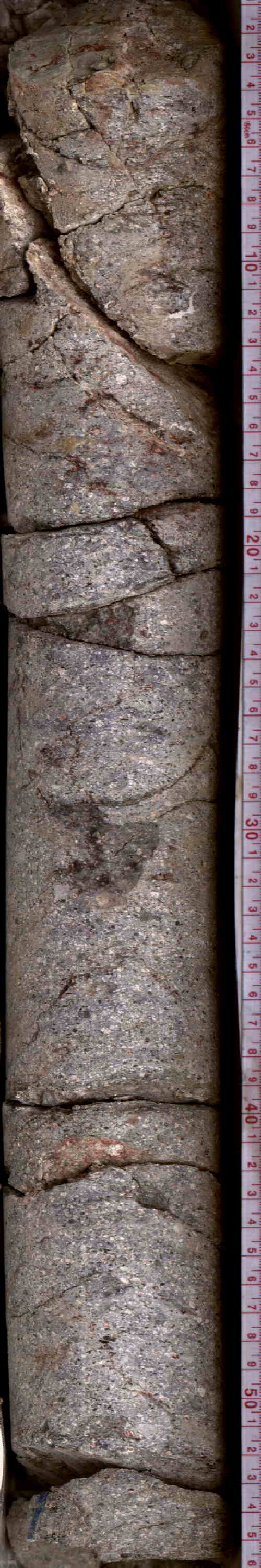

4 0,5 0,5 492,68 493,18 NN no 492,68 33 1 T BGRB5011RS7L001

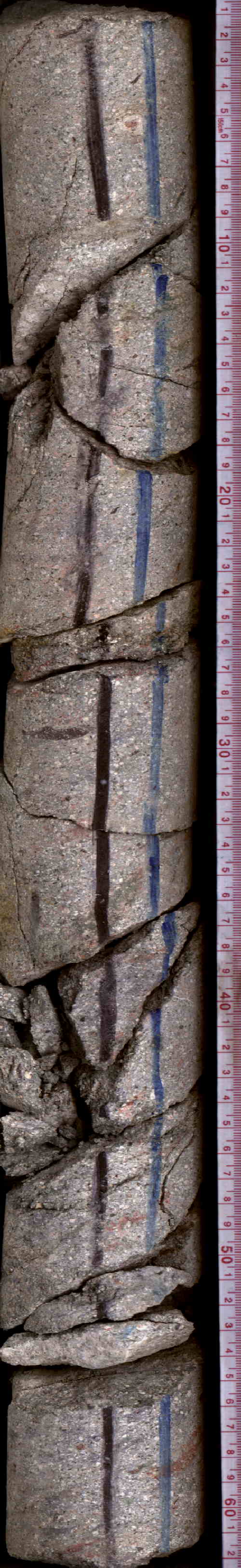

5 0,58 0,58 493,18 493,76 NN no 493,18 33 2 M BGRB5011RS8L001

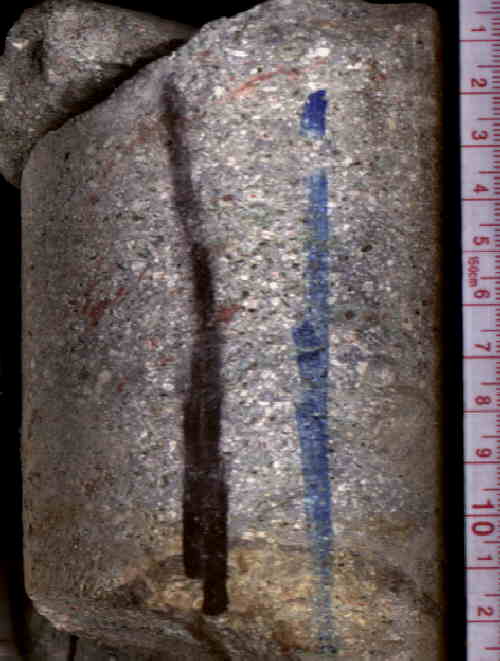

6 0,13 0,13 493,76 493,89 NN no 493,76 33 3 M BGRB5011RS9L001

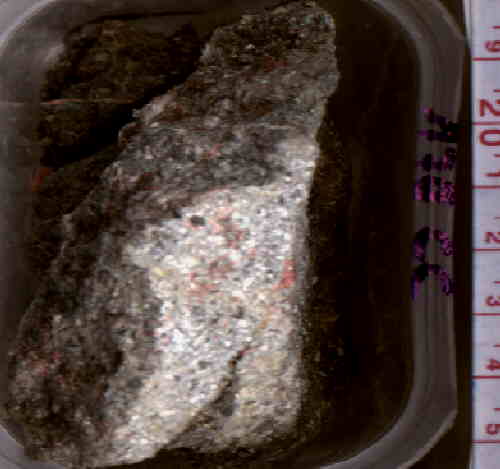

7 0,05 0,05 493,89 493,94 NN yes 493,89 33 3 M BGRB5011RSAL001

Measurements, descriptions and images:

SectionMSCL-Meas.Spectro-Meas.XRF-LightXRF-MediumXRF-HeavySection Desc.VCD-FileThin Sections360° ScanSlabbed Scan
1 X X X
2 X X X
3 X X X
4 X X X
5 X X X
6 X X X
7 X X X

Samples:

SectionHalfTypeTop (cm)Bottom (cm)Top Depth (m)Top MCD (m)Volume (cc)RequestIGSNSampleComments
1 W --- 9 11 491,24 491,24 65 MSP0002 BGRB5011RX7D001 1270 green thin vein
2 W --- 0 10 491,6 491,6 65 MSP0001 BGRB5011RXT7001 1076 thin section /chemical analysis, destructive
2 W --- 25 28 491,85 491,85 65 MSP0006 BGRB5011RXB0001 806 heat flux and conductivity, non destructive; 3x3x3 cm if possible
2 W --- 32 35 491,92 491,92 65 MSP0002 BGRB5011RX8D001 1271 green melt clast + pink veins
3 W --- 38 41 492,51 492,51 65 MSP0004 BGRB5011RXI1001 849 half core for physical properties, sample will be drilled, but not destroyed, high priority
3 W --- 52 55 492,65 492,65 65 MSP0002 BGRB5011RX9D001 1272 clay layer
5 W --- 0 8 493,18 493,18 65 MSP0001 BGRB5011RXU7001 1077 thin section /chemical analysis, destructive, remains in storage (BGR)
5 W --- 33 36 493,51 493,51 65 MSP0004 BGRB5011RXA3001 913 half core for physical properties, sample will be drilled, but not destroyed
6 W --- 12 13 493,88 493,88 65 MSP0002 BGRB5011RXAD001 1273
7 W --- 0 4 493,89 493,89 65 MSP0001 BGRB5011RXV7001 1078 thin section /chemical analysis, destructive, remains in storage (BGR)
