Core:

ExpeditionSiteHoleCoreGearTypeTop Depth (m)Drilled LengthBottom DepthMCD OffsetRecoveryRecovery(%)OrientedSectionsCore CatcherCuratorIGSNComments
ELGYGY 1 C 169 RIG Q 488,15 3 491,15 0 3,03 101 yes 3 yes NN BGRB5011RCQ4001 Recovery 2.87m, box 31 and 32

Sections:

SectionSection LengthCurated LengthTop Depth (m)Bottom Depth (m)CuratorCCMCD TopBoxSlotPositionIGSNComments

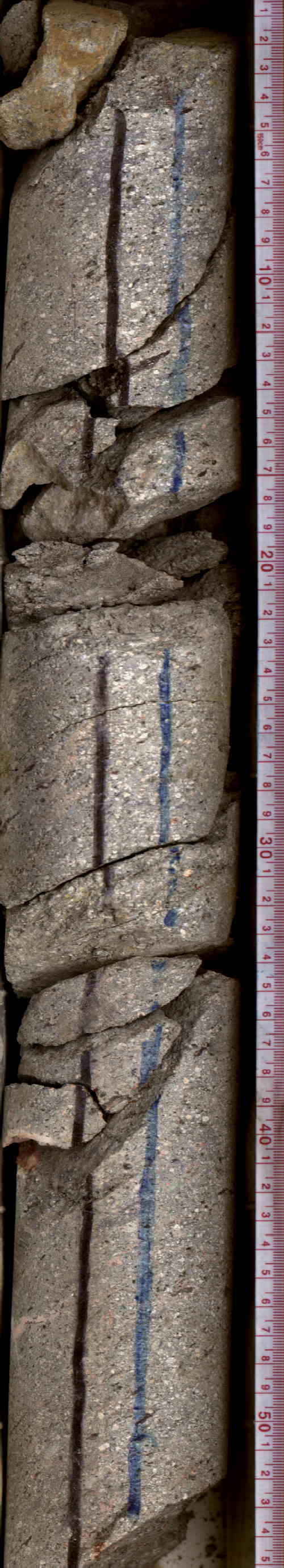

1 0,5 0,5 488,15 488,65 NN no 488,15 31 2 M BGRB5011RSXK001 greenish-gray volcanites

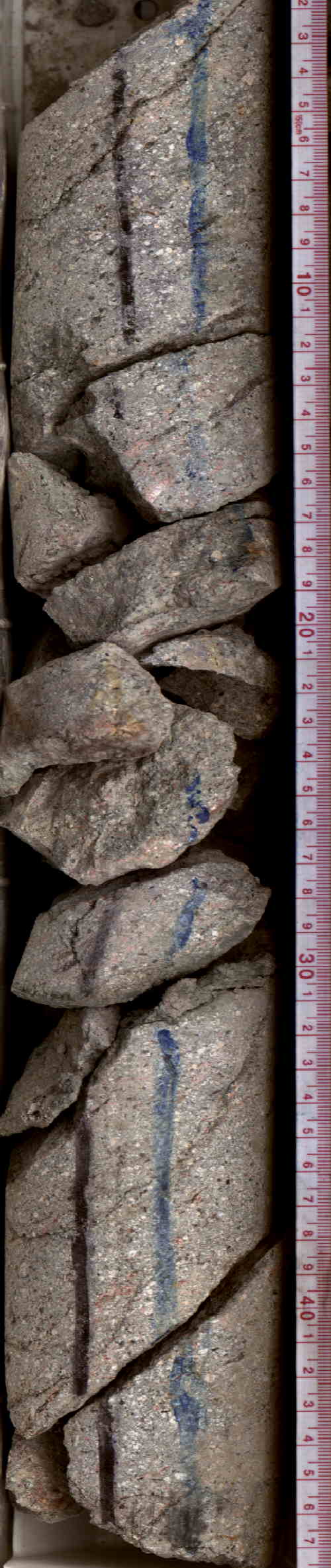

2 0,45 0,45 488,65 489,1 NN no 488,65 31 3 M BGRB5011RSYK001

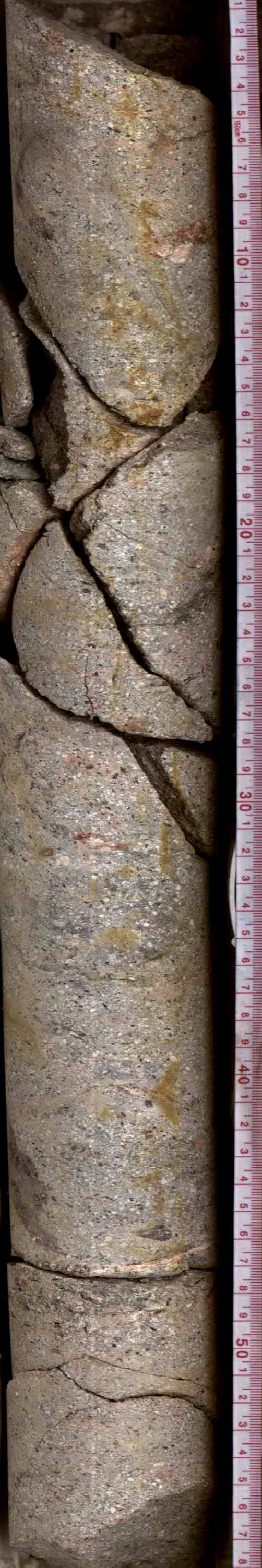

3 0,53 0,53 489,1 489,63 NN no 489,1 31 4 M BGRB5011RSZK001

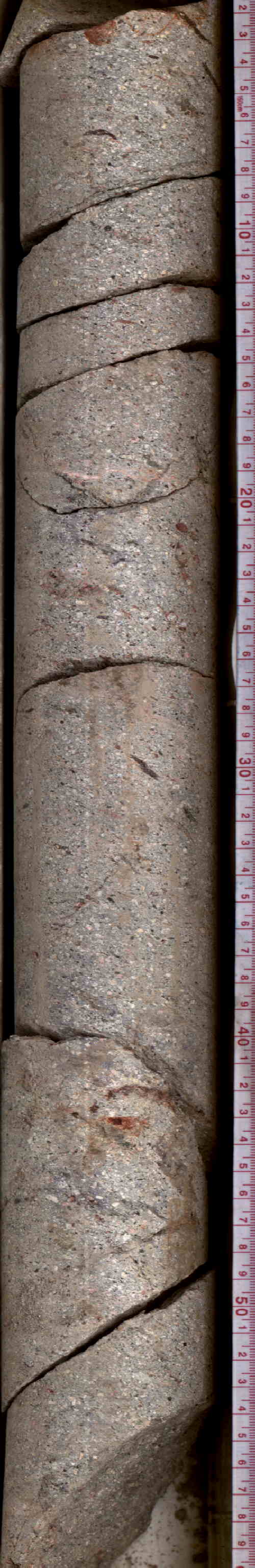

4 0,52 0,52 489,63 490,15 NN no 489,63 31 5 B BGRB5011RS0L001

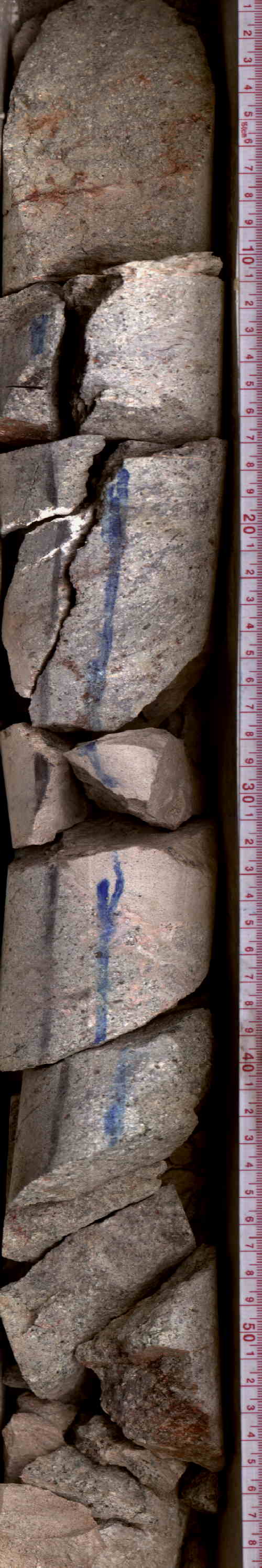

5 0,5 0,5 490,15 490,65 NN no 490,15 32 1 T BGRB5011RS1L001

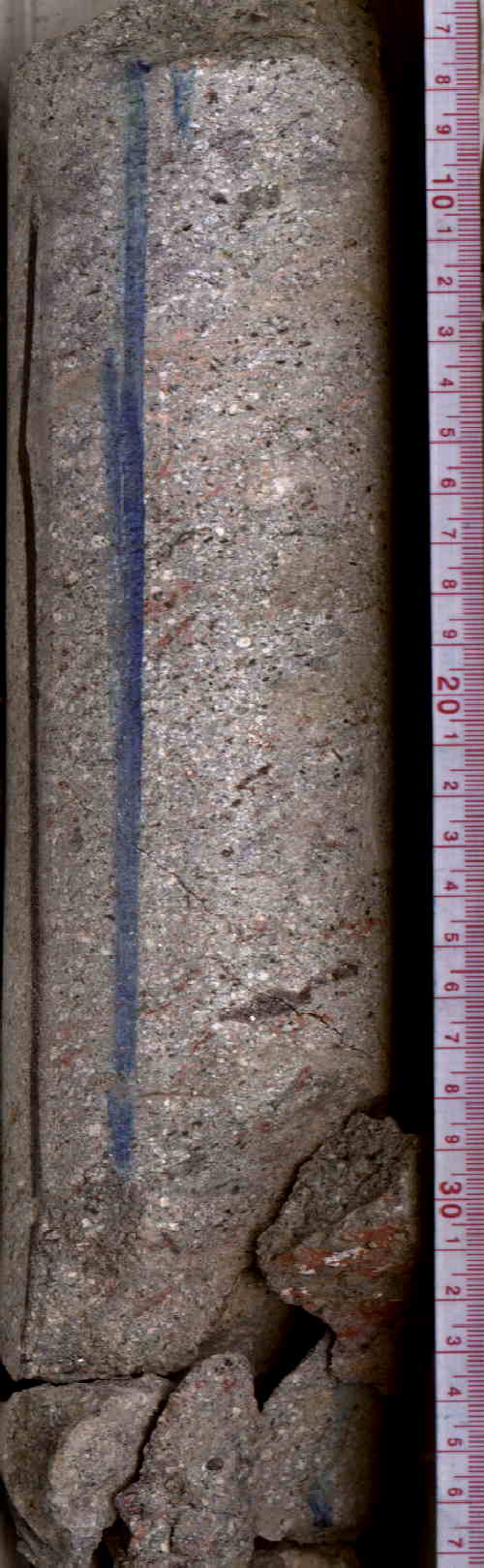

6 0,32 0,32 490,65 490,97 NN no 490,65 32 2 M BGRB5011RS2L001

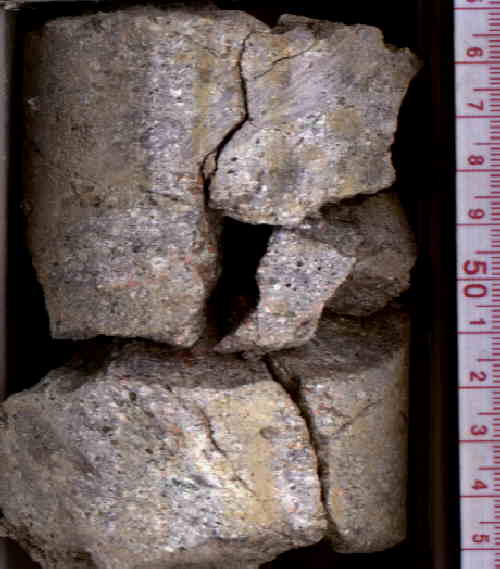

7 0,09 0,09 490,97 491,06 NN yes 490,97 32 2 M BGRB5011RS3L001

Measurements, descriptions and images:

SectionMSCL-Meas.Spectro-Meas.XRF-LightXRF-MediumXRF-HeavySection Desc.VCD-FileThin Sections360° ScanSlabbed Scan
1 X X X
2 X X X
3 X X X
4 X X X
5 X X X
6 X X X
7 X X X

Samples:

SectionHalfTypeTop (cm)Bottom (cm)Top Depth (m)Top MCD (m)Volume (cc)RequestIGSNSampleComments
1 W --- 14 16 488,29 488,29 65 MSP0002 BGRB5011RX4D001 1267 large melt clast
1 W --- 28 31 488,43 488,43 65 MSP0004 BGRB5011RX83001 911 half core for physical properties, sample will be drilled, but not destroyed
1 W --- 40 42 488,55 488,55 65 MSP0002 BGRB5011RX5D001 1268 melt clast with elongated normal to its intern
1 W --- 50 50 488,65 488,65 65 MSP0003 BGRB5011RXA4001 949 thick and thin section, non destructive
3 W --- 46 47 489,56 489,56 65 MSP0001 BGRB5011RXP7001 1072 thin section /chemical analysis, destructive, remains in storage (BGR)
3 W --- 46 49 489,56 489,56 65 MSP0002 BGRB5011RX6D001 1269 large melt clast
4 W --- 0 6 489,63 489,63 65 MSP0001 BGRB5011RXQ7001 1073 thin section /chemical analysis, destructive
4 W --- 36 39 489,99 489,99 65 MSP0004 BGRB5011RX93001 912 half core for physical properties, sample will be drilled, but not destroyed
4 W --- 42 50 490,05 490,05 65 MSP0001 BGRB5011RXR7001 1074 thin section /chemical analysis, destructive, remains in storage (BGR)
5 W --- 27 29 490,42 490,42 65 MSP0001 BGRB5011RXS7001 1075 thin section /chemical analysis, destructive, remains in storage (BGR)
5 W --- 32 35 490,47 490,47 65 MSP0003 BGRB5011RXB4001 950 thick and thin section, non destructive
6 W --- 30 31 490,95 490,95 0 MSP0001 BGRB5011RXW8401 5504
