Core:

ExpeditionSiteHoleCoreGearTypeTop Depth (m)Drilled LengthBottom DepthMCD OffsetRecoveryRecovery(%)OrientedSectionsCore CatcherCuratorIGSNComments
ELGYGY 1 C 165 RIG Q 477,02 3 480,02 0 3,08 102,666666666667 no 3 yes NN BGRB5011RCM4001 Recovery in spits 3.02 m + 3 cm CC, greenish gray solid rock (volcanites), sec 1: box 27 sec 2 + CC: box 28

Sections:

SectionSection LengthCurated LengthTop Depth (m)Bottom Depth (m)CuratorCCMCD TopBoxSlotPositionIGSNComments

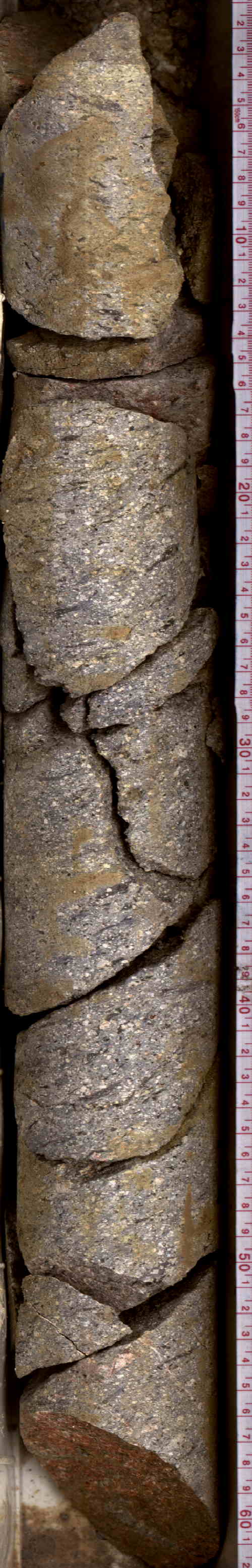

1 0,53 0,53 477,02 477,55 NN no 477,02 27 1 T BGRB5011RS8K001

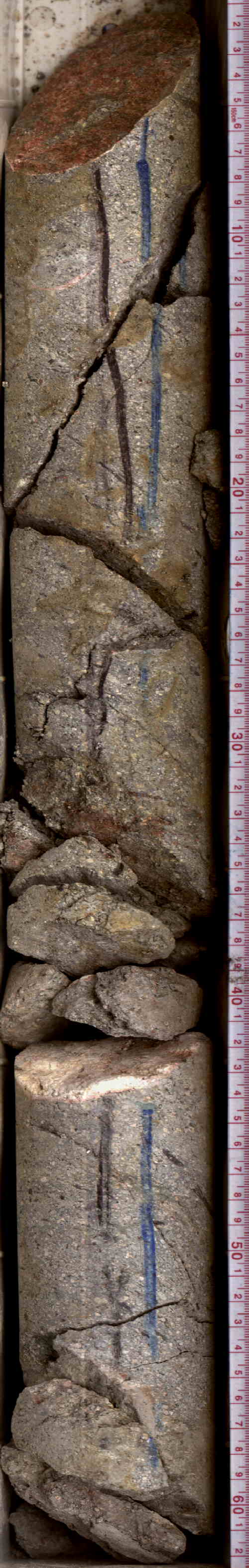

2 0,53 0,53 477,55 478,08 NN no 477,55 27 2 M BGRB5011RS9K001

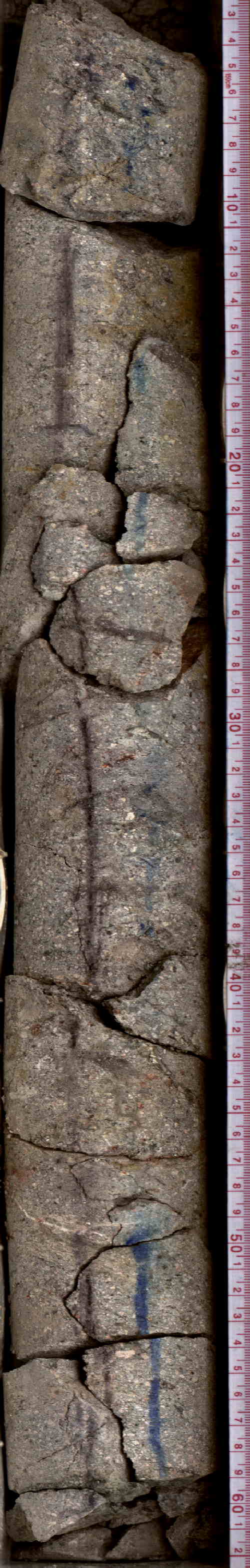

3 0,54 0,54 478,08 478,62 NN no 478,08 27 3 M BGRB5011RSAK001

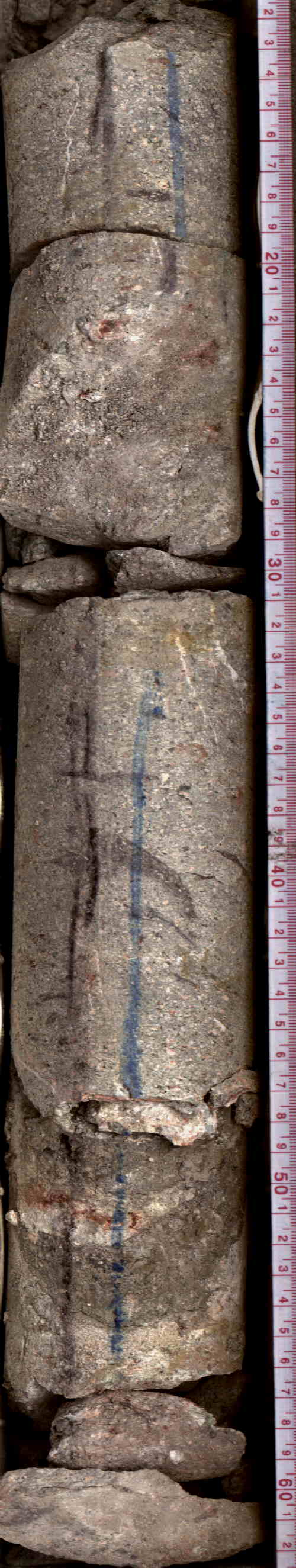

4 0,48 0,48 478,62 479,1 NN no 478,62 27 4 M BGRB5011RSBK001

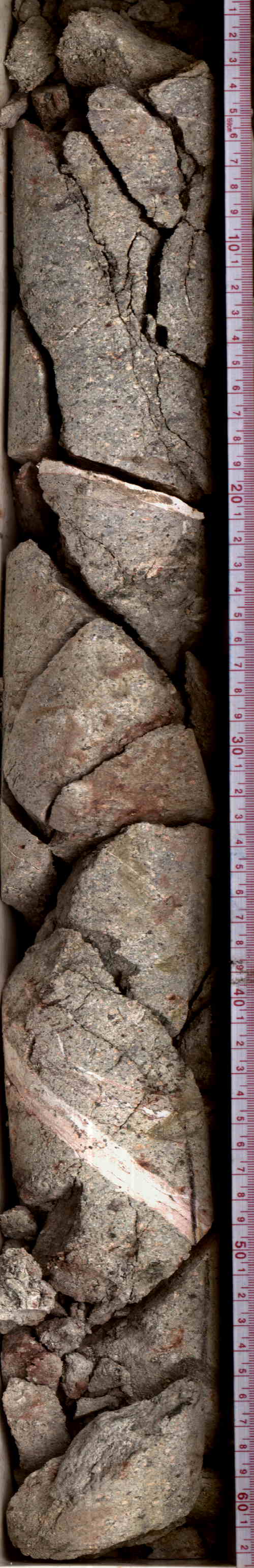

5 0,58 0,58 479,1 479,68 NN no 479,1 27 5 B BGRB5011RSCK001
6 0,2 0,2 479,68 479,88 NN no 479,68 28 1 T BGRB5011RSDK001

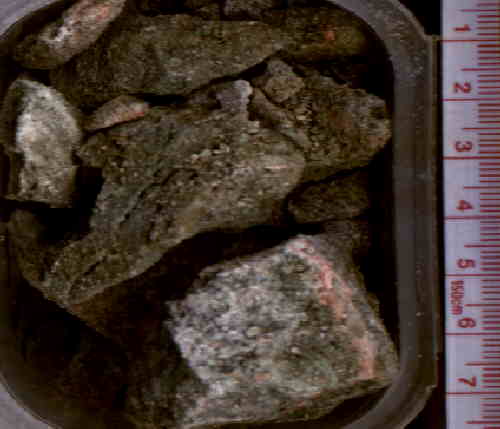

7 0,04 0,04 479,88 479,92 NN yes 479,88 28 1 M BGRB5011RSEK001

Measurements, descriptions and images:

SectionMSCL-Meas.Spectro-Meas.XRF-LightXRF-MediumXRF-HeavySection Desc.VCD-FileThin Sections360° ScanSlabbed Scan
1 X X X
2 X X X
3 X X X
4 X X X
5 X X X
6 X X X
7 X X X

Samples:

SectionHalfTypeTop (cm)Bottom (cm)Top Depth (m)Top MCD (m)Volume (cc)RequestIGSNSampleComments
2 W --- 40 50 477,95 477,95 65 MSP0001 BGRB5011RXI7001 1065 thin section /chemical analysis, destructive
4 W --- 12 14 478,74 478,74 65 MSP0002 BGRB5011RXSC001 1255 breccia with a finer-grained matrix
4 W --- 25 28 478,87 478,87 65 MSP0004 BGRB5011RX33001 906 half core for physical properties, sample will be drilled, but not destroyed
4 W --- 30 35 478,92 478,92 65 MSP0001 BGRB5011RXM8001 1105 thin section /chemical analysis, destructive
4 W --- 40 45 479,02 479,02 65 MSP0001 BGRB5011RXJ7001 1066 thin section /chemical analysis, destructive, remains in storage (BGR)
4 W --- 47 48 479,09 479,09 65 MSP0002 BGRB5011RXTC001 1256 clay vein with white layers at boundaries an
5 W --- 58 58 479,68 479,68 65 MSP0002 BGRB5011RXUC001 1257 large white/pink vein with apparent internal
6 W --- 17 20 479,85 479,85 65 MSP0002 BGRB5011RXVC001 1258 fluidal melt white-green in color within breccia
