Core:

ExpeditionSiteHoleCoreGearTypeTop Depth (m)Drilled LengthBottom DepthMCD OffsetRecoveryRecovery(%)OrientedSectionsCore CatcherCuratorIGSNComments
ELGYGY 1 C 164 RIG Q 474,02 3 477,02 0 3,1 103,333333333333 no 3 yes NN BGRB5011RCL4001 Recovery 2.98 m in splits + 12 cm CC, gray solid rock with white and pink fracture fill, box 25 & 26

Sections:

SectionSection LengthCurated LengthTop Depth (m)Bottom Depth (m)CuratorCCMCD TopBoxSlotPositionIGSNComments

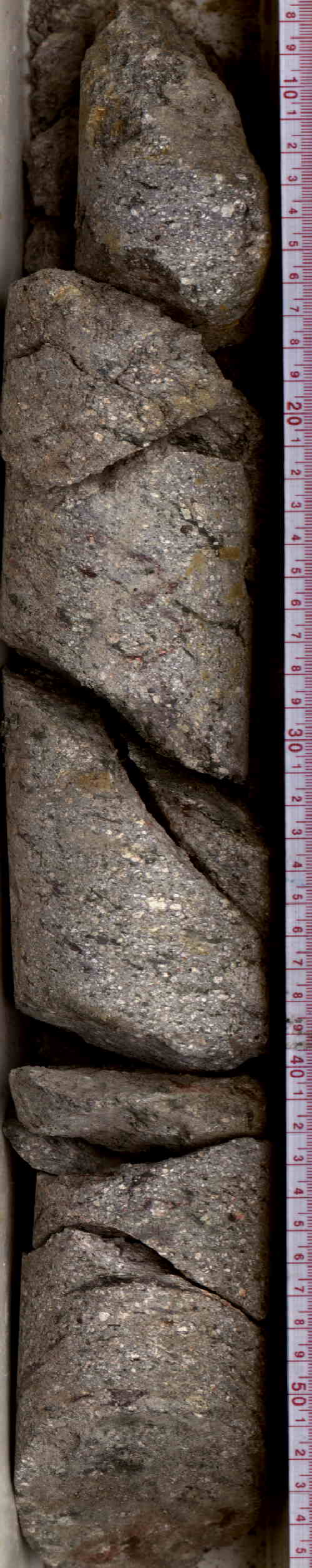

1 0,42 0,42 474,02 474,44 NN no 474,02 25 5 B BGRB5011RS2K001

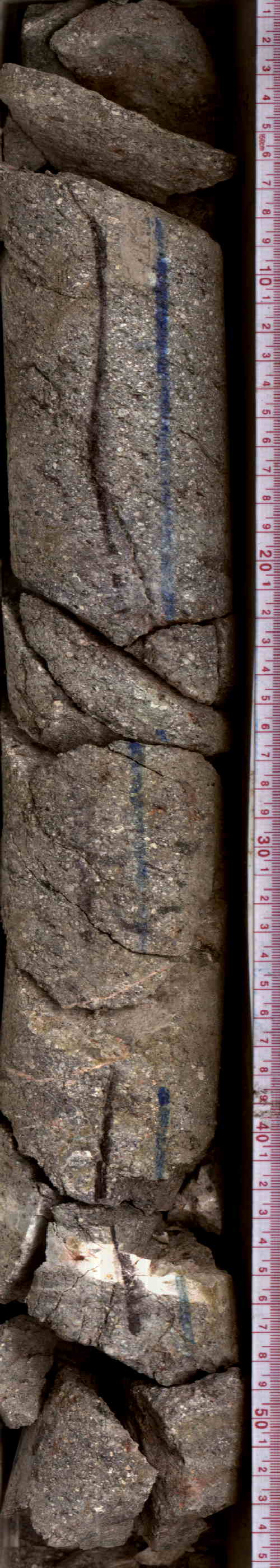

2 0,46 0,46 474,44 474,9 NN no 474,44 26 1 T BGRB5011RS3K001

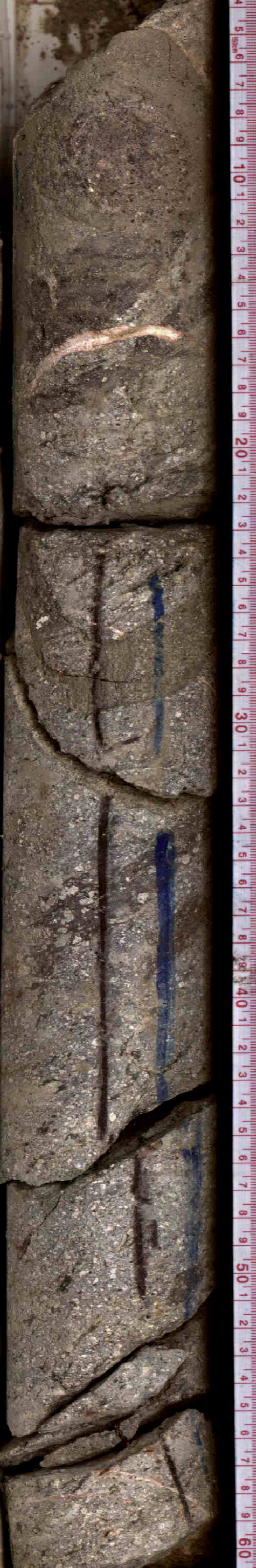

3 0,53 0,53 474,9 475,43 NN no 474,9 26 2 M BGRB5011RS4K001

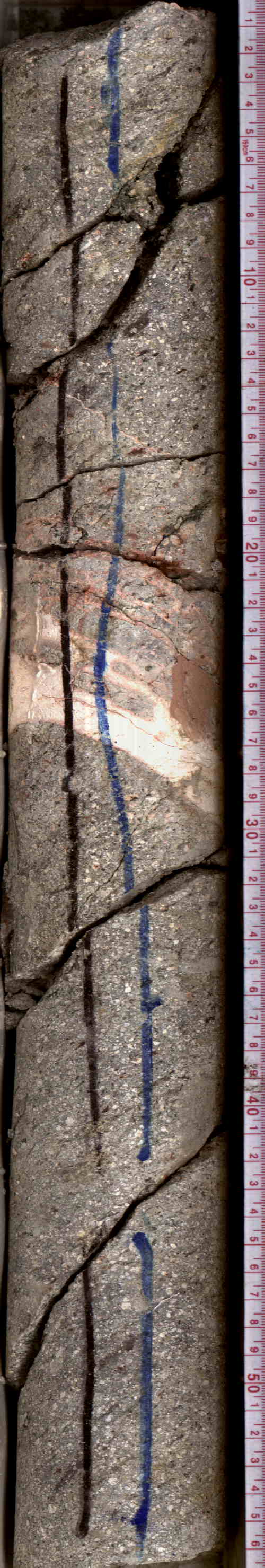

4 0,54 0,54 475,43 475,97 NN no 475,43 26 3 M BGRB5011RS5K001

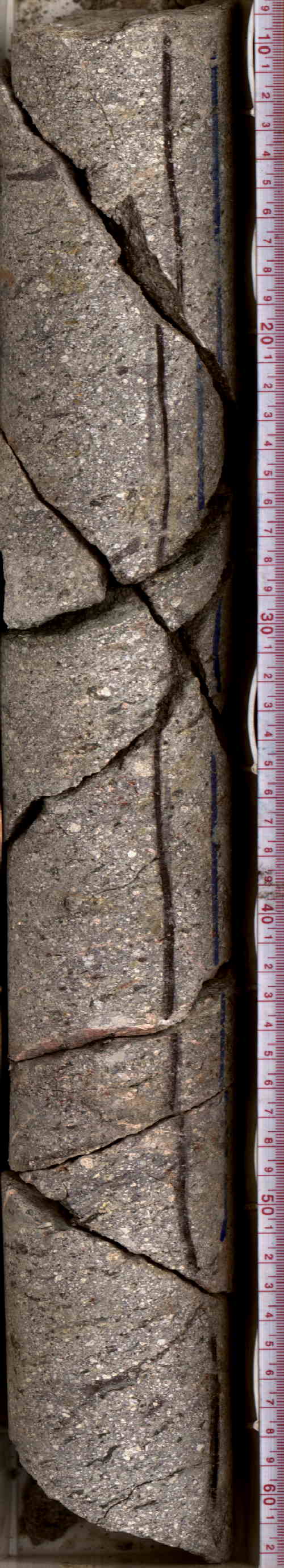

5 0,5 0,5 475,97 476,47 NN no 475,97 26 4 M BGRB5011RS6K001

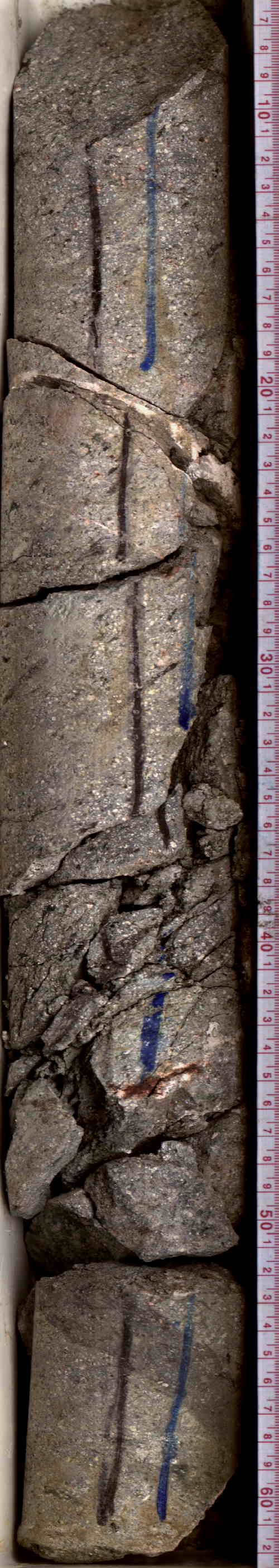

6 0,52 0,52 476,47 476,99 NN no 476,47 26 5 B BGRB5011RS7K001

Measurements, descriptions and images:

SectionMSCL-Meas.Spectro-Meas.XRF-LightXRF-MediumXRF-HeavySection Desc.VCD-FileThin Sections360° ScanSlabbed Scan
1 X X X
2 X X X
3 X X X
4 X X X
5 X X X
6 X X X

Samples:

SectionHalfTypeTop (cm)Bottom (cm)Top Depth (m)Top MCD (m)Volume (cc)RequestIGSNSampleComments
1 W --- 39 42 474,41 474,41 65 MSP0004 BGRB5011RX03001 903 half core for physical properties, sample will be drilled, but not destroyed
1 W --- 40 42 474,42 474,42 65 MSP0002 BGRB5011RXLC001 1248 large melt clast parallel and elongated along
2 W --- 8 16 474,52 474,52 65 MSP0001 BGRB5011RXF7001 1062 thin section /chemical analysis, destructive, remains in storage (BGR)
2 W --- 44 46 474,88 474,88 65 MSP0002 BGRB5011RXMC001 1249 large (2 cm) white vein with acicular crystals
3 W --- 7 9 474,97 474,97 65 MSP0002 BGRB5011RXNC001 1250 clay green veins crosscutting the breccia wi
3 W --- 10 13 475 475 65 MSP0004 BGRB5011RX13001 904 half core for physical properties, sample will be drilled, but not destroyed
3 W --- 24 27 475,14 475,14 65 MSP0003 BGRB5011RX84001 947 thick and thin section, non destructive
3 W --- 26 28 475,16 475,16 65 MSP0002 BGRB5011RXOC001 1251 clay green veins crosscutting the breccia wi
3 W --- 35 37 475,25 475,25 65 MSP0002 BGRB5011RXPC001 1252 large melt vein with large rounded clasts an
4 W --- 28 30 475,71 475,71 65 MSP0002 BGRB5011RXQC001 1253 large white vein with red boundaries and ac
4 W --- 37 40 475,8 475,8 65 MSP0004 BGRB5011RX23001 905 half core for physical properties, sample will be drilled, but not destroyed
5 W --- 10 18 476,07 476,07 65 MSP0001 BGRB5011RXG7001 1063 thin section /chemical analysis, destructive
6 W --- 47 48 476,94 476,94 65 MSP0001 BGRB5011RXH7001 1064 thin section /chemical analysis, destructive, remains in storage (BGR)
6 W --- 50 52 476,97 476,97 65 MSP0002 BGRB5011RXRC001 1254 large melt clast
