Core:

ExpeditionSiteHoleCoreGearTypeTop Depth (m)Drilled LengthBottom DepthMCD OffsetRecoveryRecovery(%)OrientedSectionsCore CatcherCuratorIGSNComments
ELGYGY 1 C 163 RIG Q 471,02 3 474,02 0 1,12 37,3333333333333 no 1 no NN BGRB5011RCK4001 Hit void around 1 m into the run, pipe fell ab. 1.5 - 2 m, 1.12 m recovery in the splits, box 25

Sections:

SectionSection LengthCurated LengthTop Depth (m)Bottom Depth (m)CuratorCCMCD TopBoxSlotPositionIGSNComments

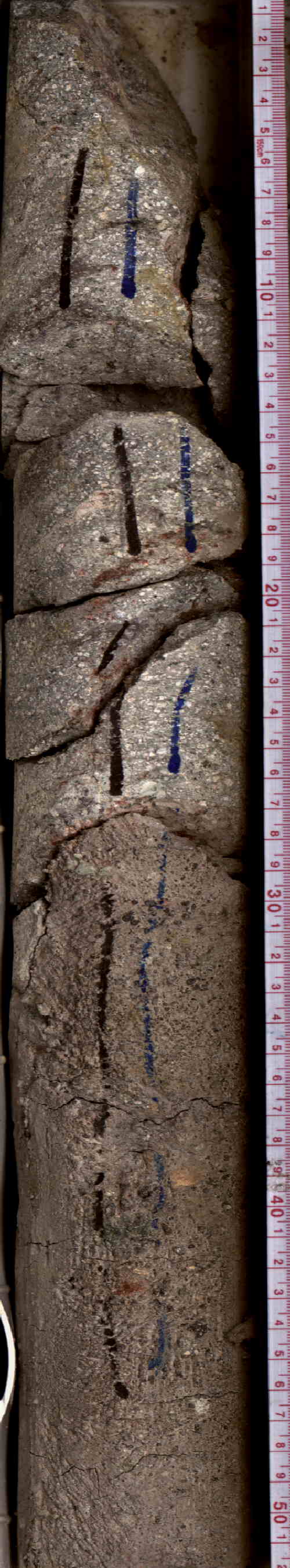

1 0,49 0,49 471,02 471,51 NN no 471,02 25 3 M BGRB5011RS0K001 weathered rocks, clay, gruss green gray brown fresh rocks

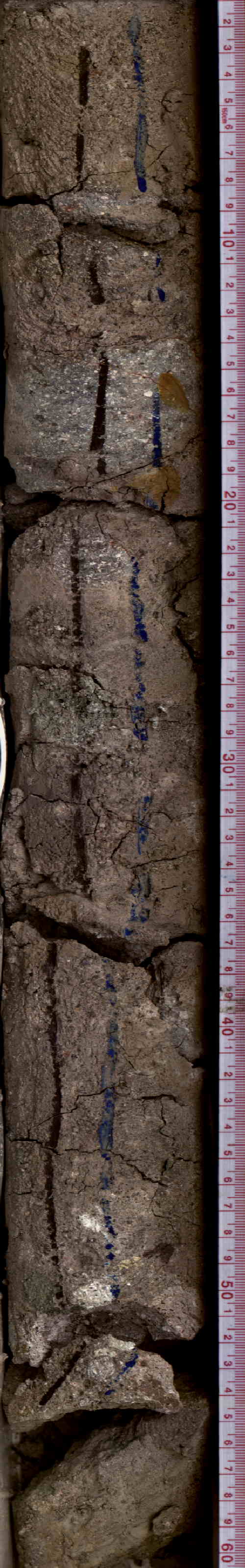

2 0,55 0,55 471,51 472,06 NN no 471,51 25 4 M BGRB5011RS1K001

Measurements, descriptions and images:

SectionMSCL-Meas.Spectro-Meas.XRF-LightXRF-MediumXRF-HeavySection Desc.VCD-FileThin Sections360° ScanSlabbed Scan
1 X X X
2 X X X

Samples:

SectionHalfTypeTop (cm)Bottom (cm)Top Depth (m)Top MCD (m)Volume (cc)RequestIGSNSampleComments
1 W --- 14 17 471,16 471,16 65 MSP0002 BGRB5011RXHC001 1244 green vein with mm white grains
1 W --- 35 38 471,37 471,37 65 MSP0002 BGRB5011RXIC001 1245 contact between breccia and partly not-con
1 W --- 35 38 471,37 471,37 65 MSP0003 BGRB5011RX74001 946 thick and thin section, non destructive
1 W --- 41 49 471,43 471,43 65 MSP0001 BGRB5011RXI8001 1101 thin section /chemical analysis, destructive
1 W --- 41 49 471,43 471,43 0 MSP0001 BGRB5011RXT8401 5501 remains in storage (BGR)
1 W --- 44 49 471,46 471,46 65 MSP0008 BGRB5011RX8E001 1307 thin section, bulk chemistry, destructive
2 W --- 12 15 471,63 471,63 65 MSP0002 BGRB5011RXJC001 1246 zone with high content of clay matrix
2 W --- 37 43 471,88 471,88 65 MSP0001 BGRB5011RXE7001 1061 thin section /chemical analysis, destructive
2 W --- 45 47 471,96 471,96 65 MSP0002 BGRB5011RXKC001 1247 violet-green vein with dark red cm clasts
