Core:

ExpeditionSiteHoleCoreGearTypeTop Depth (m)Drilled LengthBottom DepthMCD OffsetRecoveryRecovery(%)OrientedSectionsCore CatcherCuratorIGSNComments
ELGYGY 1 C 161 RIG Q 465,02 3 468,02 0 3,13 104,333333333333 yes 3 yes NN BGRB5011RCI4001 2.99 m recovery in splits gray green rock box 23 and 24

Sections:

SectionSection LengthCurated LengthTop Depth (m)Bottom Depth (m)CuratorCCMCD TopBoxSlotPositionIGSNComments

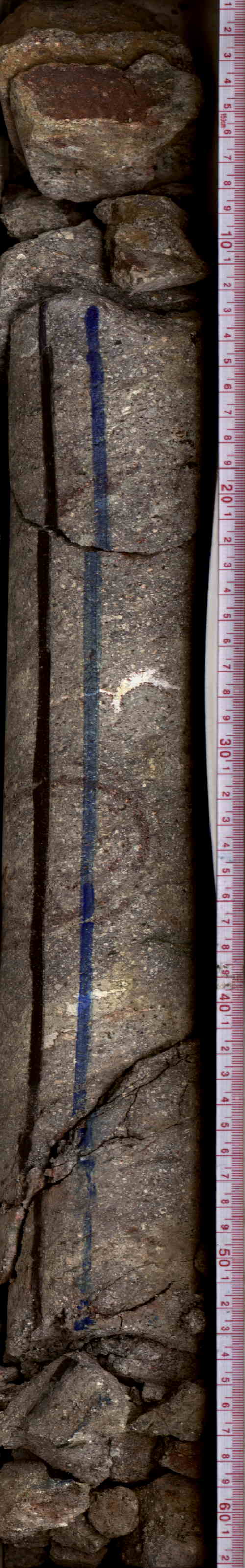

1 0,55 0,55 465,02 465,57 NN no 465,02 23 1 T BGRB5011RSOJ001 gray green rock only one section in full box,can identified sektion 2 and cc

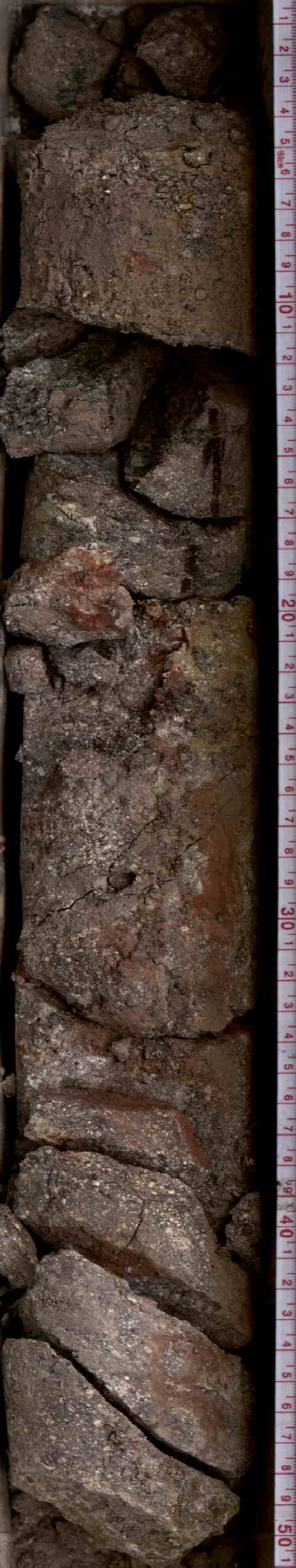

2 0,47 0,47 465,57 466,04 NN no 465,57 23 2 M BGRB5011RSPJ001

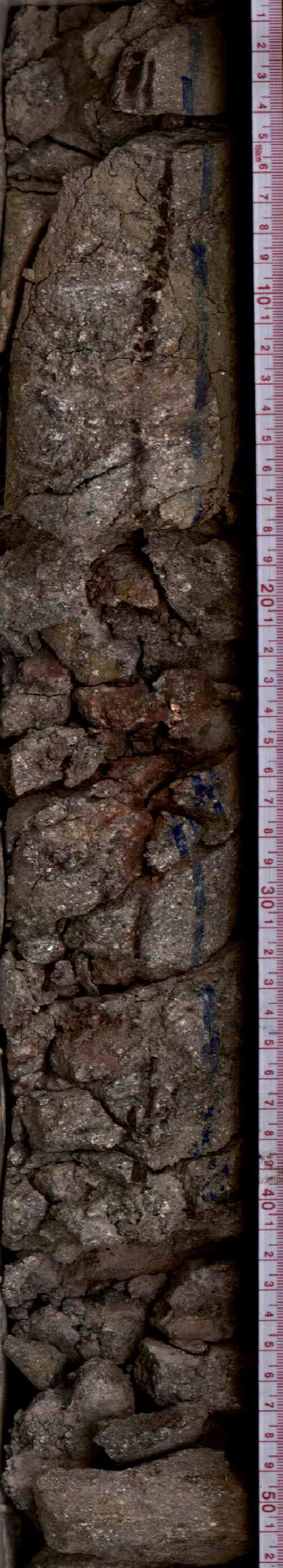

3 0,49 0,49 466,04 466,53 NN no 466,04 23 3 M BGRB5011RSQJ001

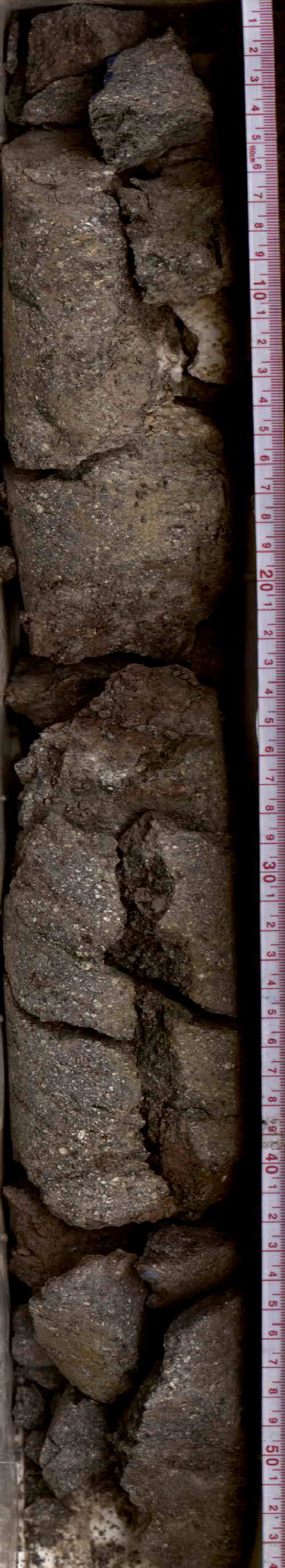

4 0,42 0,42 466,53 466,95 NN no 466,53 23 4 M BGRB5011RSRJ001

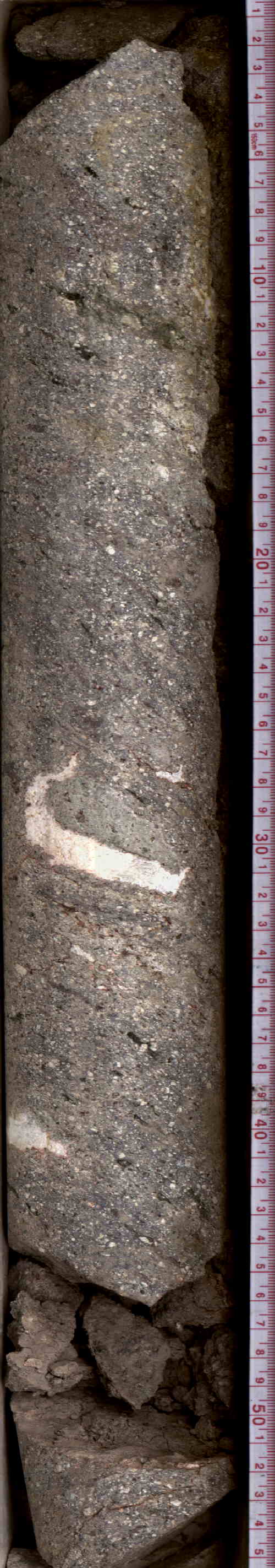

5 0,51 0,51 466,95 467,46 NN no 466,95 23 5 B BGRB5011RSSJ001

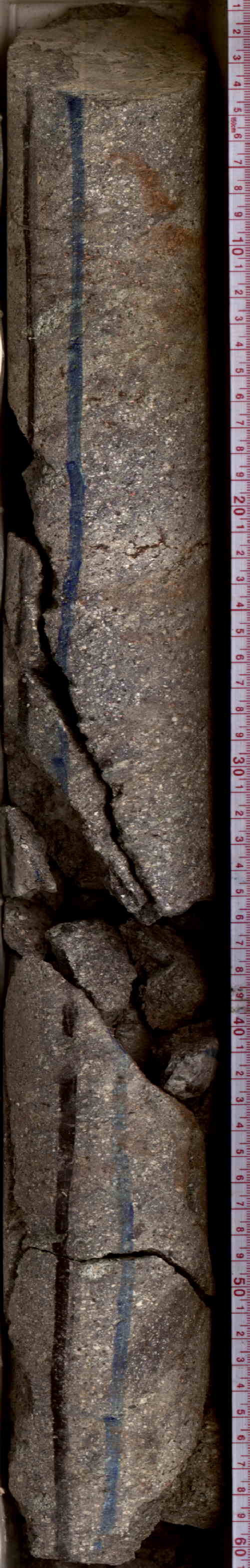

6 0,55 0,55 467,46 468,01 NN no 467,46 24 1 T BGRB5011RSTJ001

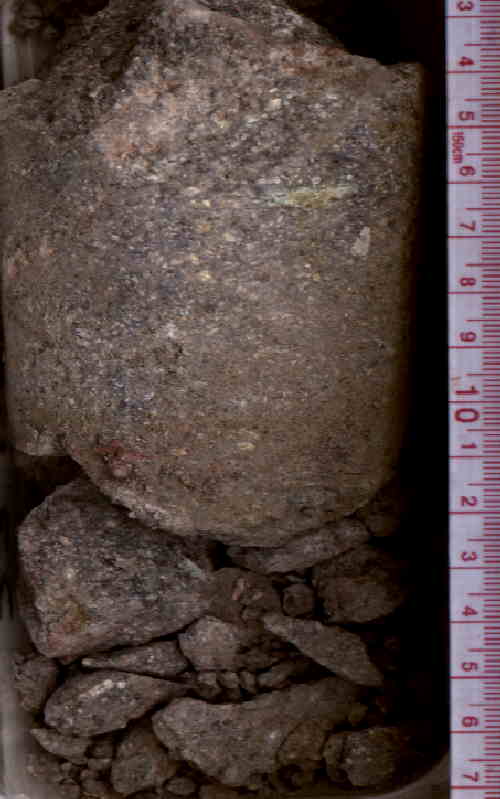

7 0,11 0,11 468,01 468,12 NN yes 468,01 24 2 M BGRB5011RSUJ001

Measurements, descriptions and images:

SectionMSCL-Meas.Spectro-Meas.XRF-LightXRF-MediumXRF-HeavySection Desc.VCD-FileThin Sections360° ScanSlabbed Scan
1 X X X
2 X X X
3 X X X
4 X X X
5 X X X
6 X X X
7 X X X

Samples:

SectionHalfTypeTop (cm)Bottom (cm)Top Depth (m)Top MCD (m)Volume (cc)RequestIGSNSampleComments
1 W --- 12 14 465,14 465,14 65 MSP0002 BGRB5011RX1C001 1228 melt rich area with melt clasts green and red
1 W --- 22 25 465,24 465,24 65 MSP0004 BGRB5011RXW2001 899 half core for physical properties, sample will be drilled, but not destroyed
1 W --- 28 34 465,3 465,3 65 MSP0001 BGRB5011RX87001 1055 thin section /chemical analysis, destructive
1 W --- 38 40 465,4 465,4 65 MSP0002 BGRB5011RX2C001 1229 light grey inclusion with white cores and a
2 W --- 8 10 465,65 465,65 65 MSP0002 BGRB5011RX3C001 1230 cataclastic zone with red, white and green clasts
3 W --- 13 15 466,17 466,17 65 MSP0002 BGRB5011RX4C001 1231 clay vein with green clasts
4 W --- 22 23 466,75 466,75 0 MSP0001 BGRB5011RXZ8401 5507
4 W --- 32 35 466,85 466,85 65 MSP0002 BGRB5011RX5C001 1232 red alteration clay vein
5 W --- 5 8 467 467 65 MSP0004 BGRB5011RXX2001 900 half core for physical properties, sample will be drilled, but not destroyed
5 W --- 19 25 467,14 467,14 65 MSP0001 BGRB5011RX97001 1056 thin section /chemical analysis, destructive
5 W --- 33 35 467,28 467,28 65 MSP0002 BGRB5011RX6C001 1233 white vein with light green fine-grained clasts
6 W --- 10 11 467,56 467,56 65 MSP0001 BGRB5011RXA7001 1057 thin section /chemical analysis, destructive, remains in storage (BGR)
6 W --- 12 14 467,58 467,58 65 MSP0002 BGRB5011RX7C001 1234 large white vein with a thin dark layer at the
6 W --- 26 28 467,72 467,72 65 MSP0002 BGRB5011RX8C001 1235 green veins in melt rich area
