Core:

ExpeditionSiteHoleCoreGearTypeTop Depth (m)Drilled LengthBottom DepthMCD OffsetRecoveryRecovery(%)OrientedSectionsCore CatcherCuratorIGSNComments
ELGYGY 1 C 160 RIG Q 462,4 2,62 465,02 0 2,6 99,236641221374 yes 2 yes NN BGRB5011RCH4001 Darker gray color, box 22

Sections:

SectionSection LengthCurated LengthTop Depth (m)Bottom Depth (m)CuratorCCMCD TopBoxSlotPositionIGSNComments

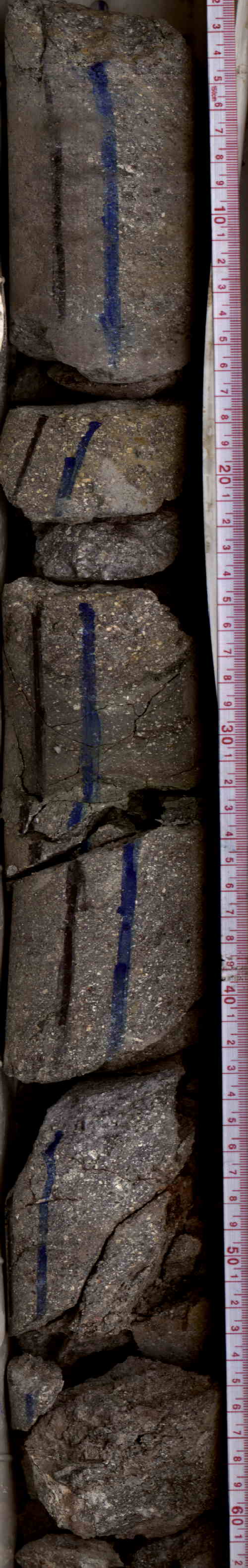

1 0,54 0,54 462,4 462,94 NN no 462,4 22 1 T BGRB5011RSIJ001

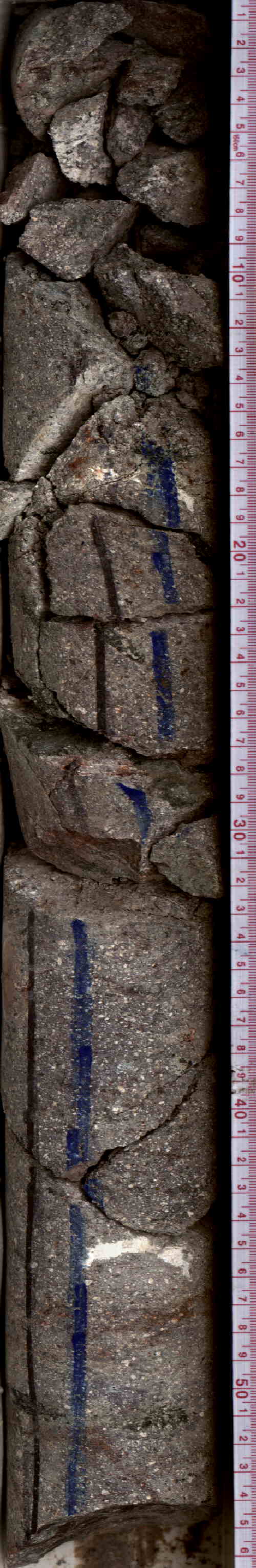

2 0,5 0,5 462,94 463,44 NN no 462,94 22 2 M BGRB5011RSJJ001

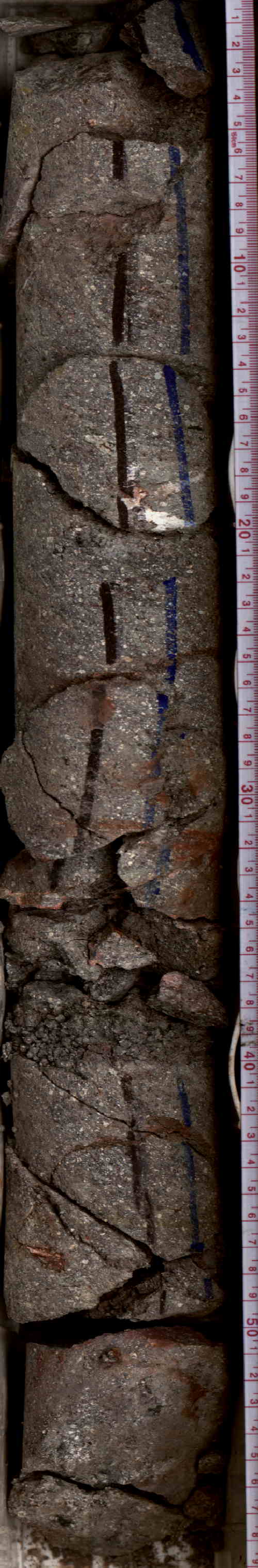

3 0,52 0,52 463,44 463,96 NN no 463,44 22 3 M BGRB5011RSKJ001

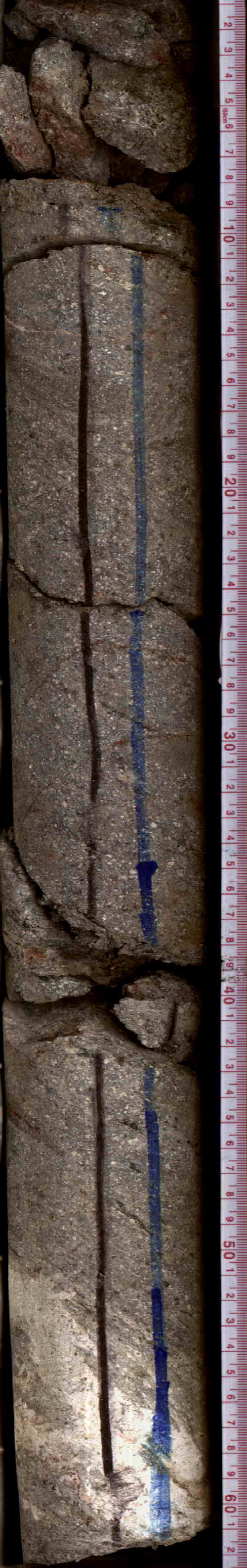

4 0,56 0,56 463,96 464,52 NN no 463,96 22 4 M BGRB5011RSLJ001

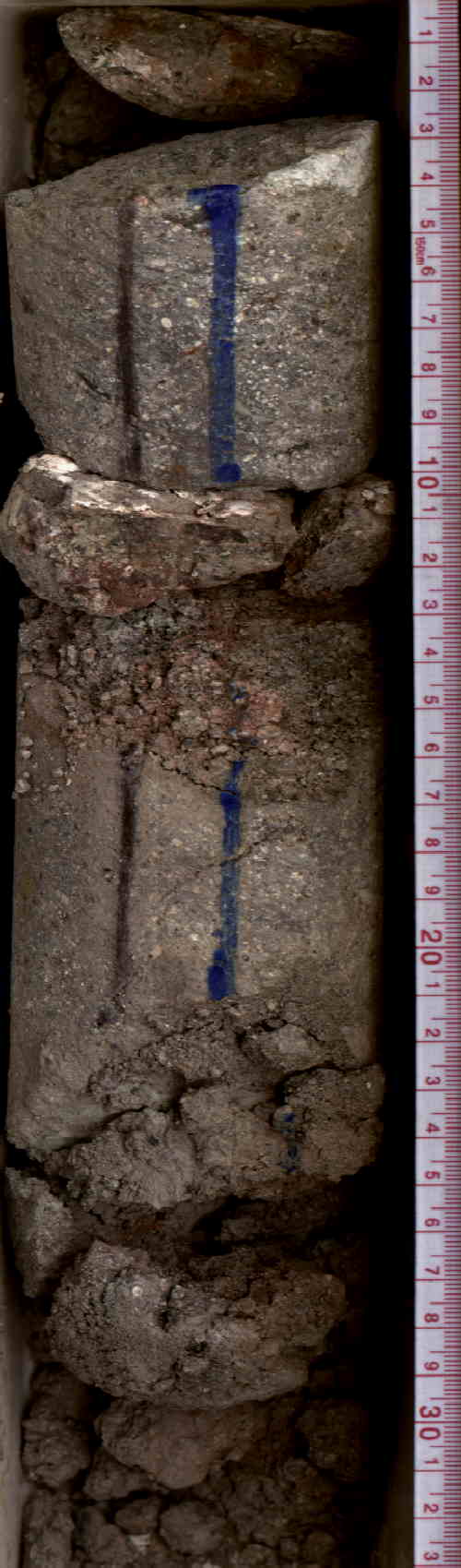

5 0,21 0,21 464,52 464,73 NN no 464,52 22 5 M BGRB5011RSMJ001
6 0,08 0,08 464,73 464,81 NN yes 464,73 22 5 B BGRB5011RSNJ001

Measurements, descriptions and images:

SectionMSCL-Meas.Spectro-Meas.XRF-LightXRF-MediumXRF-HeavySection Desc.VCD-FileThin Sections360° ScanSlabbed Scan
1 X X X
2 X X X
3 X X X
4 X X X
5 X X X X
6 X X X

Samples:

SectionHalfTypeTop (cm)Bottom (cm)Top Depth (m)Top MCD (m)Volume (cc)RequestIGSNSampleComments
1 W --- 0 3 462,4 462,4 65 MSP0004 BGRB5011RXV2001 898 half core for physical properties, sample will be drilled, but not destroyed
1 W --- 17 21 462,57 462,57 65 MSP0001 BGRB5011RX57001 1052 thin section /chemical analysis, destructive
1 W --- 26 28 462,66 462,66 65 MSP0002 BGRB5011RXXB001 1224 melt/clay large (4cm) vein with green material
2 W --- 28 30 463,22 463,22 65 MSP0002 BGRB5011RXYB001 1225 green alteration vein + green clasts
2 W --- 48 50 463,42 463,42 65 MSP0001 BGRB5011RX67001 1053 thin section /chemical analysis, destructive, remains in storage (BGR)
3 W --- 42 44 463,86 463,86 65 MSP0002 BGRB5011RXZB001 1226 low consolidated cataclastic zone with melt
4 W --- 52 55 464,48 464,48 65 MSP0001 BGRB5011RX77001 1054 thin section /chemical analysis, destructive, remains in storage (BGR)
4 W --- 56 56 464,52 464,52 65 MSP0002 BGRB5011RX0C001 1227 white vein with large crystals
