Core:

ExpeditionSiteHoleCoreGearTypeTop Depth (m)Drilled LengthBottom DepthMCD OffsetRecoveryRecovery(%)OrientedSectionsCore CatcherCuratorIGSNComments
ELGYGY 1 C 156 RIG Q 451,58 2 453,58 0 2,08 104 yes 3 yes NN BGRB5011RCD4001 Box 17 and 18

Sections:

SectionSection LengthCurated LengthTop Depth (m)Bottom Depth (m)CuratorCCMCD TopBoxSlotPositionIGSNComments

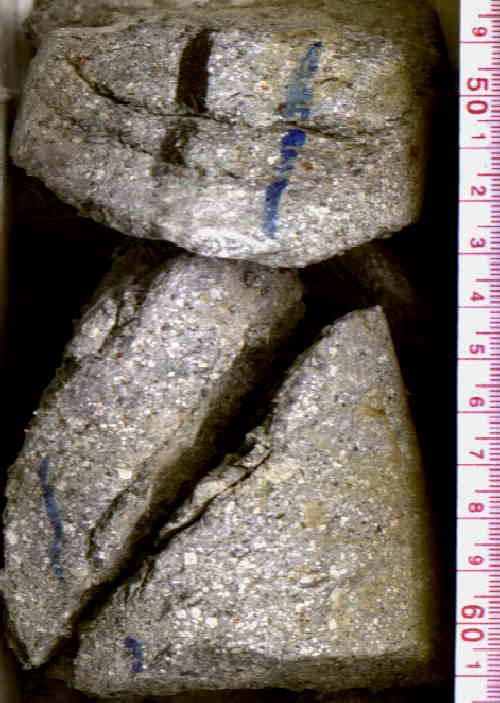

1 0,11 0,11 451,58 451,69 NN no 451,58 17 4 M BGRB5011RSRI001 gray green broken rock

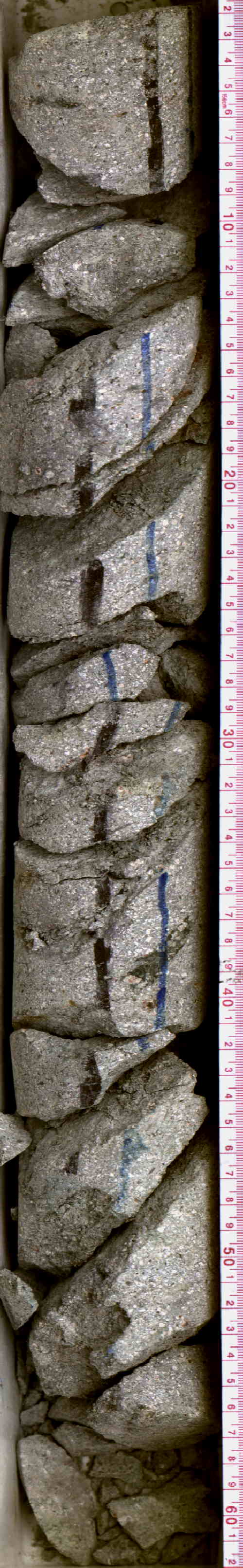

2 0,48 0,48 451,69 452,17 NN no 451,69 17 5 B BGRB5011RSSI001

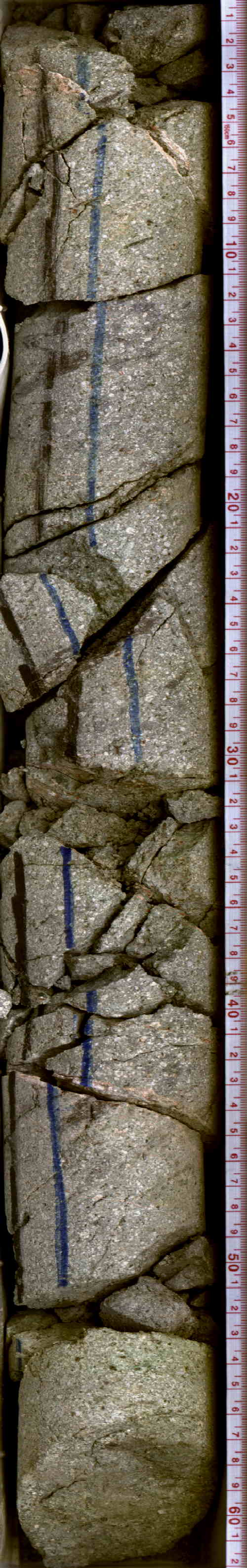

3 0,53 0,53 452,17 452,7 NN no 452,17 18 1 T BGRB5011RSTI001

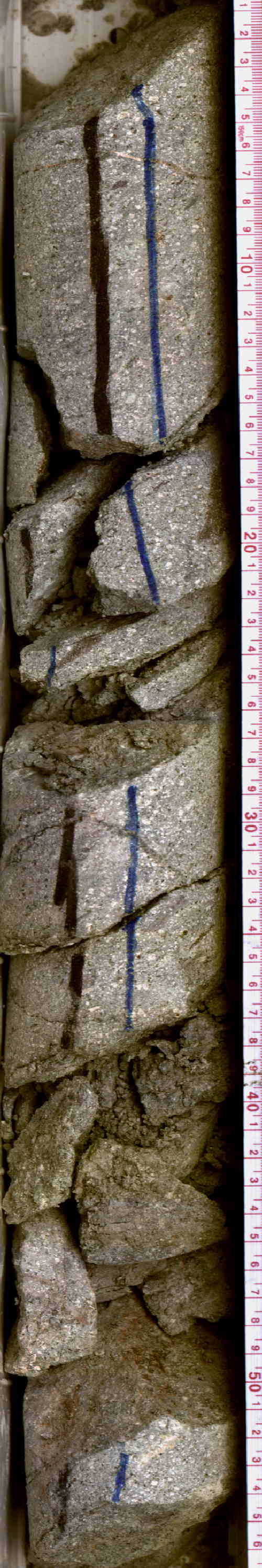

4 0,51 0,51 452,7 453,21 NN no 452,7 18 2 M BGRB5011RSUI001

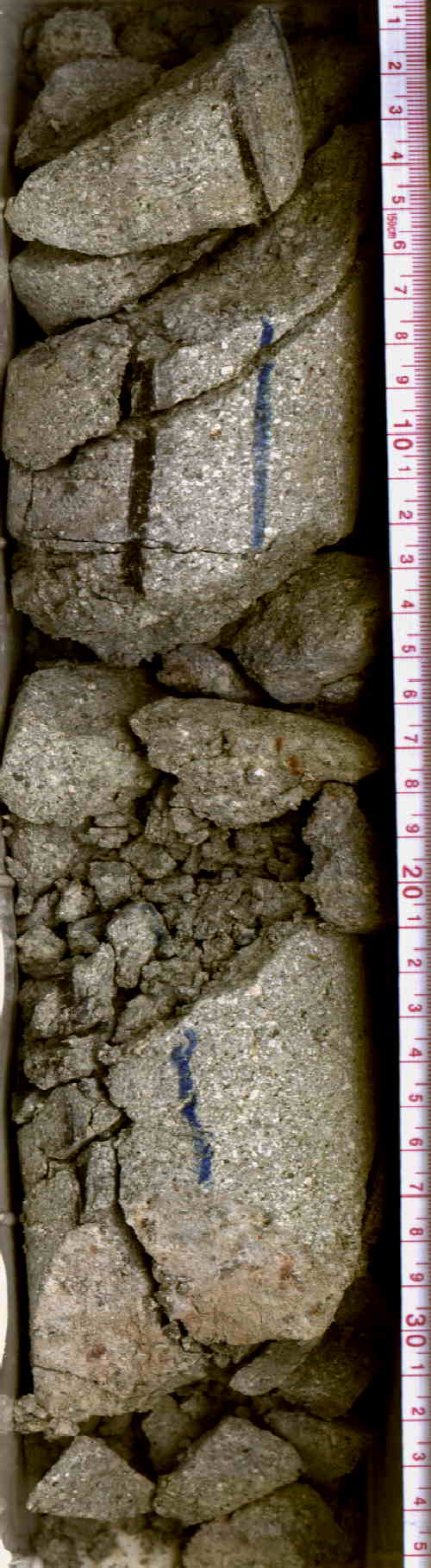

5 0,25 0,25 453,21 453,46 NN no 453,21 18 3 M BGRB5011RSVI001

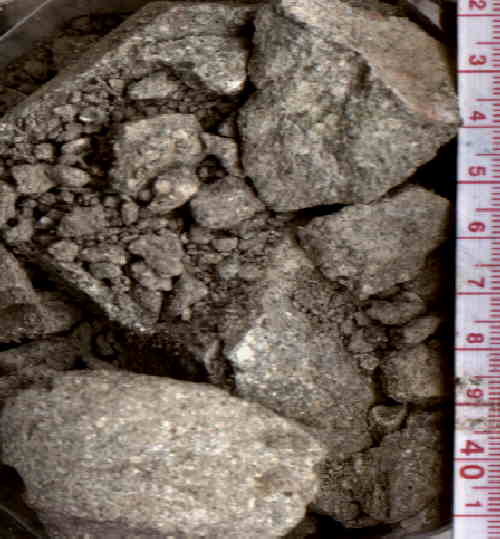

6 0,08 0,08 453,46 453,54 NN yes 453,46 18 3 M BGRB5011RSWI001

Measurements, descriptions and images:

SectionMSCL-Meas.Spectro-Meas.XRF-LightXRF-MediumXRF-HeavySection Desc.VCD-FileThin Sections360° ScanSlabbed Scan
1 X X X
2 X X X
3 X X X
4 X X X
5 X X X
6 X X X

Samples:

SectionHalfTypeTop (cm)Bottom (cm)Top Depth (m)Top MCD (m)Volume (cc)RequestIGSNSampleComments
2 W --- 32 40 452,01 452,01 65 MSP0001 BGRB5011RXU6001 1041 thin section /chemical analysis, destructive, remains in storage (BGR)
3 W --- 12 20 452,29 452,29 65 MSP0001 BGRB5011RXV6001 1042 thin section /chemical analysis, destructive, remains in storage (BGR)
4 W --- 7 15 452,77 452,77 65 MSP0001 BGRB5011RXW6001 1043 thin section /chemical analysis, destructive
