Core:

ExpeditionSiteHoleCoreGearTypeTop Depth (m)Drilled LengthBottom DepthMCD OffsetRecoveryRecovery(%)OrientedSectionsCore CatcherCuratorIGSNComments
ELGYGY 1 C 155 RIG Q 449,08 2,5 451,58 0 2,53 101,2 no 3 yes NN BGRB5011RCC4001 Box 16 and 17

Sections:

SectionSection LengthCurated LengthTop Depth (m)Bottom Depth (m)CuratorCCMCD TopBoxSlotPositionIGSNComments
1 0,38 0,38 449,08 449,46 NN no 449,08 16 5 B BGRB5011RSLI001 gray green rock crumbly

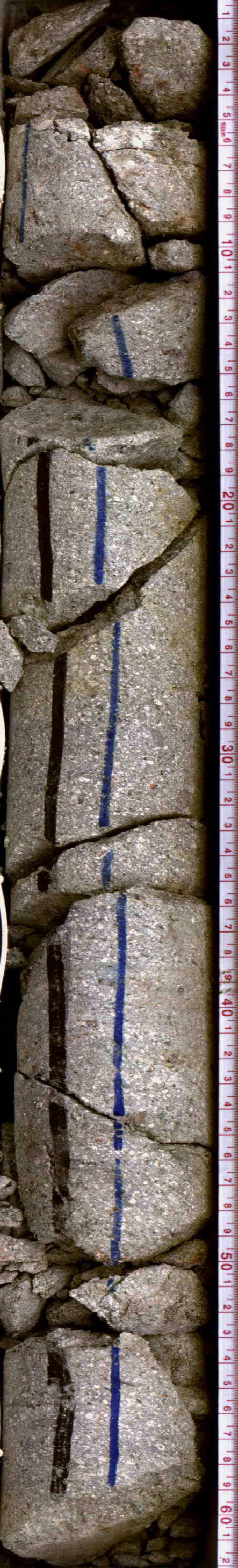

2 0,55 0,55 449,46 450,01 NN no 449,46 17 1 T BGRB5011RSMI001

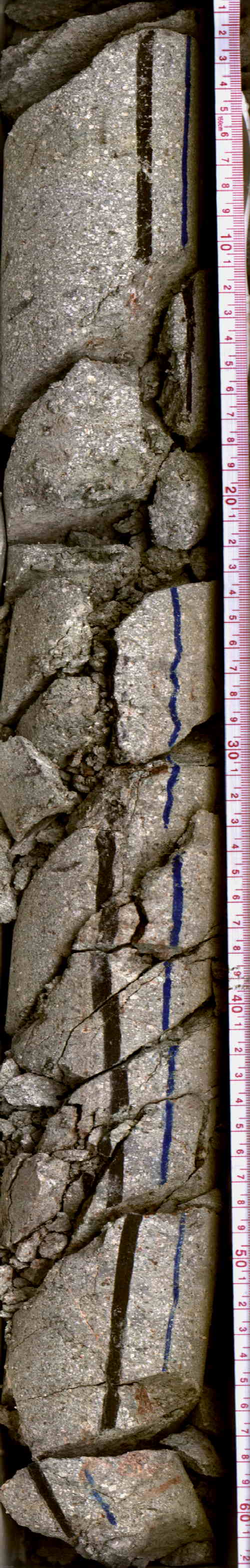

3 0,56 0,56 450,01 450,57 NN no 450,01 17 2 M BGRB5011RSNI001

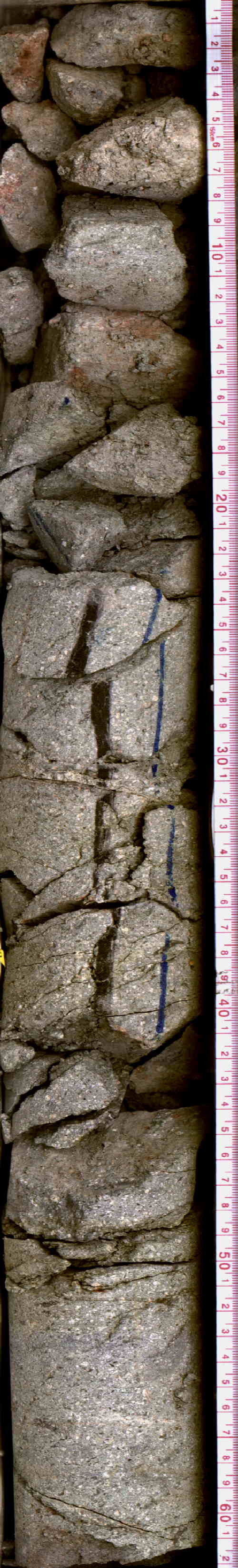

4 0,56 0,56 450,57 451,13 NN no 450,57 17 3 M BGRB5011RSOI001

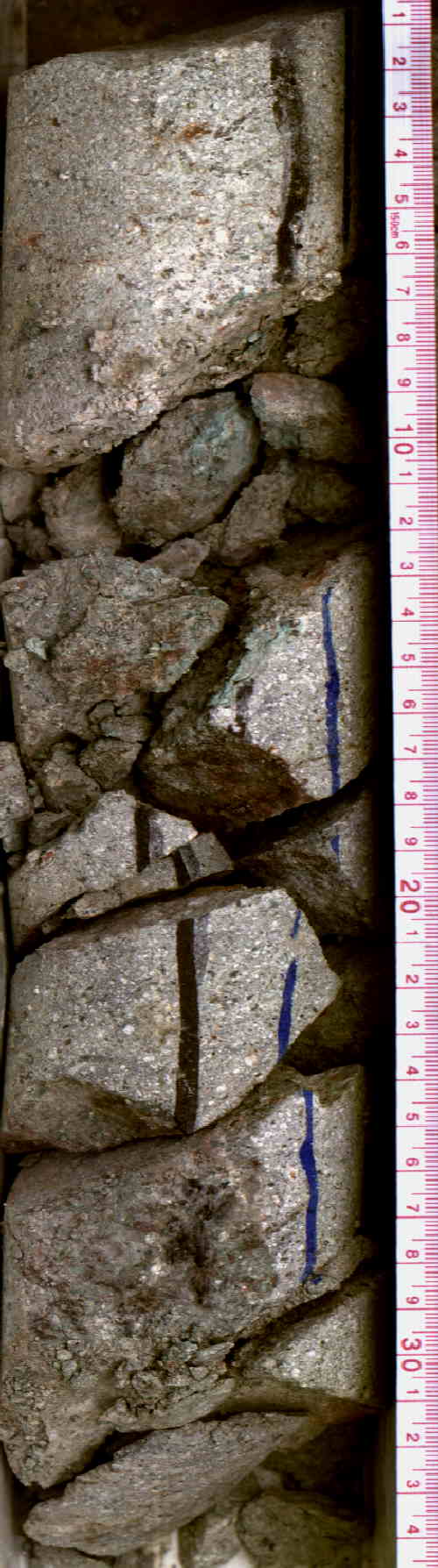

5 0,27 0,27 451,13 451,4 NN no 451,13 17 4 M BGRB5011RSPI001

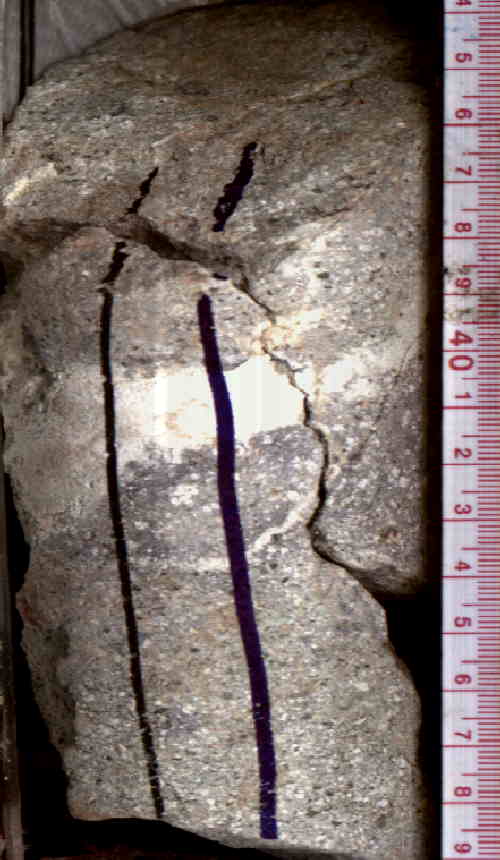

6 0,155 0,155 451,4 451,555 NN yes 451,4 17 4 M BGRB5011RSQI001

Measurements, descriptions and images:

SectionMSCL-Meas.Spectro-Meas.XRF-LightXRF-MediumXRF-HeavySection Desc.VCD-FileThin Sections360° ScanSlabbed Scan
1 X X X
2 X X X
3 X X X
4 X X X
5 X X X
6 X X X

Samples:

SectionHalfTypeTop (cm)Bottom (cm)Top Depth (m)Top MCD (m)Volume (cc)RequestIGSNSampleComments
4 W --- 53 56 451,1 451,1 65 MSP0001 BGRB5011RXT6001 1040 thin section /chemical analysis, destructive
5 W --- 0 3 451,13 451,13 65 MSP0004 BGRB5011RXP2001 892 half core for physical properties, sample will be drilled, but not destroyed
6 W --- 7 10 451,47 451,47 65 MSP0002 BGRB5011RXLB001 1212 melt clast surrounded by white veins
