Core:

ExpeditionSiteHoleCoreGearTypeTop Depth (m)Drilled LengthBottom DepthMCD OffsetRecoveryRecovery(%)OrientedSectionsCore CatcherCuratorIGSNComments
ELGYGY 1 C 154 RIG Q 446,69 2,39 449,08 0 2,38 99,581589958159 yes 2 yes NN BGRB5011RCB4001 Gay green rock with white and pink cross cutting layers, box 16

Sections:

SectionSection LengthCurated LengthTop Depth (m)Bottom Depth (m)CuratorCCMCD TopBoxSlotPositionIGSNComments

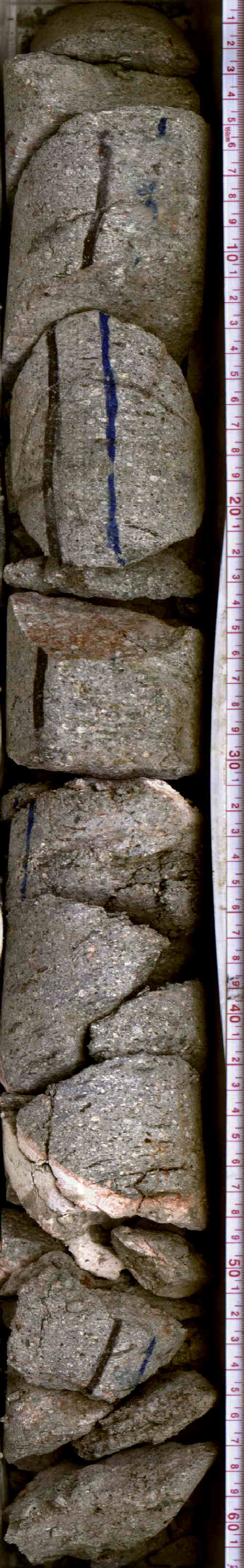

1 0,51 0,51 446,69 447,2 NN no 446,69 16 1 T BGRB5011RSGI001

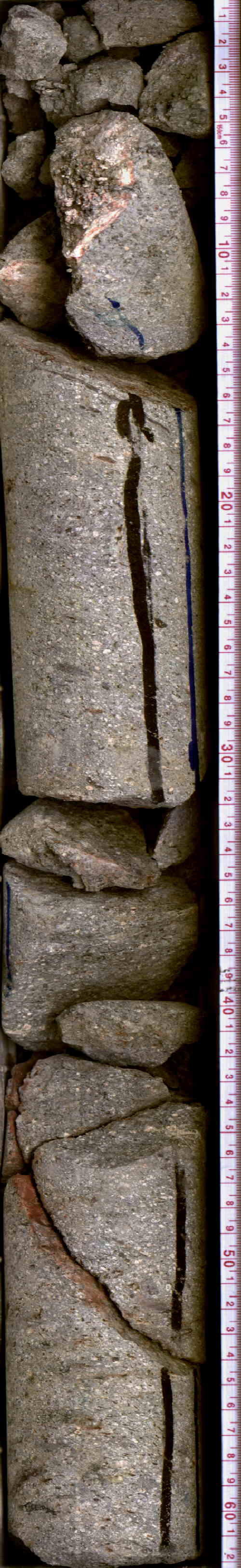

2 0,52 0,52 447,2 447,72 NN no 447,2 16 2 M BGRB5011RSHI001

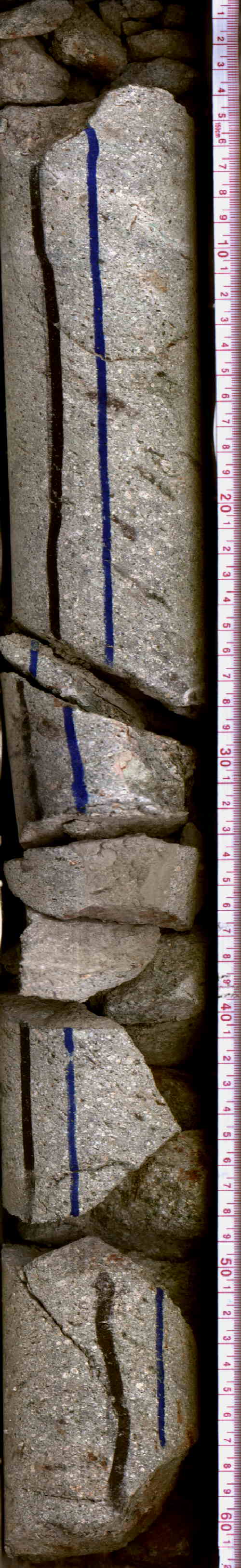

3 0,54 0,54 447,72 448,26 NN no 447,72 16 3 M BGRB5011RSII001

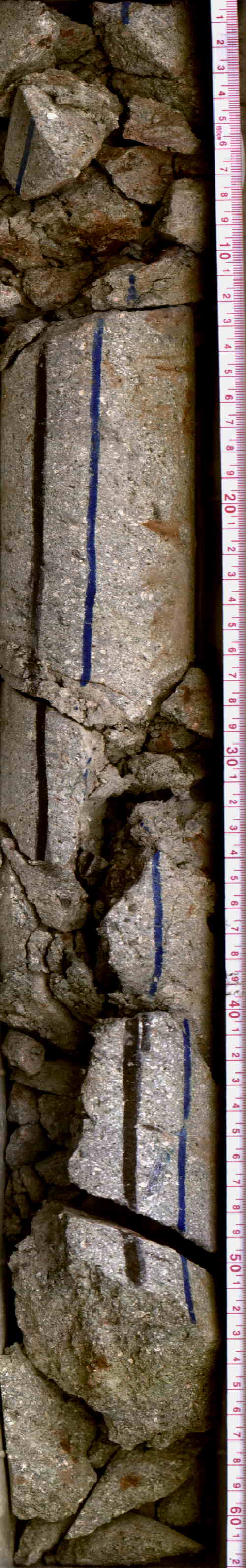

4 0,55 0,55 448,26 448,81 NN no 448,26 16 4 M BGRB5011RSJI001

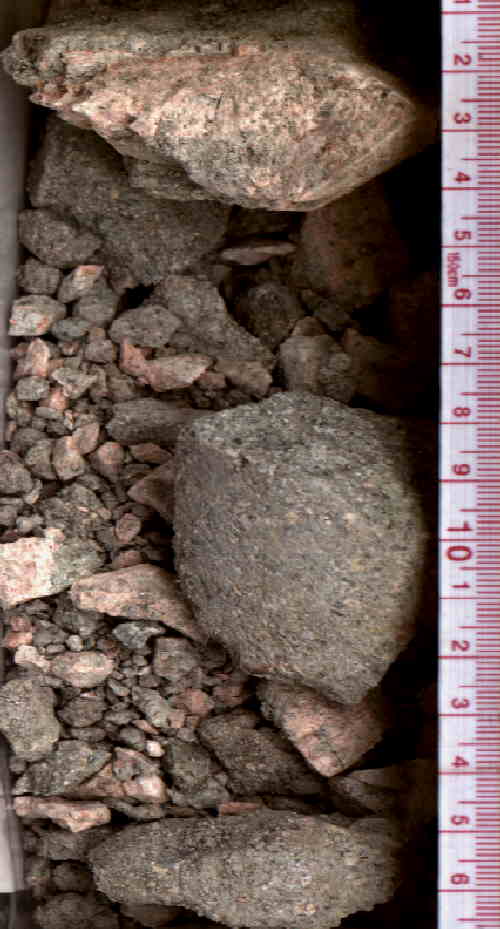

5 0,1 0,1 448,81 448,91 NN yes 448,81 16 5 M BGRB5011RSKI001

Measurements, descriptions and images:

SectionMSCL-Meas.Spectro-Meas.XRF-LightXRF-MediumXRF-HeavySection Desc.VCD-FileThin Sections360° ScanSlabbed Scan
1 X X X
2 X X X
3 X X X
4 X X X
5 X X X X

Samples:

SectionHalfTypeTop (cm)Bottom (cm)Top Depth (m)Top MCD (m)Volume (cc)RequestIGSNSampleComments
2 W --- 15 16 447,35 447,35 0 MSP0001 BGRB5011RX29401 5510
3 W --- 15 20 447,87 447,87 65 MSP0003 BGRB5011RX54001 944 thick and thin section, non destructive
3 W --- 18 21 447,9 447,9 65 MSP0004 BGRB5011RXO2001 891 half core for physical properties, sample will be drilled, but not destroyed
3 W --- 20 22 447,92 447,92 65 MSP0002 BGRB5011RXKB001 1211
4 W --- 14 28 448,4 448,4 65 MSP0001 BGRB5011RXS6001 1039 thin section /chemical analysis, destructive
