Core:

ExpeditionSiteHoleCoreGearTypeTop Depth (m)Drilled LengthBottom DepthMCD OffsetRecoveryRecovery(%)OrientedSectionsCore CatcherCuratorIGSNComments
ELGYGY 1 C 151 RIG Q 440,04 2 442,04 0 2,12 106 no 3 yes NN BGRB5011RC84001 Reamed 2.00 m, recovery 2.12 m (scattered rock) box 13 and 14

Sections:

SectionSection LengthCurated LengthTop Depth (m)Bottom Depth (m)CuratorCCMCD TopBoxSlotPositionIGSNComments

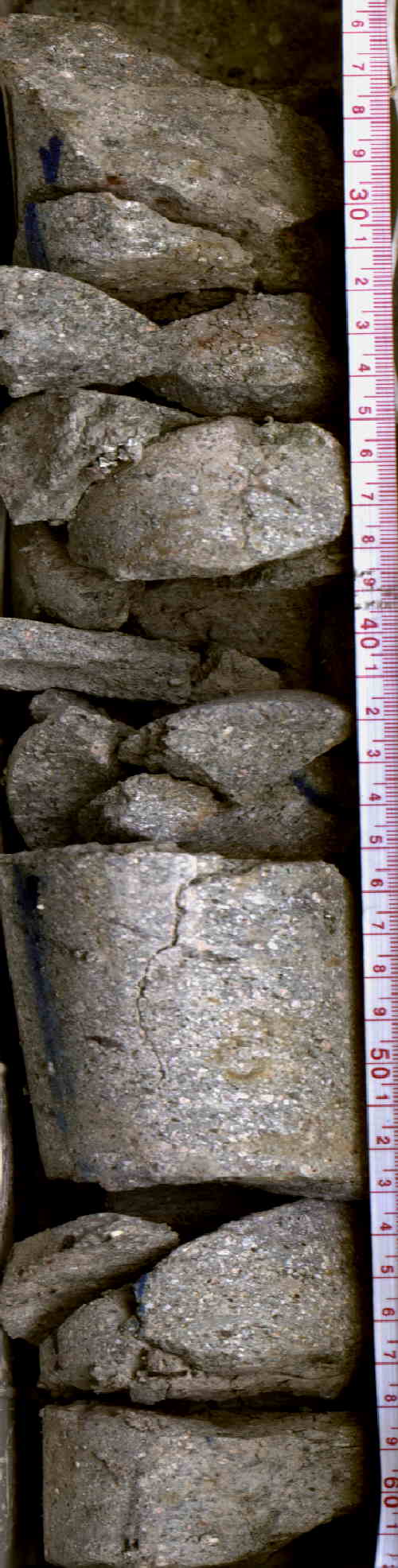

1 0,32 0,32 440,04 440,36 NN no 440,04 13 3 M BGRB5011RSZH001

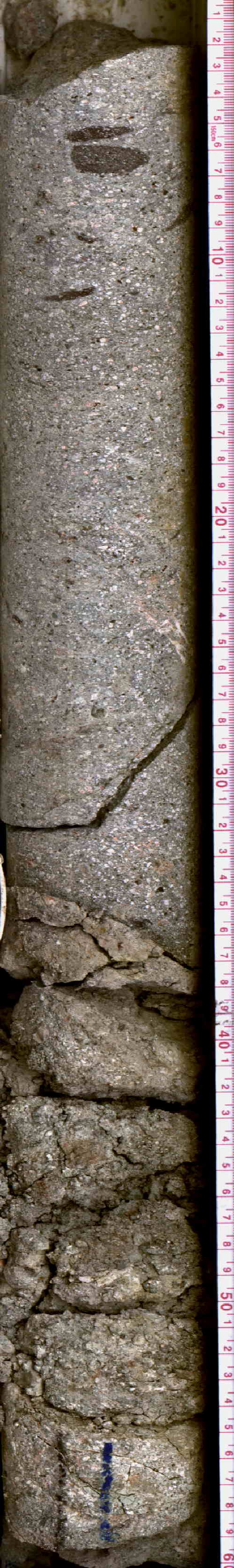

2 0,56 0,56 440,36 440,92 NN no 440,36 13 4 M BGRB5011RS0I001

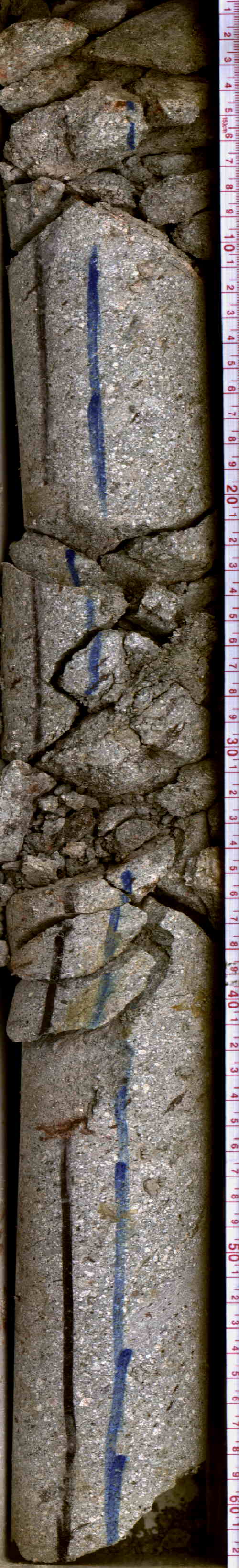

3 0,57 0,57 440,92 441,49 NN no 440,92 13 5 B BGRB5011RS1I001

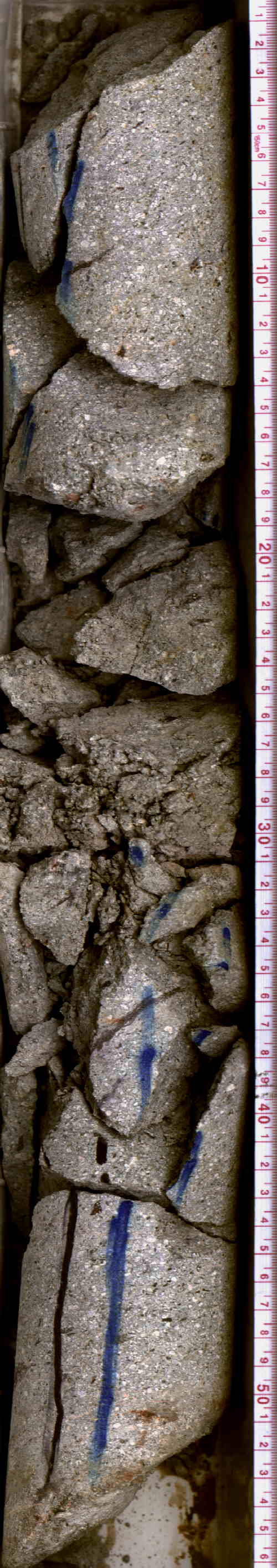

4 0,46 0,46 441,49 441,95 NN no 441,49 14 1 T BGRB5011RS2I001

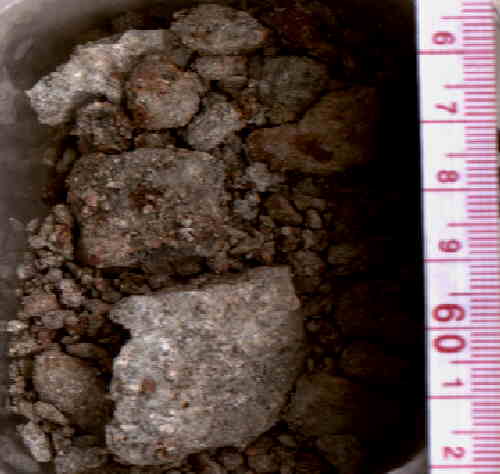

5 0,02 0,02 441,95 441,97 NN yes 441,95 14 1 M BGRB5011RS3I001

Measurements, descriptions and images:

SectionMSCL-Meas.Spectro-Meas.XRF-LightXRF-MediumXRF-HeavySection Desc.VCD-FileThin Sections360° ScanSlabbed Scan
1 X X X
2 X X X
3 X X X
4 X X X
5 X X X

Samples:

SectionHalfTypeTop (cm)Bottom (cm)Top Depth (m)Top MCD (m)Volume (cc)RequestIGSNSampleComments
2 W --- 5 7 440,41 440,41 65 MSP0002 BGRB5011RXFB001 1206 'lilla' melt layered clast in breccia
2 W --- 18 21 440,54 440,54 65 MSP0004 BGRB5011RXG1001 847 half core for physical properties, sample will be drilled, but not destroyed, high priority
2 W --- 45 50 440,81 440,81 65 MSP0001 BGRB5011RXL6001 1032 thin section /chemical analysis, destructive, remains in storage (BGR)
3 W --- 50 57 441,42 441,42 65 MSP0001 BGRB5011RXM6001 1033 thin section /chemical analysis, destructive, remains in storage (BGR)
