Core:

ExpeditionSiteHoleCoreGearTypeTop Depth (m)Drilled LengthBottom DepthMCD OffsetRecoveryRecovery(%)OrientedSectionsCore CatcherCuratorIGSNComments
ELGYGY 1 C 146 RIG Q 429,17 1,79 430,96 0 2,14 119,553072625698 no 3 yes NN BGRB5011RC34001 Recovery 180 cm + 9 cm CC

Sections:

SectionSection LengthCurated LengthTop Depth (m)Bottom Depth (m)CuratorCCMCD TopBoxSlotPositionIGSNComments

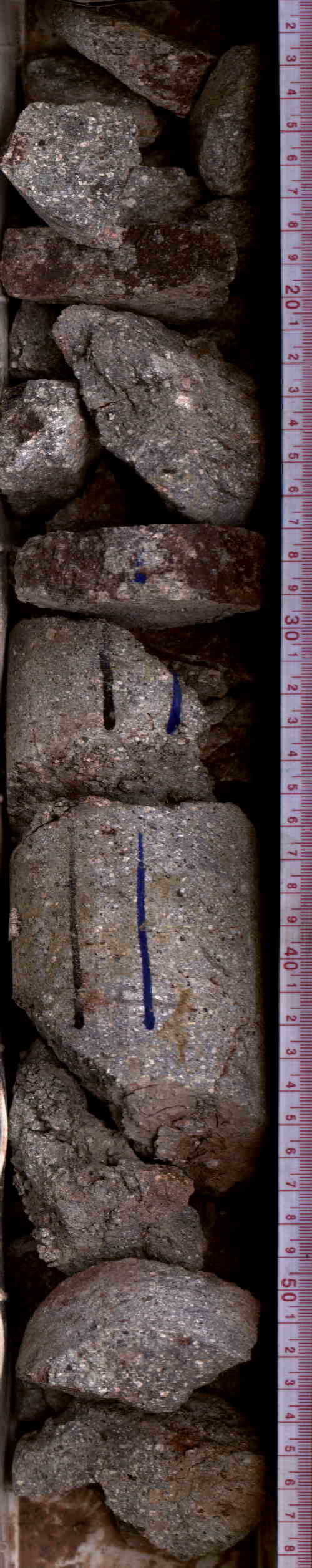

1 0,42 0,42 429,17 429,59 NN no 429,17 9 3 M BGRB5011RSAH001 sec 2 = sec 2 +CC, sec1: box 9, sec2 +CC: box 10

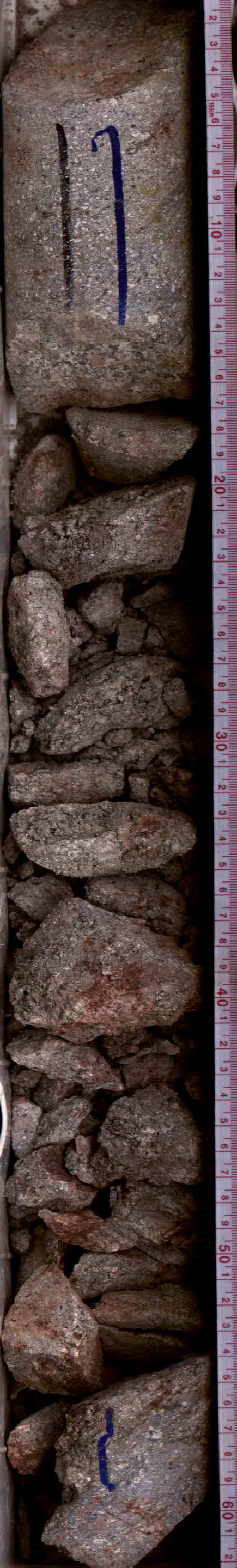

2 0,56 0,56 429,59 430,15 NN no 429,59 9 4 M BGRB5011RSBH001

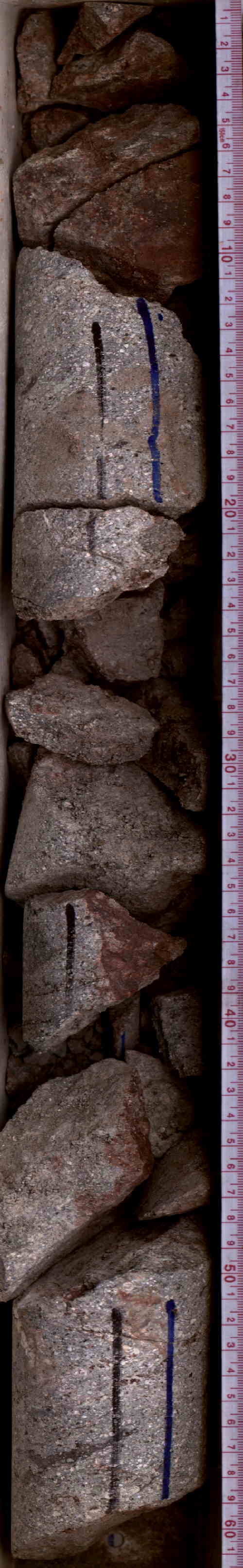

3 0,55 0,55 430,15 430,7 NN no 430,15 9 5 B BGRB5011RSCH001

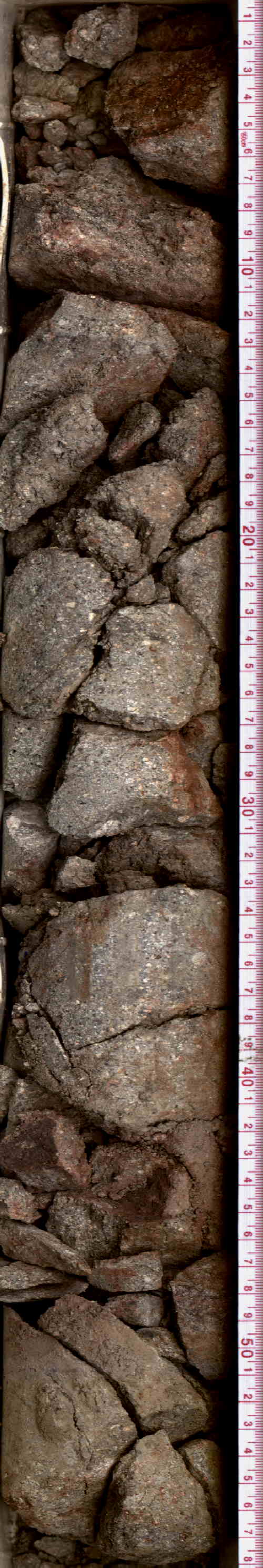

4 0,56 0,56 430,7 431,26 NN no 430,7 10 1 T BGRB5011RSDH001

Measurements, descriptions and images:

SectionMSCL-Meas.Spectro-Meas.XRF-LightXRF-MediumXRF-HeavySection Desc.VCD-FileThin Sections360° ScanSlabbed Scan
1 X X X
2 X X X
3 X X X
4 X X X

Samples:

SectionHalfTypeTop (cm)Bottom (cm)Top Depth (m)Top MCD (m)Volume (cc)RequestIGSNSampleComments
1 W --- 23 32 429,4 429,4 65 MSP0001 BGRB5011RX96001 1020 thin section /chemical analysis, destructive
2 W --- 0 3 429,59 429,59 65 MSP0004 BGRB5011RXF2001 882 half core for physical properties, sample will be drilled, but not destroyed
2 W --- 11 14 429,7 429,7 65 MSP0002 BGRB5011RX3B001 1194 breccia (for statistics)
3 W --- 10 20 430,25 430,25 65 MSP0001 BGRB5011RXA6001 1021 thin section /chemical analysis, destructive, remains in storage (BGR)
3 W --- 39 41 430,54 430,54 65 MSP0002 BGRB5011RX4B001 1195
3 W --- 52 55 430,67 430,67 65 MSP0004 BGRB5011RXG2001 883 half core for physical properties, sample will be drilled, but not destroyed
4 W --- 9 11 430,79 430,79 65 MSP0002 BGRB5011RX5B001 1196 red vein of alteration
