Core:

ExpeditionSiteHoleCoreGearTypeTop Depth (m)Drilled LengthBottom DepthMCD OffsetRecoveryRecovery(%)OrientedSectionsCore CatcherCuratorIGSNComments
ELGYGY 1 C 139 RIG Q 413,28 3 416,28 0 2,5 83,3333333333333 no 5 yes NN BGRB5011RCW3001 Total recovery measured in splits 2.34 m, cores in box 4

Sections:

SectionSection LengthCurated LengthTop Depth (m)Bottom Depth (m)CuratorCCMCD TopBoxSlotPositionIGSNComments

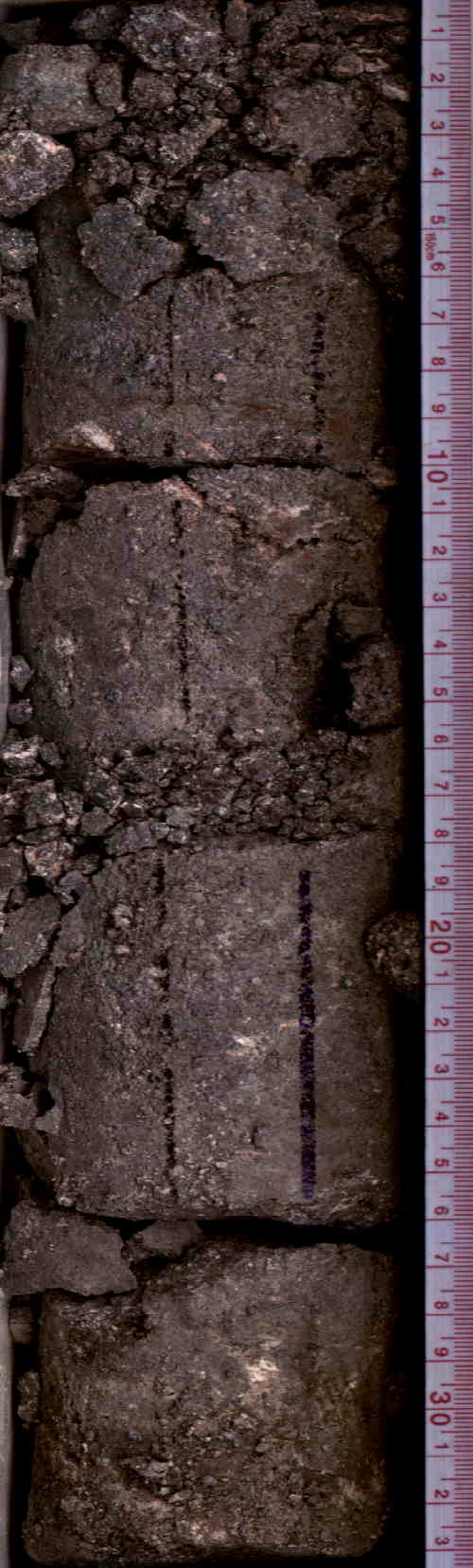

1 0,325 0,325 413,28 413,605 NN no 413,28 4 1 T BGRB5011RSZF001 red brown weathered rock fairly solid but not fully lithified. Larger gravel and more lithified in section 8. sec 7= sec 7 28.5 (2.04) and sec 8 31.4 (2.15)

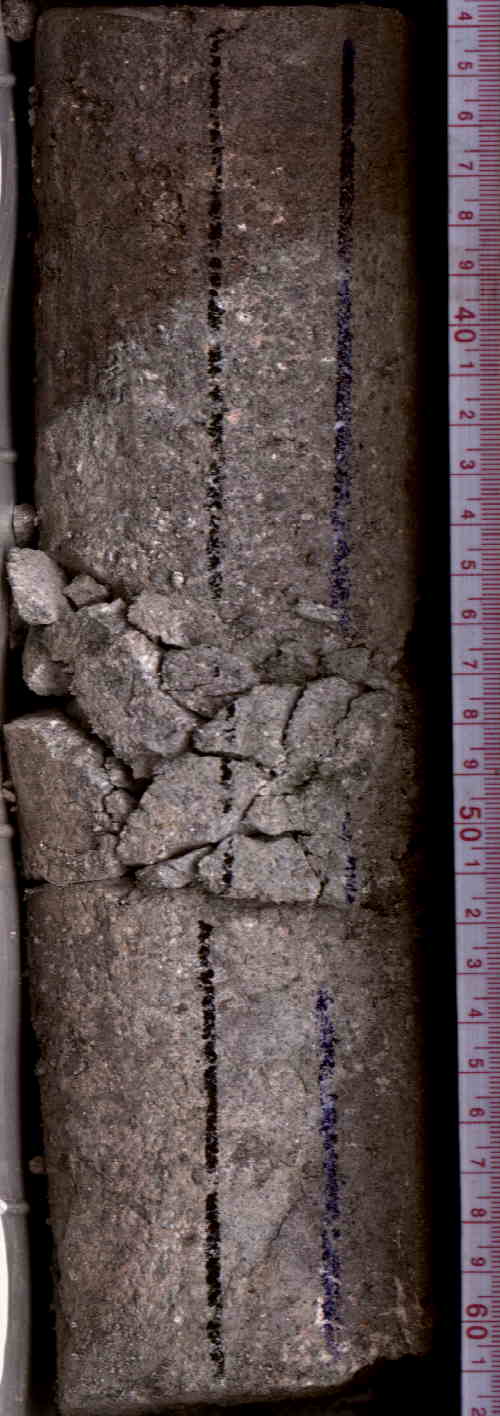

2 0,28 0,28 413,605 413,885 NN no 413,605 4 1 M BGRB5011RS0G001 red brown weathered rock fairly solid but not fully lithified. Larger gravel and more lithified in section 8. sec 7= sec 7 28.5 (2.04) and sec 8 31.4 (2.15)
3 0,292 0,292 413,885 414,177 NN no 413,885 4 2 M BGRB5011RS1G001 red brown weathered rock fairly solid but not fully lithified. Larger gravel and more lithified in section 8. sec 7= sec 7 28.5 (2.04) and sec 8 31.4 (2.15)

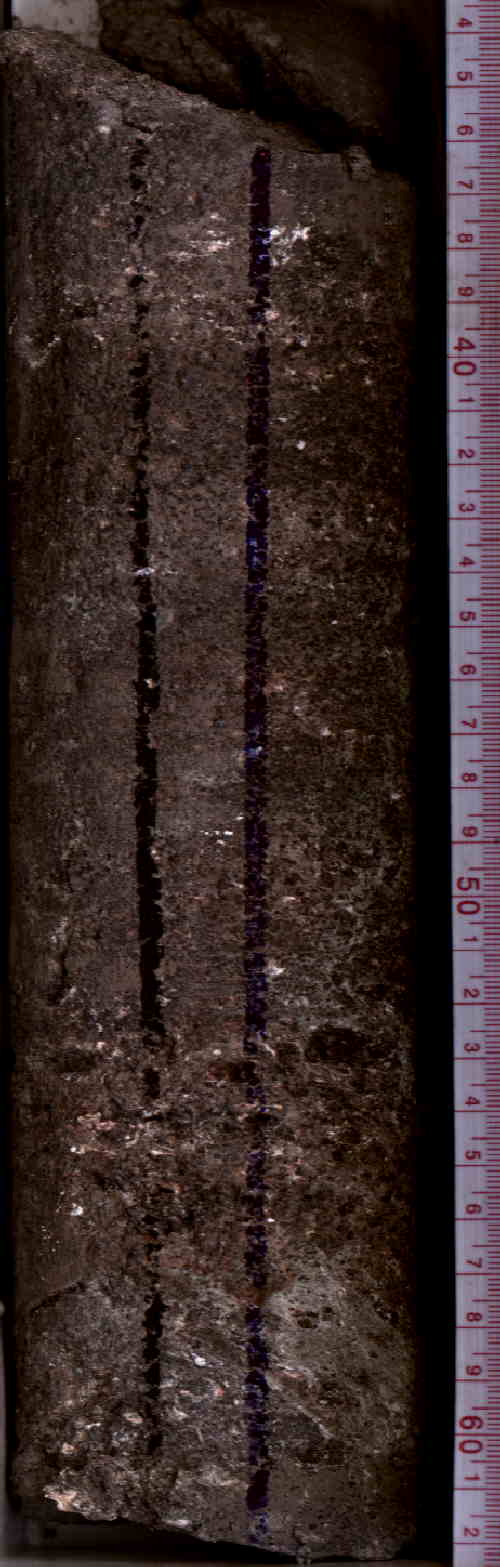

4 0,279 0,279 414,177 414,456 NN no 414,177 4 2 M BGRB5011RS2G001 red brown weathered rock fairly solid but not fully lithified. Larger gravel and more lithified in section 8. sec 7= sec 7 28.5 (2.04) and sec 8 31.4 (2.15)

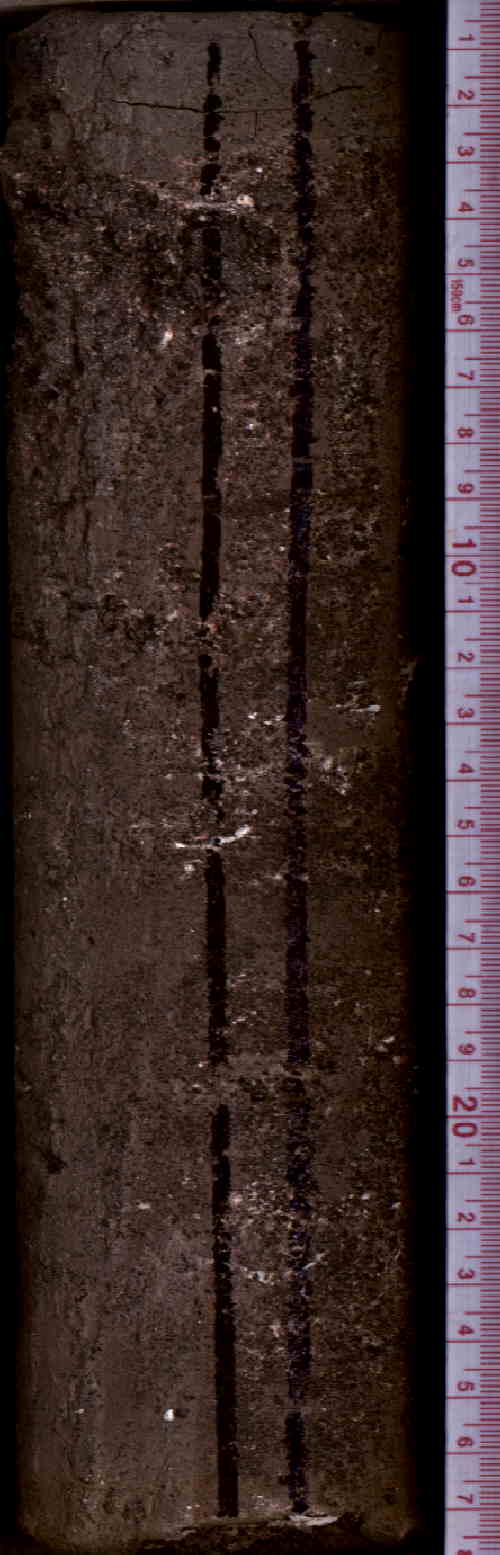

5 0,28 0,28 414,456 414,736 NN no 414,456 4 3 M BGRB5011RS3G001

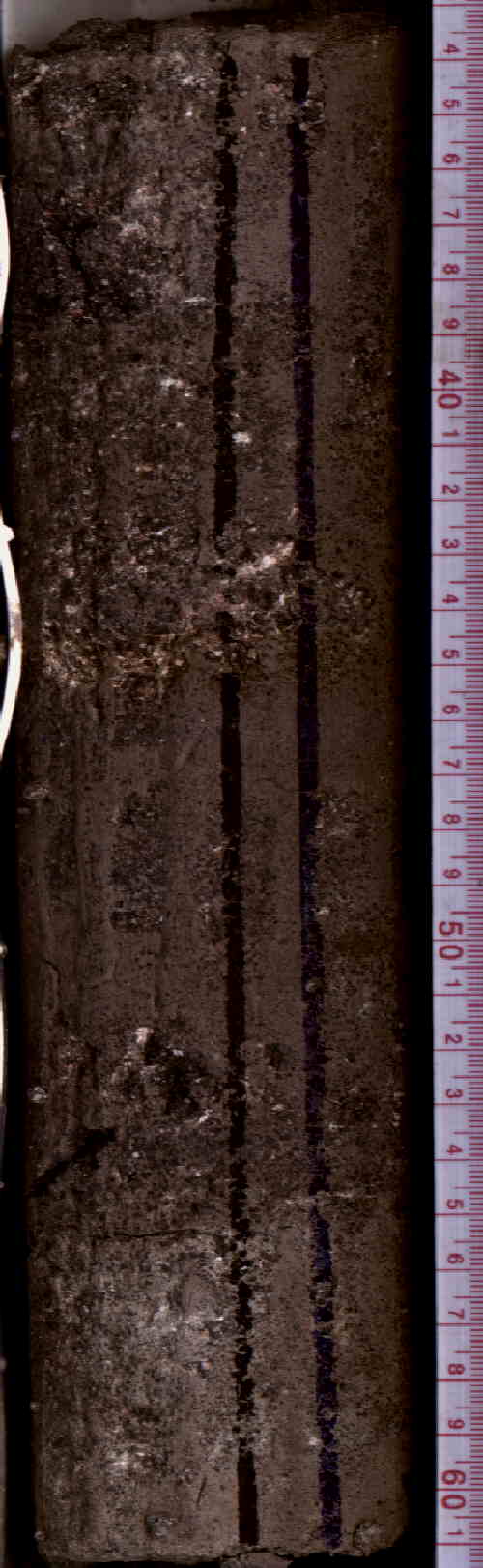

6 0,29 0,29 414,736 415,026 NN no 414,736 4 3 M BGRB5011RS4G001

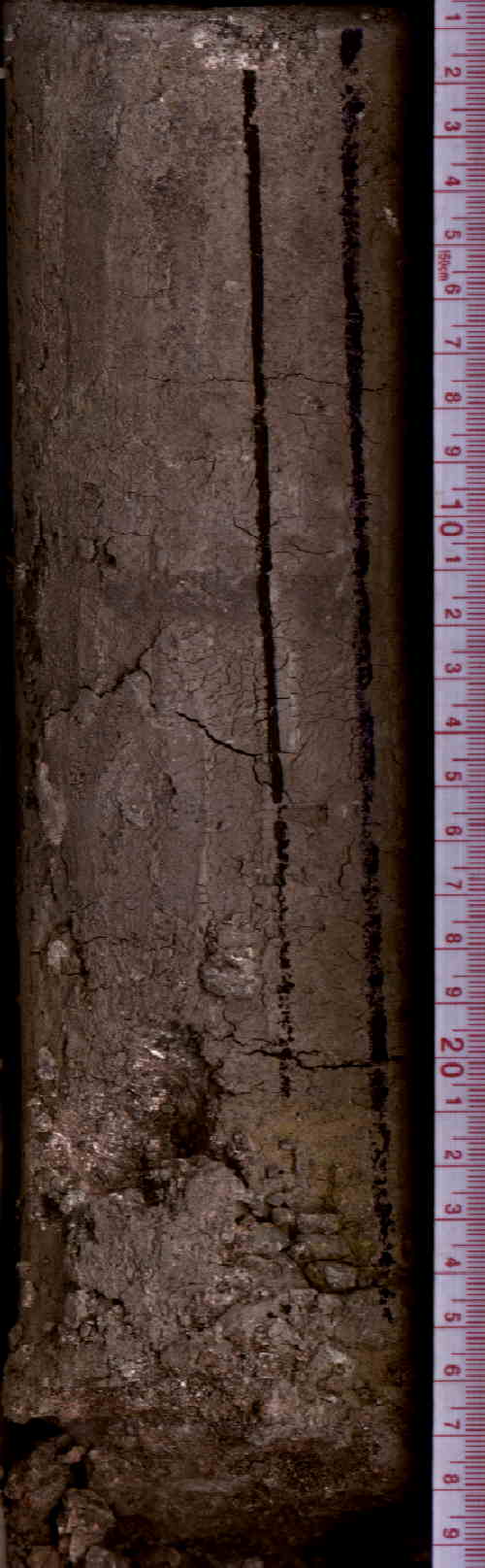

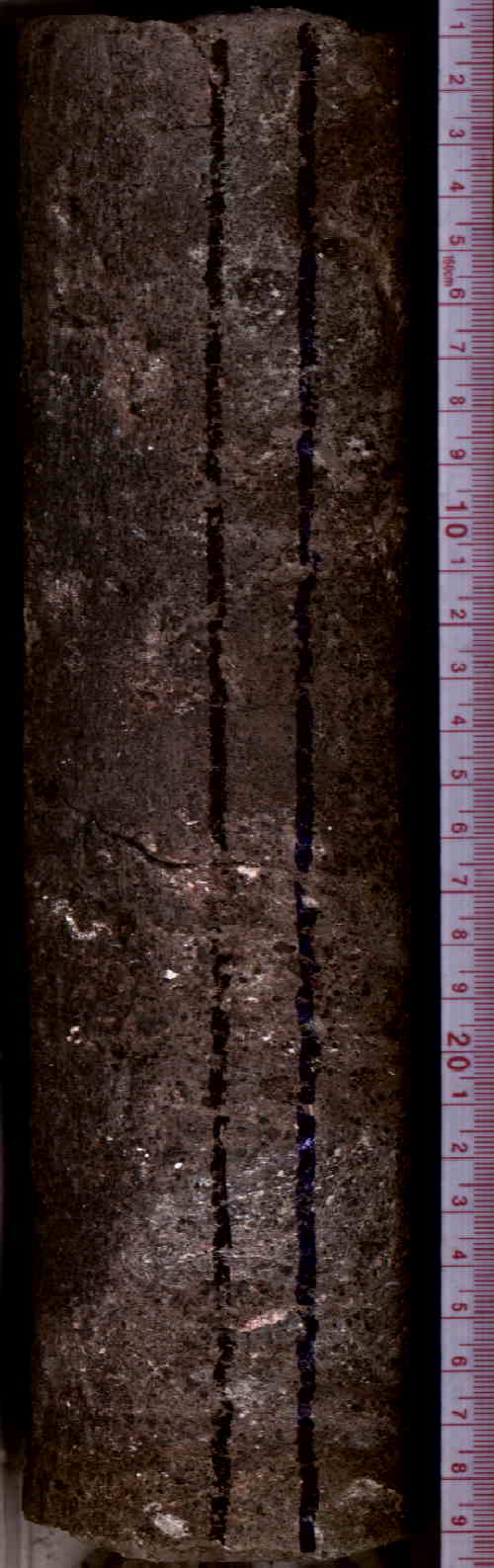

7 0,28 0,28 415,026 415,306 NN no 415,026 4 4 M BGRB5011RS5G001

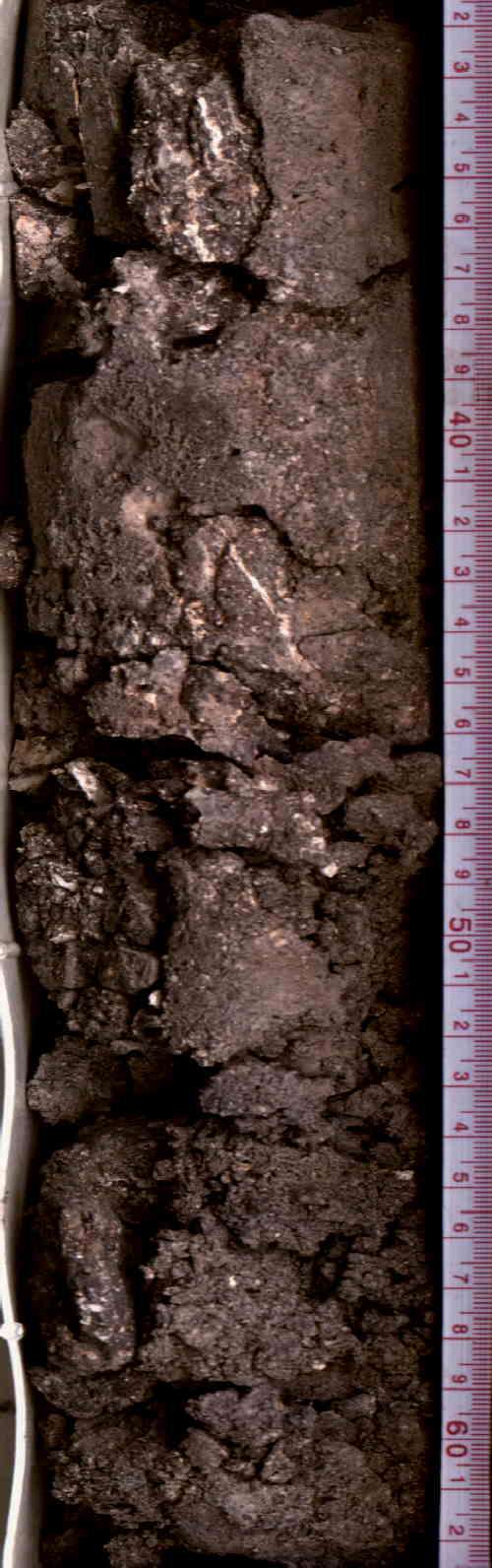

8 0,29 0,29 415,306 415,596 NN no 415,306 4 4 M BGRB5011RS6G001

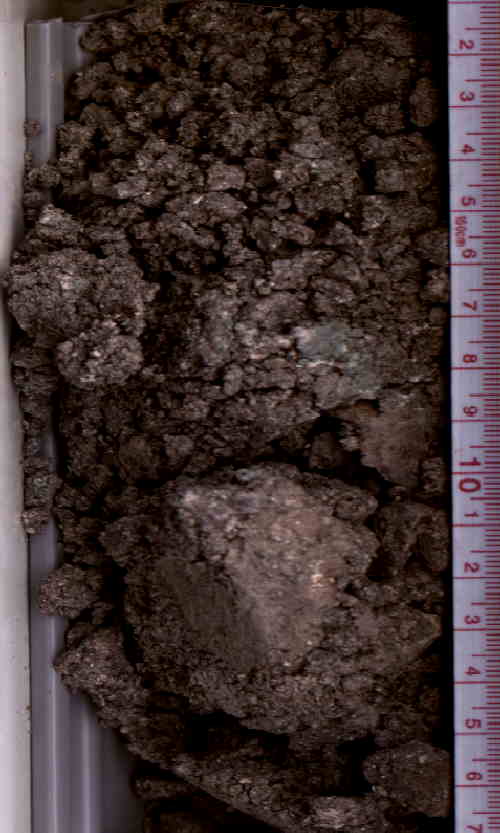

9 0,187 0,187 415,596 415,783 NN yes 415,596 4 5 B BGRB5011RS7G001

Measurements, descriptions and images:

SectionMSCL-Meas.Spectro-Meas.XRF-LightXRF-MediumXRF-HeavySection Desc.VCD-FileThin Sections360° ScanSlabbed Scan
1 X X X
2 X X X
3 X X X
4 X X X X
5 X X X
6 X X X
7 X X X
8 X X X
9 X X X

Samples:

SectionHalfTypeTop (cm)Bottom (cm)Top Depth (m)Top MCD (m)Volume (cc)RequestIGSNSampleComments
1 W --- 18 25 413,46 413,46 65 MSP0001 BGRB5011RXS5001 1003 thin section /chemical analysis, destructive, remains in storage (BGR)
2 W --- 5 7 413,655 413,655 65 MSP0001 BGRB5011RXT5001 1004 thin section /chemical analysis, destructive, remains in storage (BGR)
2 W --- 6 9 413,665 413,665 65 MSP0002 BGRB5011RXIA001 1173 contact between red and grey 'formation'
2 W --- 15 17 413,755 413,755 65 MSP0001 BGRB5011RXU5001 1005 thin section /chemical analysis, destructive, remains in storage (BGR)
4 W --- 0 3 414,177 414,177 65 MSP0004 BGRB5011RXE1001 845 half core for physical properties, sample will be drilled, but not destroyed, high priority
4 W --- 15 22 414,327 414,327 65 MSP0001 BGRB5011RXV5001 1006 thin section /chemical analysis, destructive
5 W --- 7 9 414,526 414,526 65 MSP0002 BGRB5011RXJA001 1174 black melt clast in red complex breccia
6 W --- 4 6 414,776 414,776 65 MSP0002 BGRB5011RXKA001 1175
7 W --- 9 10 415,116 415,116 65 MSP0005 BGRB5011RXI0001 813 texture and mineralogy comparison with lake sediments, destructive
7 W --- 16 18 415,186 415,186 65 MSP0002 BGRB5011RXLA001 1176 brown lithology, covered by clay (drilling ber
