Core:

ExpeditionSiteHoleCoreGearTypeTop Depth (m)Drilled LengthBottom DepthMCD OffsetRecoveryRecovery(%)OrientedSectionsCore CatcherCuratorIGSNComments
ELGYGY 1 C 126 RIG Q 390,74 1,96 392,7 0 1,61 82,1428571428571 no 4 yes NN BGRB5011RCJ3001 Top of the core is very sandy moving into rock with large pink clasts

Sections:

SectionSection LengthCurated LengthTop Depth (m)Bottom Depth (m)CuratorCCMCD TopBoxSlotPositionIGSNComments

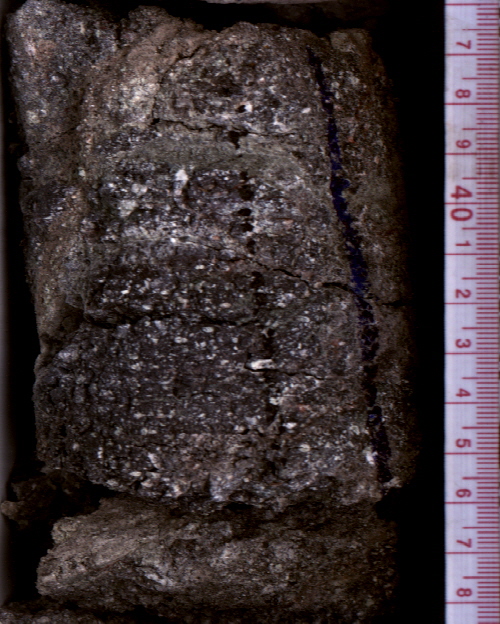

1 0,105 0,105 390,74 390,845 UR no 390,74 115 2 M BGRB5011RSRE001

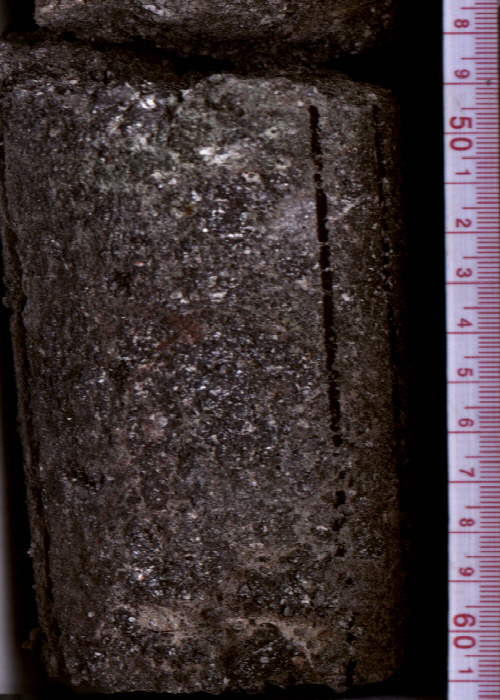

2 0,13 0,13 390,845 390,975 UR no 390,845 115 2 M BGRB5011RSSE001

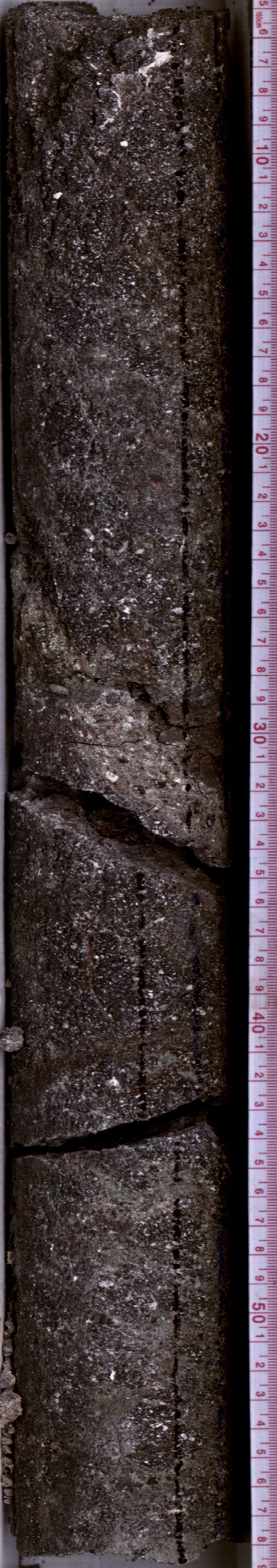

3 0,545 0,545 390,975 391,52 UR no 390,975 115 3 M BGRB5011RSTE001
4 0,265 0,265 391,52 391,785 UR no 391,52 115 4 M BGRB5011RSUE001

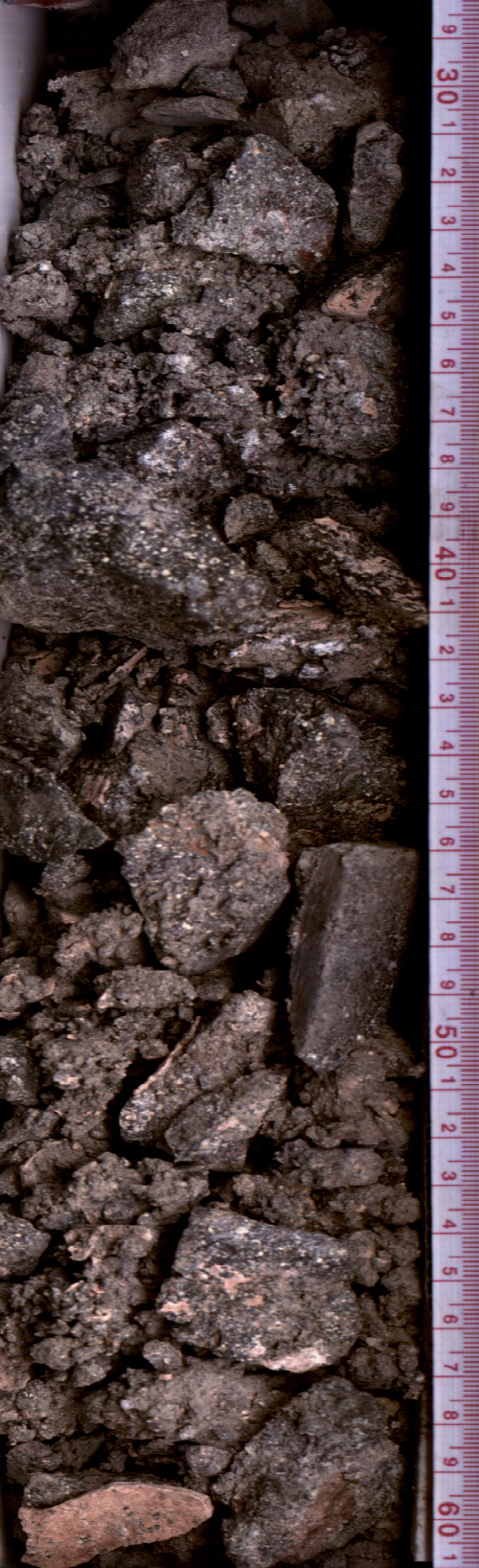

5 0,325 0,325 391,785 392,11 UR no 391,785 115 4 M BGRB5011RSVE001

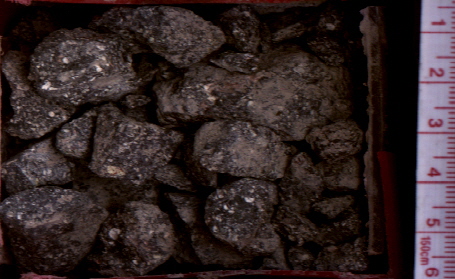

6 0,05 0,05 392,11 392,16 UR yes 392,11 115 5 M BGRB5011RSWE001

Measurements, descriptions and images:

SectionMSCL-Meas.Spectro-Meas.XRF-LightXRF-MediumXRF-HeavySection Desc.VCD-FileThin Sections360° ScanSlabbed Scan
1 X X X
2 X X X
3 X X X
4 X X X
5 X X X X
6 X X X

Samples:

SectionHalfTypeTop (cm)Bottom (cm)Top Depth (m)Top MCD (m)Volume (cc)RequestIGSNSampleComments
2 W --- 0 3 390,845 390,845 65 MSP0004 BGRB5011RXC1001 843 half core for physical properties, sample will be drilled, but not destroyed, high priority
2 W --- 8 12 390,925 390,925 65 MSP0001 BGRB5011RXK5001 995 thin section /chemical analysis, destructive
3 W --- 1 3 390,985 390,985 0 MSP0001 BGRB5011RX49401 5512
3 W --- 6 8 391,035 391,035 65 MSP0002 BGRB5011RX5A001 1160 black melt block
3 W --- 12 15 391,095 391,095 65 MSP0003 BGRB5011RXV3001 934 thick and thin section, non destructive
3 W --- 12 15 391,095 391,095 65 MSP0002 BGRB5011RXZE001 1334 idem, more samples for cooperation
3 W --- 30 37 391,275 391,275 65 MSP0001 BGRB5011RXL5001 996 thin section /chemical analysis, destructive, remains in storage (BGR)
3 W --- 50 53 391,475 391,475 65 MSP0003 BGRB5011RXW3001 935 thick and thin section, non destructive
3 W --- 53 54,5 391,505 391,505 65 MSP0004 BGRB5011RX22001 869 half core for physical properties, sample will be drilled, but not destroyed
4 W --- 13 18 391,65 391,65 65 MSP0008 BGRB5011RXAE001 1309 thin section, bulk chemistry, destructive
4 W --- 17 18 391,69 391,69 65 MSP0002 BGRB5011RX6A001 1161 green clay layer
4 W --- 19 20 391,71 391,71 65 MSP0001 BGRB5011RXM5001 997 thin section /chemical analysis, destructive, remains in storage (BGR)
