Core:

ExpeditionSiteHoleCoreGearTypeTop Depth (m)Drilled LengthBottom DepthMCD OffsetRecoveryRecovery(%)OrientedSectionsCore CatcherCuratorIGSNComments
ELGYGY 1 C 123 RIG Q 383,64 3 386,64 0 2,78 92,6666666666667 no 4 yes NN BGRB5011RCG3001 More lithified sections showing fractures alternate with the less solid clay and sand

Sections:

SectionSection LengthCurated LengthTop Depth (m)Bottom Depth (m)CuratorCCMCD TopBoxSlotPositionIGSNComments

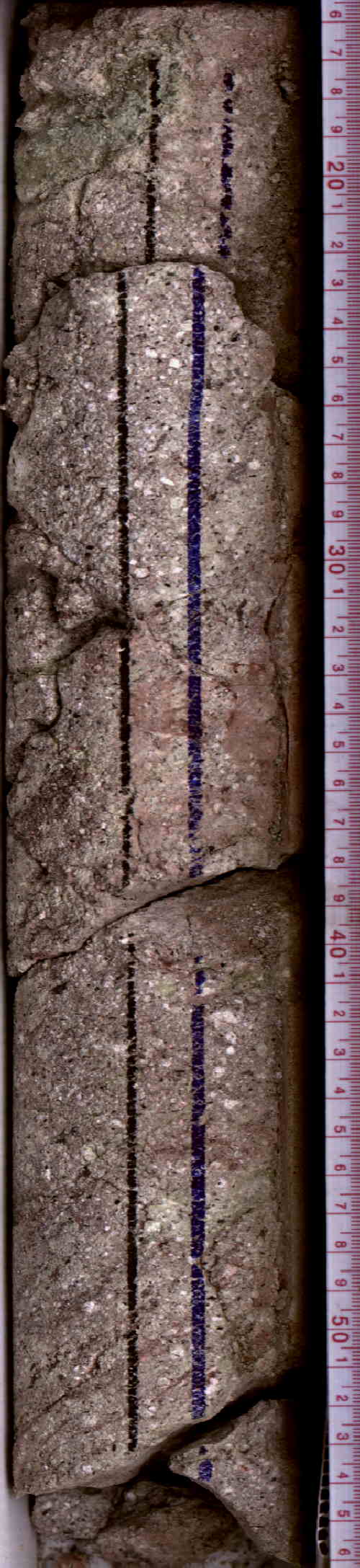

1 0,4 0,4 383,64 384,04 UR no 383,64 113 4 M BGRB5011RSEE001

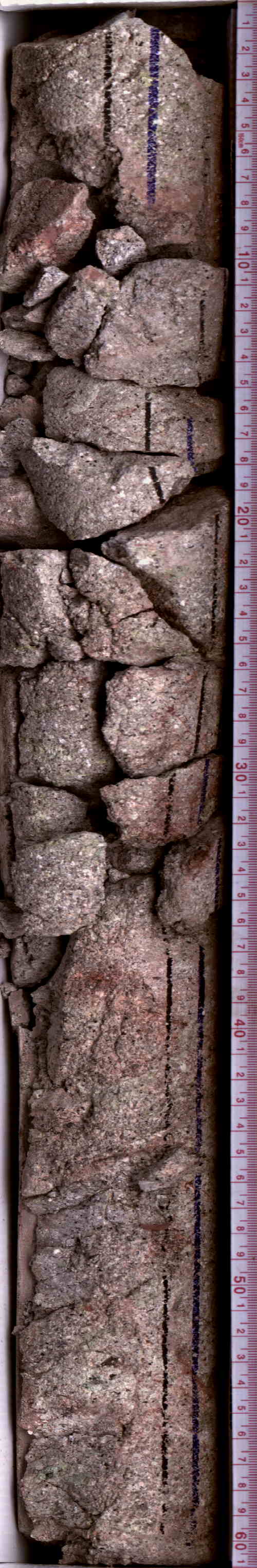

2 0,61 0,61 384,04 384,65 UR no 384,04 113 5 B BGRB5011RSFE001

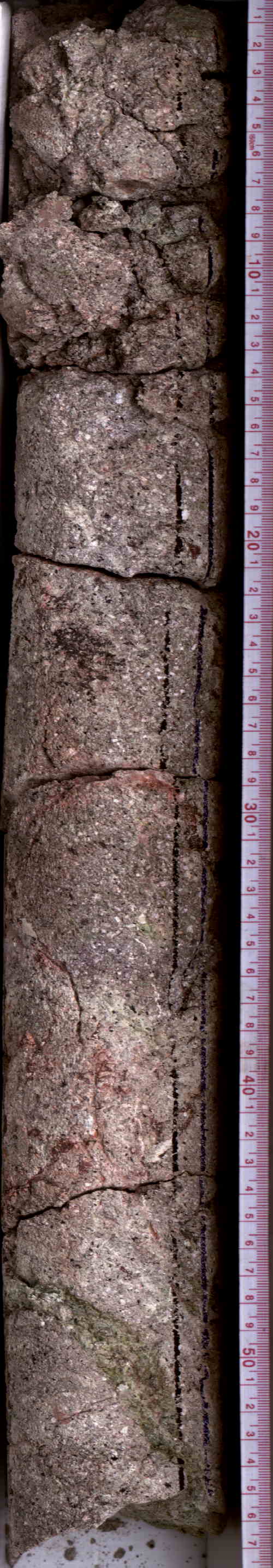

3 0,58 0,58 384,65 385,23 UR no 384,65 114 1 T BGRB5011RSGE001

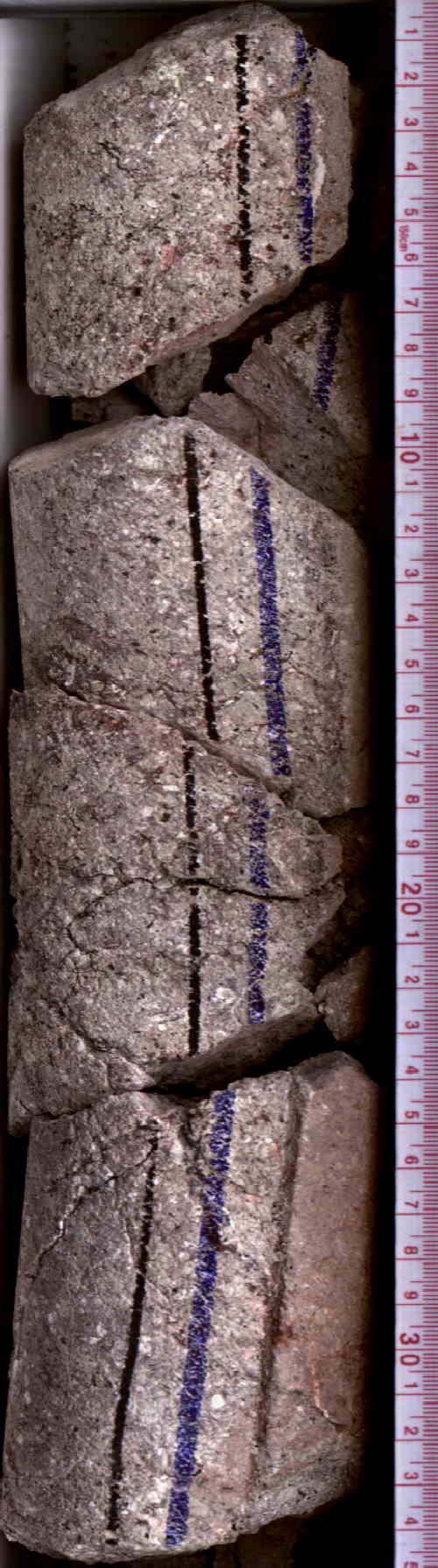

4 0,34 0,34 385,23 385,57 UR no 385,23 114 2 M BGRB5011RSHE001

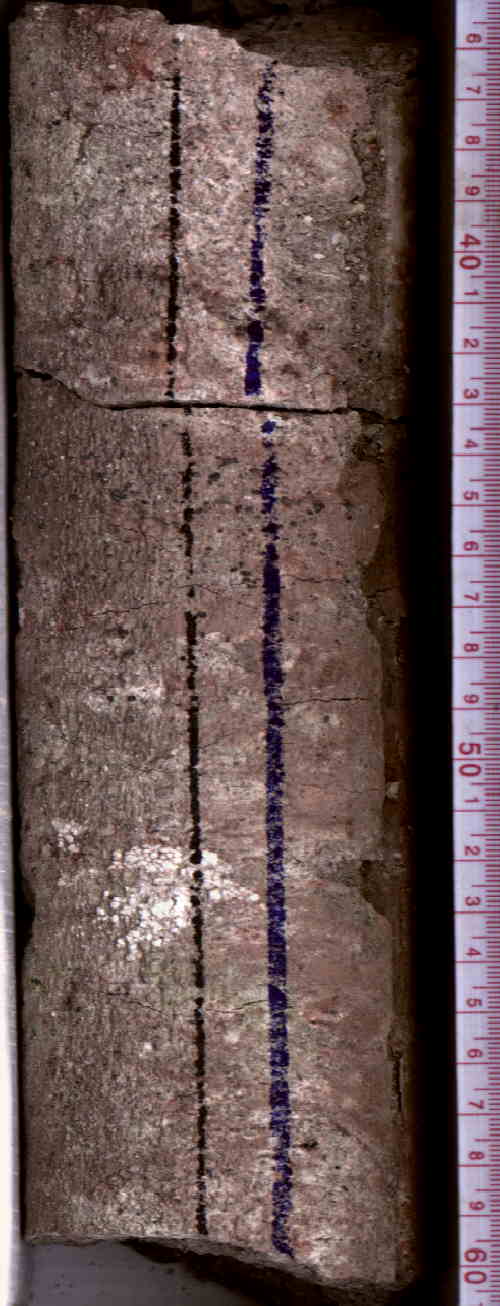

5 0,255 0,255 385,57 385,825 UR no 385,57 114 2 M BGRB5011RSIE001

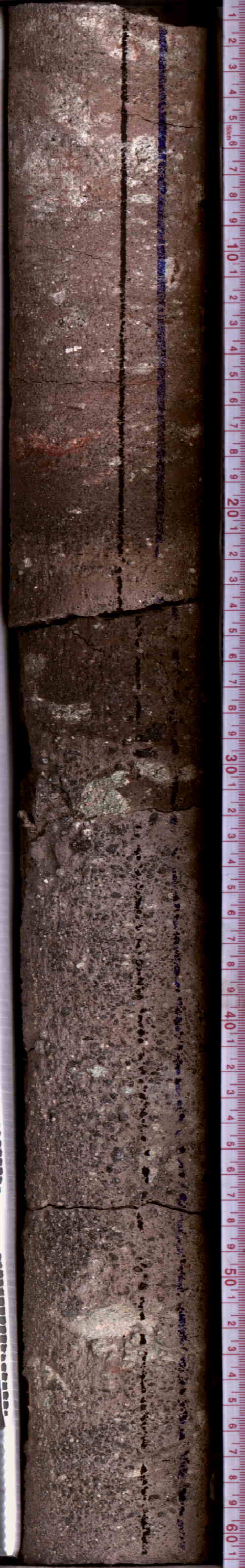

6 0,61 0,61 385,825 386,435 UR no 385,825 114 3 M BGRB5011RSJE001

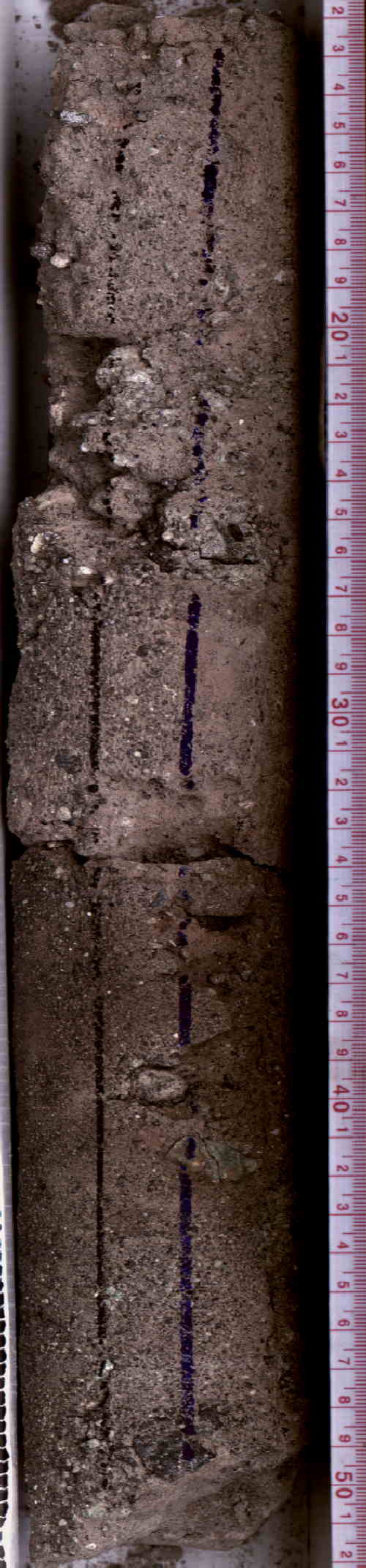

7 0,035 0,035 386,435 386,47 UR yes 386,435 114 4 M BGRB5011RSKE001

Measurements, descriptions and images:

SectionMSCL-Meas.Spectro-Meas.XRF-LightXRF-MediumXRF-HeavySection Desc.VCD-FileThin Sections360° ScanSlabbed Scan
1 X X X
2 X X X
3 X X X
4 X X X
5 X X X
6 X X X
7 X X X

Samples:

SectionHalfTypeTop (cm)Bottom (cm)Top Depth (m)Top MCD (m)Volume (cc)RequestIGSNSampleComments
1 W --- 6 8 383,7 383,7 65 MSP0002 BGRB5011RXZ9001 1154 green clast
1 W --- 22 24 383,86 383,86 65 MSP0002 BGRB5011RX0A001 1155 red breccia with red melt clasts
1 W --- 37 40 384,01 384,01 65 MSP0004 BGRB5011RX02001 867 half core for physical properties, sample will be drilled, but not destroyed
2 W --- 36 39 384,4 384,4 65 MSP0002 BGRB5011RXYE001 1333 breccia with clast of different lithologies
3 W --- 35 37 385 385 65 MSP0002 BGRB5011RX1A001 1156 red breccia with white veins network
4 W --- 25 33 385,48 385,48 65 MSP0001 BGRB5011RXH5001 992 thin section /chemical analysis, destructive, remains in storage (BGR)
5 W --- 10 13 385,67 385,67 65 MSP0003 BGRB5011RXU3001 933 thick and thin section, non destructive
6 W --- 18 21 386,005 386,005 65 MSP0004 BGRB5011RX12001 868 half core for physical properties, sample will be drilled, but not destroyed
6 W --- 27 31 386,095 386,095 65 MSP0002 BGRB5011RX2A001 1157 'sandstone' with black melt clasts
6 W --- 34 39 386,165 386,165 65 MSP0008 BGRB5011RXCE001 1311 thin section, bulk chemistry, destructive
6 W --- 50 60 386,325 386,325 65 MSP0001 BGRB5011RXI5001 993 thin section /chemical analysis, destructive, remains in storage (BGR)
