Core:

ExpeditionSiteHoleCoreGearTypeTop Depth (m)Drilled LengthBottom DepthMCD OffsetRecoveryRecovery(%)OrientedSectionsCore CatcherCuratorIGSNComments
ELGYGY 1 C 108 RIG Q 345,63 3 348,63 0 3,19 106,333333333333 no 4 yes NN BGRB5011RC13001 More lithified toward the bottom

Sections:

SectionSection LengthCurated LengthTop Depth (m)Bottom Depth (m)CuratorCCMCD TopBoxSlotPositionIGSNComments
1 0,53 0,53 345,63 346,16 UR no 345,63 107 1 T BGRB5011RSVC001

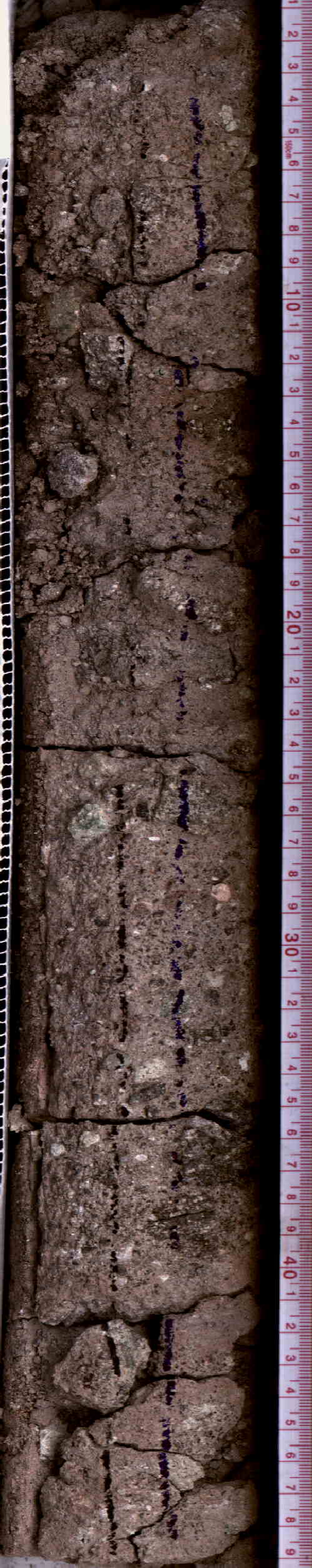

2 0,49 0,49 346,16 346,65 UR no 346,16 107 2 M BGRB5011RSWC001
3 0,5 0,5 346,65 347,15 UR no 346,65 107 3 M BGRB5011RSXC001

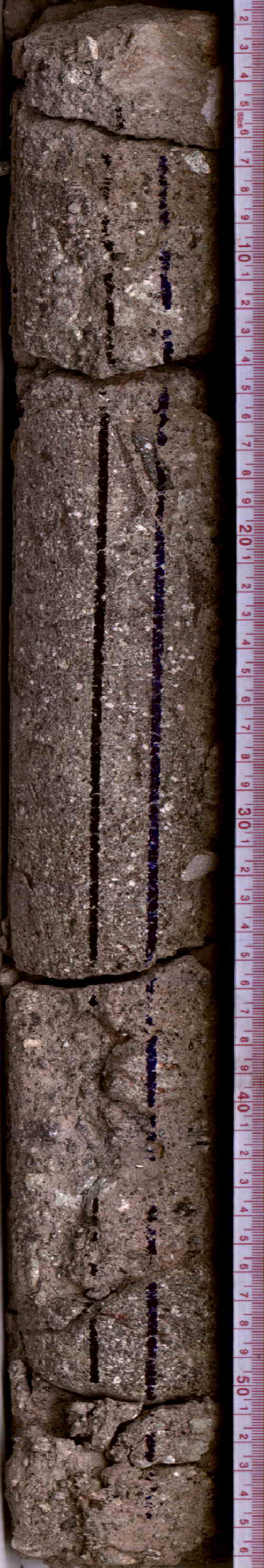

4 0,55 0,55 347,15 347,7 UR no 347,15 107 4 M BGRB5011RSYC001

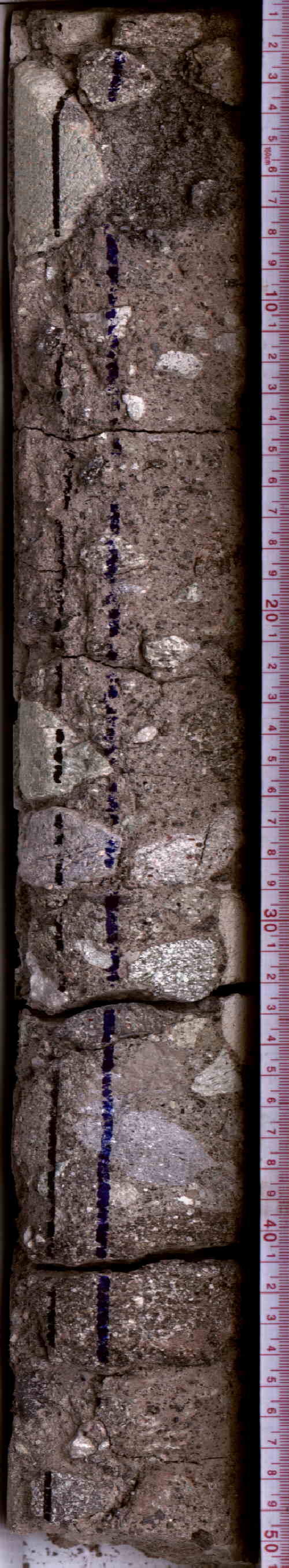

5 0,5 0,5 347,7 348,2 UR no 347,7 107 5 B BGRB5011RSZC001

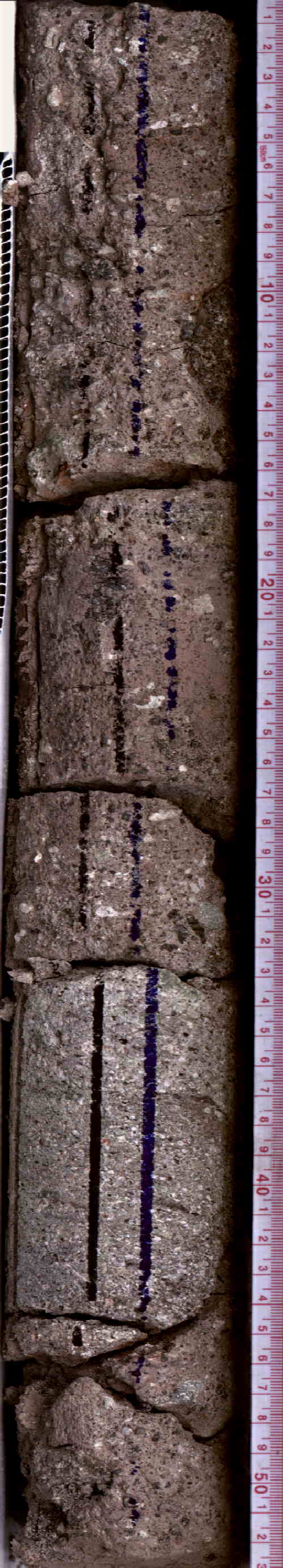

6 0,52 0,52 348,2 348,72 UR no 348,2 108 1 T BGRB5011RS0D001

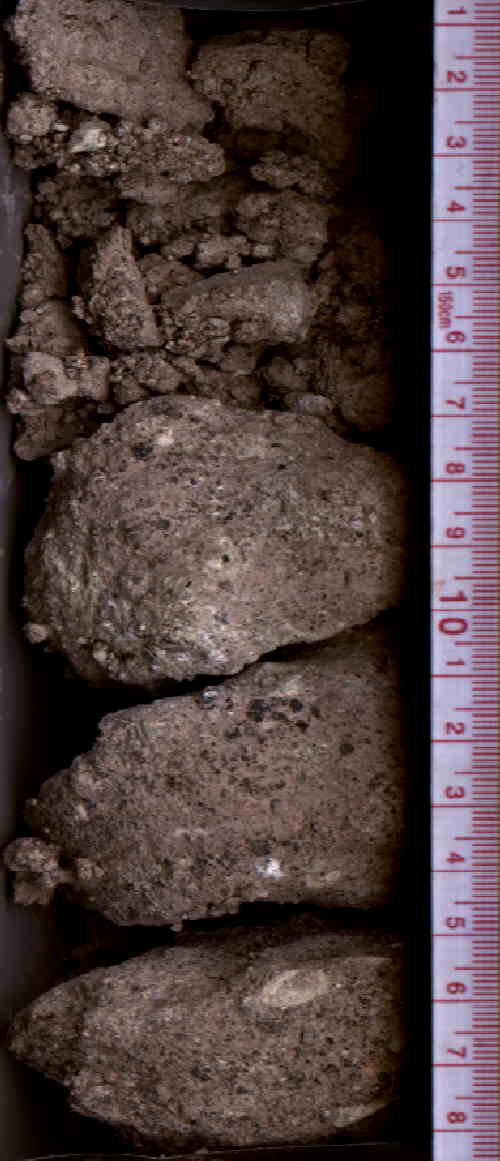

7 0,17 0,17 348,72 348,89 UR yes 348,72 108 2 M BGRB5011RS1D001

Measurements, descriptions and images:

SectionMSCL-Meas.Spectro-Meas.XRF-LightXRF-MediumXRF-HeavySection Desc.VCD-FileThin Sections360° ScanSlabbed Scan
1 X X X
2 X X X
3 X X X
4 X X X X
5 X X X X
6 X X X
7 X X X

Samples:

SectionHalfTypeTop (cm)Bottom (cm)Top Depth (m)Top MCD (m)Volume (cc)RequestIGSNSampleComments
1 W --- 7 8 345,7 345,7 65 MSP0005 BGRB5011RXH0001 812 texture comparison with lake sediments, destructive
1 W --- 40 50 346,03 346,03 65 MSP0001 BGRB5011RXU4001 969 thin section /chemical analysis, destructive
3 W --- 26 28 346,91 346,91 65 MSP0002 BGRB5011RXG9001 1135 white large clast in red sandstone
3 W --- 43 46 347,08 347,08 65 MSP0003 BGRB5011RXQ3001 929 thick and thin section, non destructive
4 W --- 8 11 347,23 347,23 65 MSP0004 BGRB5011RXS1001 859 half core for physical properties, sample will be drilled, but not destroyed
4 W --- 15 20 347,3 347,3 65 MSP0008 BGRB5011RXKE001 1319 thin section, bulk chemistry, destructive
4 W --- 20 27 347,35 347,35 65 MSP0001 BGRB5011RXV4001 970 thin section /chemical analysis, destructive
5 W --- 5 8 347,75 347,75 65 MSP0002 BGRB5011RXXE001 1332 breccia clast in sedimentary breccia
5 W --- 25 33 347,95 347,95 65 MSP0001 BGRB5011RXW4001 971 thin section /chemical analysis, destructive, remains in storage (BGR)
5 W --- 42 47 348,12 348,12 65 MSP0008 BGRB5011RXLE001 1320 thin section, bulk chemistry, destructive
6 W --- 22 33 348,42 348,42 65 MSP0009 BGRB5011RX9F001 1344
6 W --- 38 40 348,58 348,58 65 MSP0002 BGRB5011RXH9001 1136 clast of breccia with elongated red melt clasts
6 W --- 41 45 348,61 348,61 65 MSP0001 BGRB5011RXX4001 972 thin section /chemical analysis, destructive, remains in storage (BGR)
