Core:

Expedition

Site

Hole

Core

Gear

Type

Top Depth (m)

Drilled Length

Bottom Depth

MCD Offset

Recovery

Recovery(%)

Oriented

Sections

Core Catcher

Curator

IGSN

Comments

ELGYGY

1

C

107

RIG

Q

342,63

3

345,63

0

3,17

105,666666666667

no

4

yes

NN

BGRB5011RC03001

Sections:

Section	Section Length	Curated Length	Top Depth (m)	Bottom Depth (m)	Curator	CC	MCD Top	Box	Slot	Position	IGSN	Comments

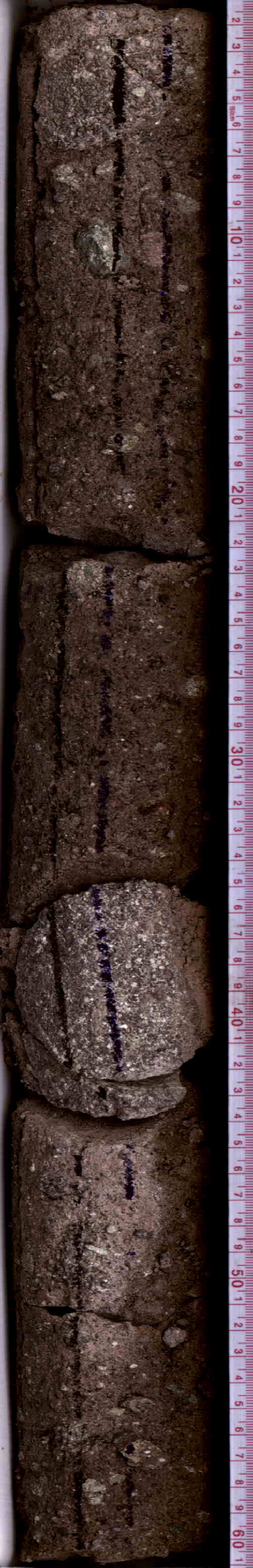

1	0,61	0,61	342,63	343,24	UR	no	342,63	105	5	B	BGRB5011RSMC001	partialy lithified red sand and clay with large clasts

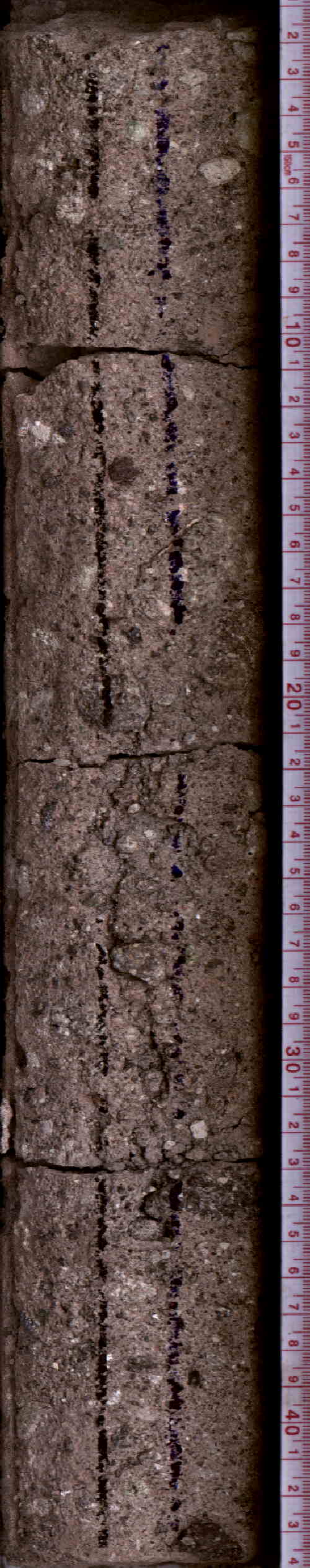

2	0,42	0,42	343,24	343,66	UR	no	343,24	106	1	T	BGRB5011RSNC001

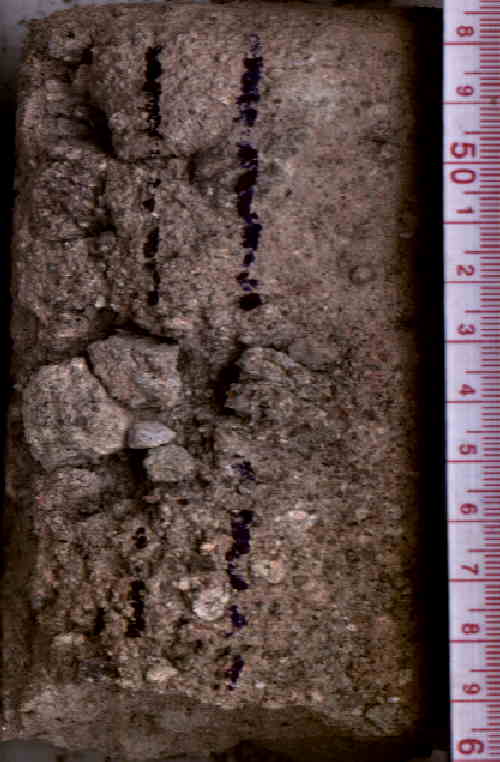

3	0,115	0,115	343,66	343,775	UR	no	343,66	106	1	M	BGRB5011RSOC001

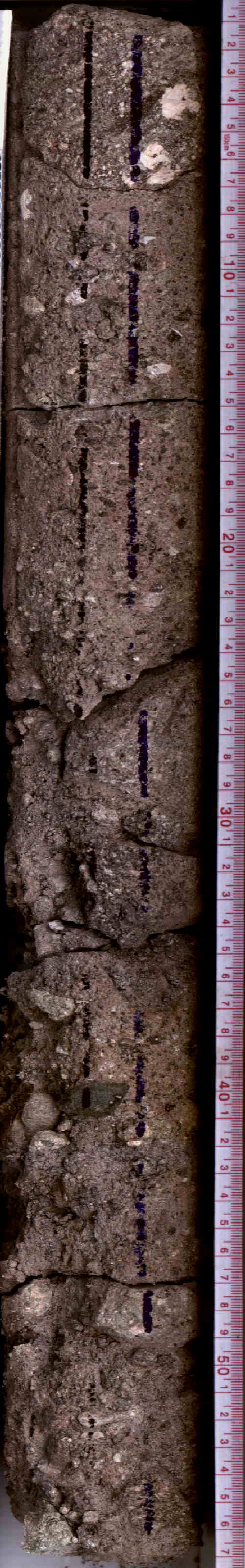

4	0,57	0,57	343,775	344,345	UR	no	343,775	106	2	M	BGRB5011RSPC001
5	0,34	0,34	344,345	344,685	UR	no	344,345	106	3	M	BGRB5011RSQC001

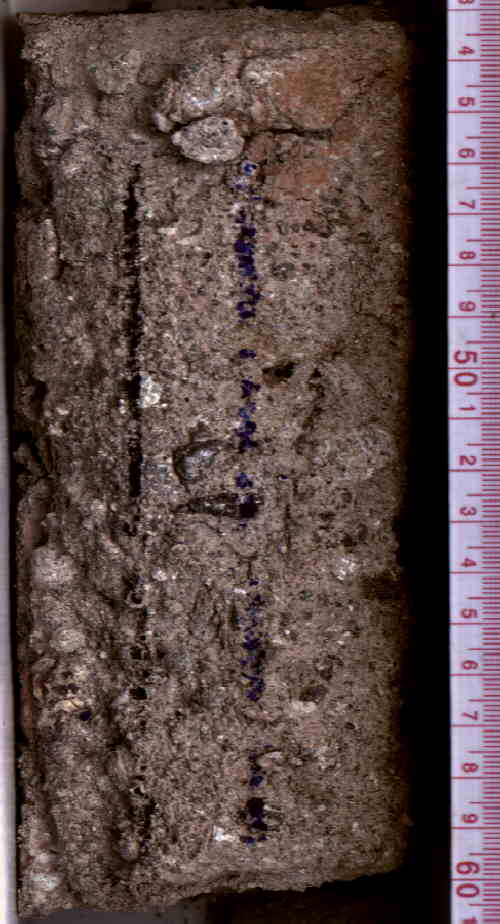

6	0,175	0,175	344,685	344,86	UR	no	344,685	106	3	M	BGRB5011RSRC001

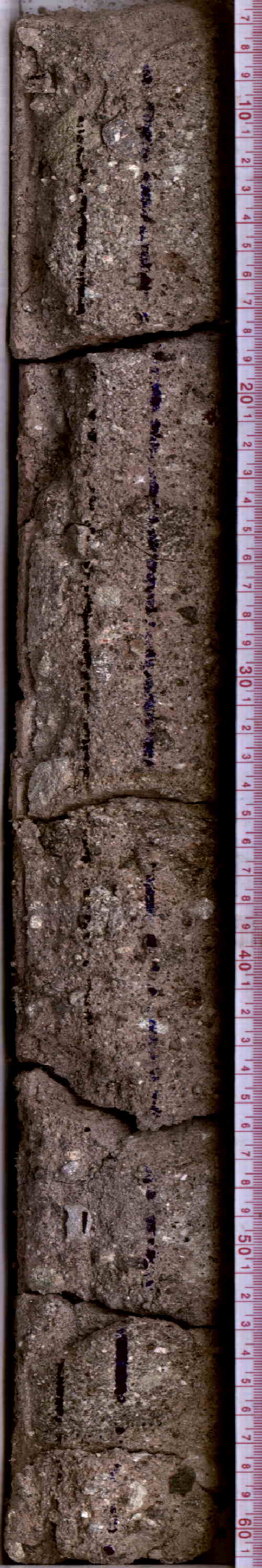

7	0,55	0,55	344,86	345,41	UR	no	344,86	106	4	M	BGRB5011RSSC001

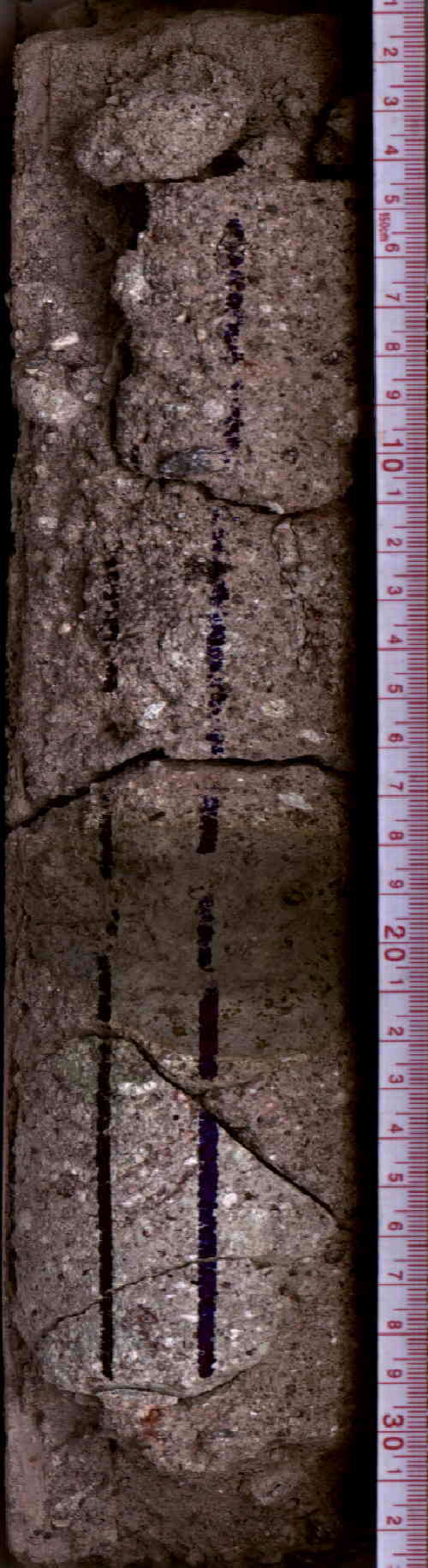

8	0,32	0,32	345,41	345,73	UR	no	345,41	106	5	M	BGRB5011RSTC001

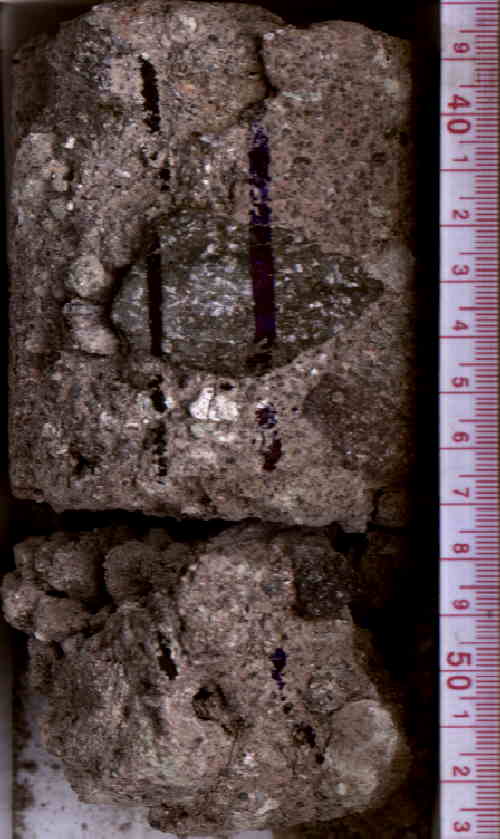

9	0,14	0,14	345,73	345,87	UR	yes	345,73	106	5	B	BGRB5011RSUC001

Measurements, descriptions and images:

Section	MSCL-Meas.	Spectro-Meas.	XRF-Light	XRF-Medium	XRF-Heavy	Section Desc.	VCD-File	Thin Sections	360° Scan	Slabbed Scan
1						X	X			X
2						X	X			X
3						X	X			X
4						X	X			X
5						X	X			X
6						X	X			X
7						X	X			X
8						X	X			X
9						X	X			X

Samples:

Section	Half	Type	Top (cm)	Bottom (cm)	Top Depth (m)	Top MCD (m)	Volume (cc)	Request	IGSN	Sample	Comments
1	W	---	5	10	342,68	342,68	65	MSP0001	BGRB5011RXQ4001	965	thin section /chemical analysis, destructive
1	W	---	14	16	342,77	342,77	65	MSP0002	BGRB5011RXE9001	1133	red breccia with cm clast
1	W	---	24	25	342,87	342,87	65	MSP0005	BGRB5011RXG0001	811	texture comparison with lake sediments, destructive
1	W	---	30	33	342,93	342,93	65	MSP0004	BGRB5011RXQ1001	857	half core for physical properties, sample will be drilled, but not destroyed
1	W	---	35	38	342,98	342,98	65	MSP0002	BGRB5011RXVE001	1330	clast of 'green' breccia
2	W	---	26	29	343,5	343,5	65	MSP0006	BGRB5011RX70001	802	XRD/SEM, destructive
4	W	---	3	5	343,805	343,805	65	MSP0002	BGRB5011RXF9001	1134	large clast of breccia containing melt clasts
4	W	---	35	47	344,125	344,125	65	MSP0001	BGRB5011RXR4001	966	thin section /chemical analysis, destructive, remains in storage (BGR)
7	W	---	30	40	345,16	345,16	65	MSP0001	BGRB5011RXS4001	967	thin section /chemical analysis, destructive
8	W	---	19	24	345,6	345,6	65	MSP0008	BGRB5011RXME001	1321	thin section, bulk chemistry, destructive
8	W	---	28	31	345,69	345,69	65	MSP0001	BGRB5011RXT4001	968	thin section /chemical analysis, destructive, remains in storage (BGR)
9	W	---	0	3	345,73	345,73	65	MSP0004	BGRB5011RXR1001	858	half core for physical properties, sample will be drilled, but not destroyed
9	W	---	10	14	345,83	345,83	65	MSP0002	BGRB5011RXWE001	1331	green clay clast + breccia clast in red sedimentary breccia
